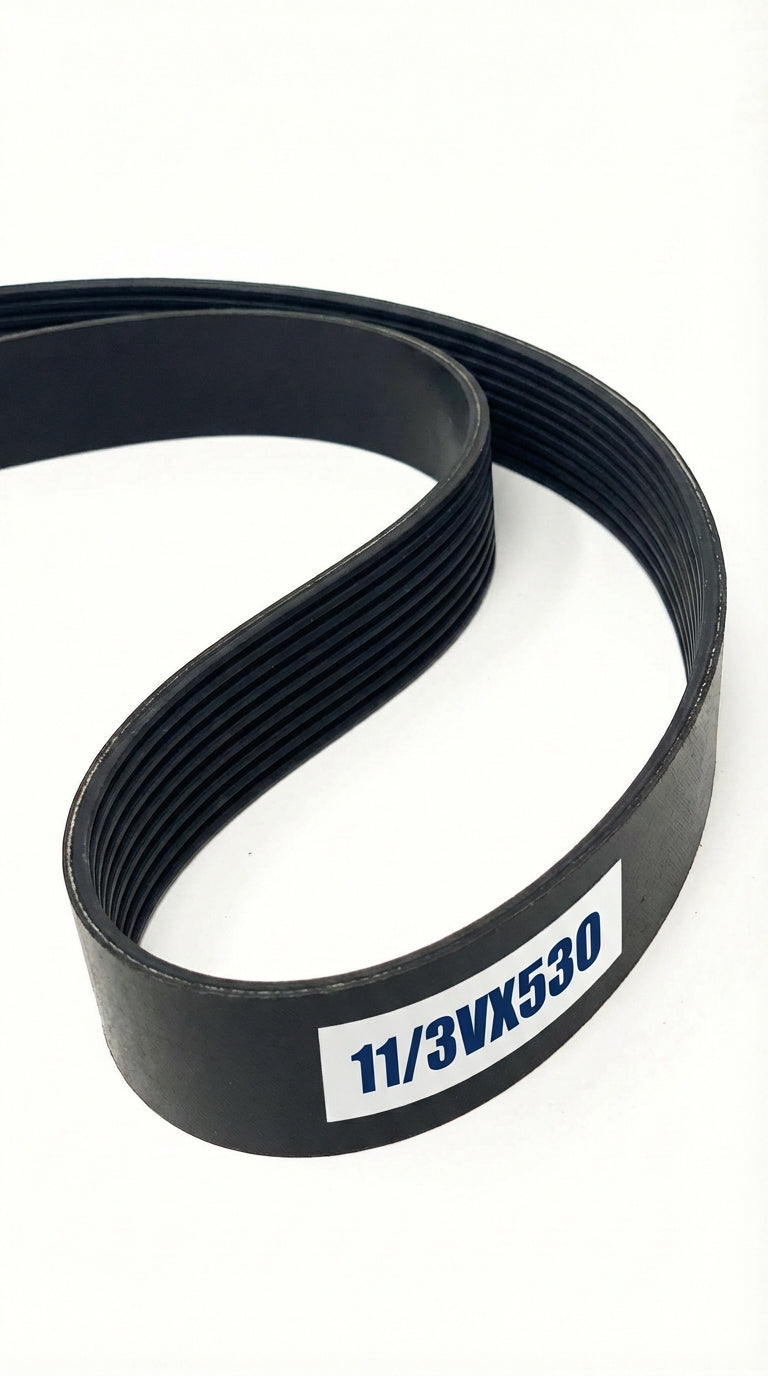

11/3VX530

Top Width: 4.425" (112.39mm)
Outside Length: 53.3" (1353.8mm)
Inside Length: 52.5" (1333.5mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 11-Band Set

The 11/3VX530 is a factory-joined 11-band 3VX banded belt assembly measuring 4.425" wide x 53.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225187

$116.29

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	11/3VX530
Top Width	4.425 in / 112.39 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	52.5 in / 1333.5 mm
Outside Length	53.3 in / 1353.8 mm
Effective Length	53.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	11
Cogged	Yes
