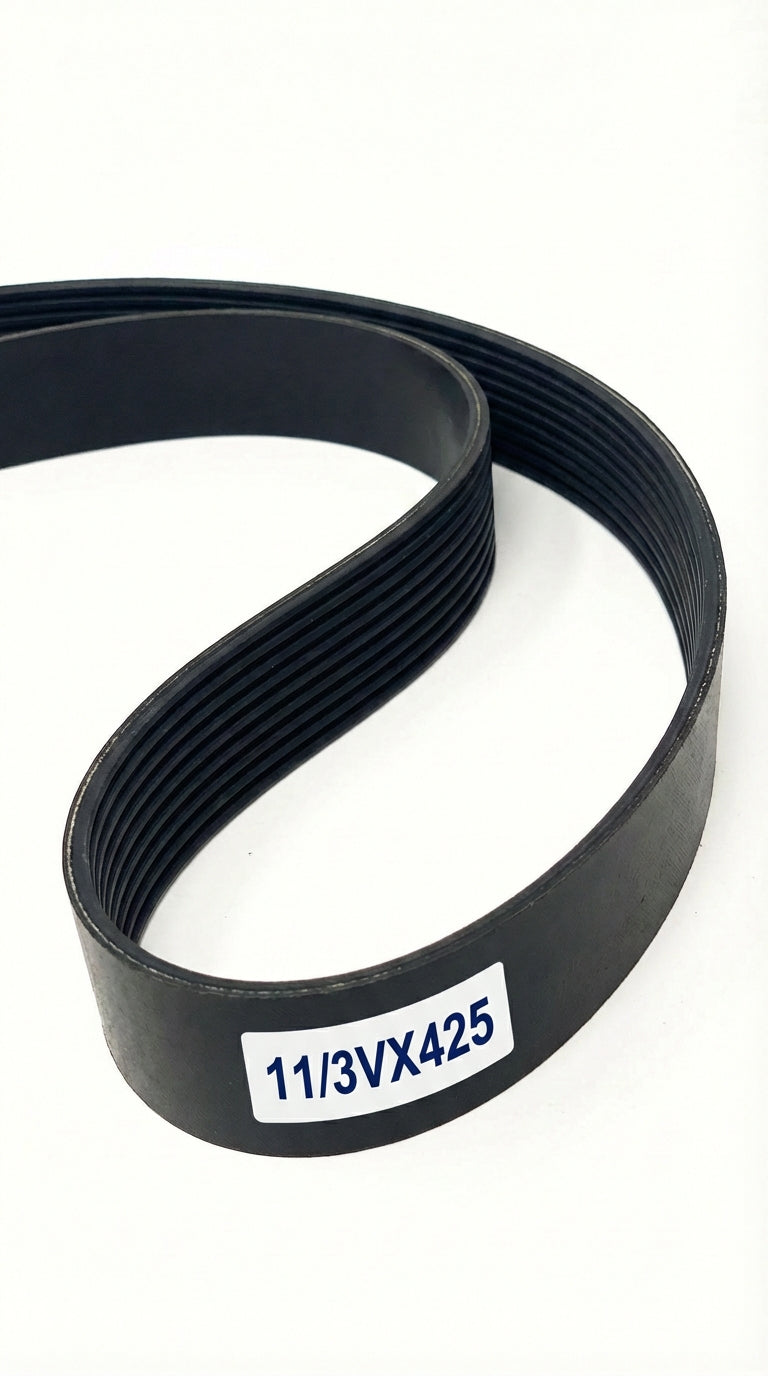

11/3VX425

Top Width: 4.425" (112.39mm)
Outside Length: 42.8" (1087.1mm)
Inside Length: 42" (1066.8mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 11-Band Set

The 11/3VX425 is a factory-joined 11-band 3VX banded belt assembly measuring 4.425" wide x 42.8" long, offering improved flexibility around smaller pulleys.

SKU: 1225183

$102.68

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	11/3VX425
Top Width	4.425 in / 112.39 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	42.0 in / 1066.8 mm
Outside Length	42.8 in / 1087.1 mm
Effective Length	42.5 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	11
Cogged	Yes
