9/3V750

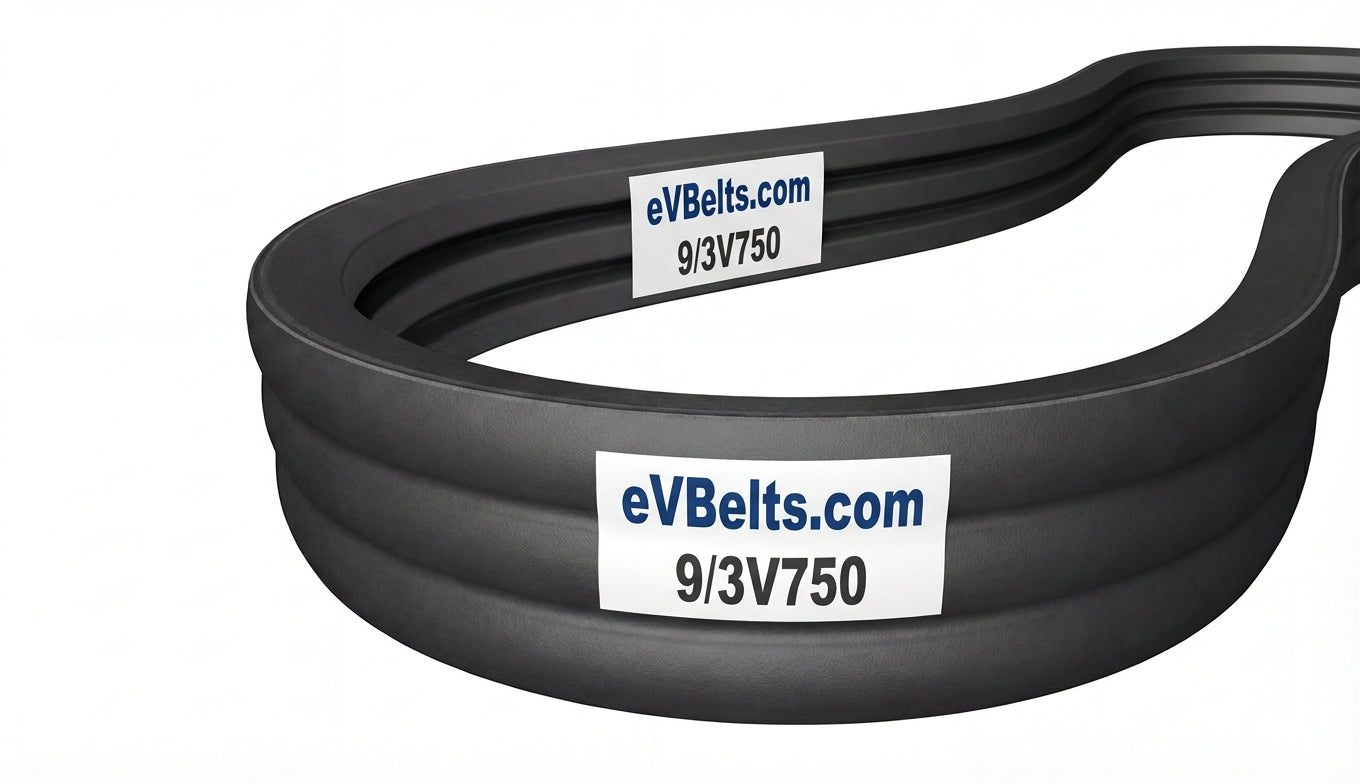

The 9/3V750 is a factory-joined 9-band 3V banded belt assembly measuring 3.615" wide x 75.3" long, featuring oil and heat resistant rubber construction.
SKU: 1224167
$124.01
12401
0 In Stock
Estimated delivery between June 23 and June 25.
Technical Specifications
| Part Number | 9/3V750 |
| Top Width | 3.615 in / 91.82 mm |
| Belt Depth | 0.3125 in / 7.94 mm |
| Inside Length | 74.5 in / 1892.3 mm |
| Outside Length | 75.3 in / 1912.6 mm |
| Effective Length | 75.0 in |
| Min Sheave Diameter | 2.65 in / 67.3 mm |
| Ribs | 9 |
