9/3V300

Top Width: 3.615" (91.82mm)
Outside Length: 30.3" (769.6mm)
Inside Length: 29.5" (749.3mm)
Min Pulley Diameter: 2.65"
Configuration: 9-Band Set

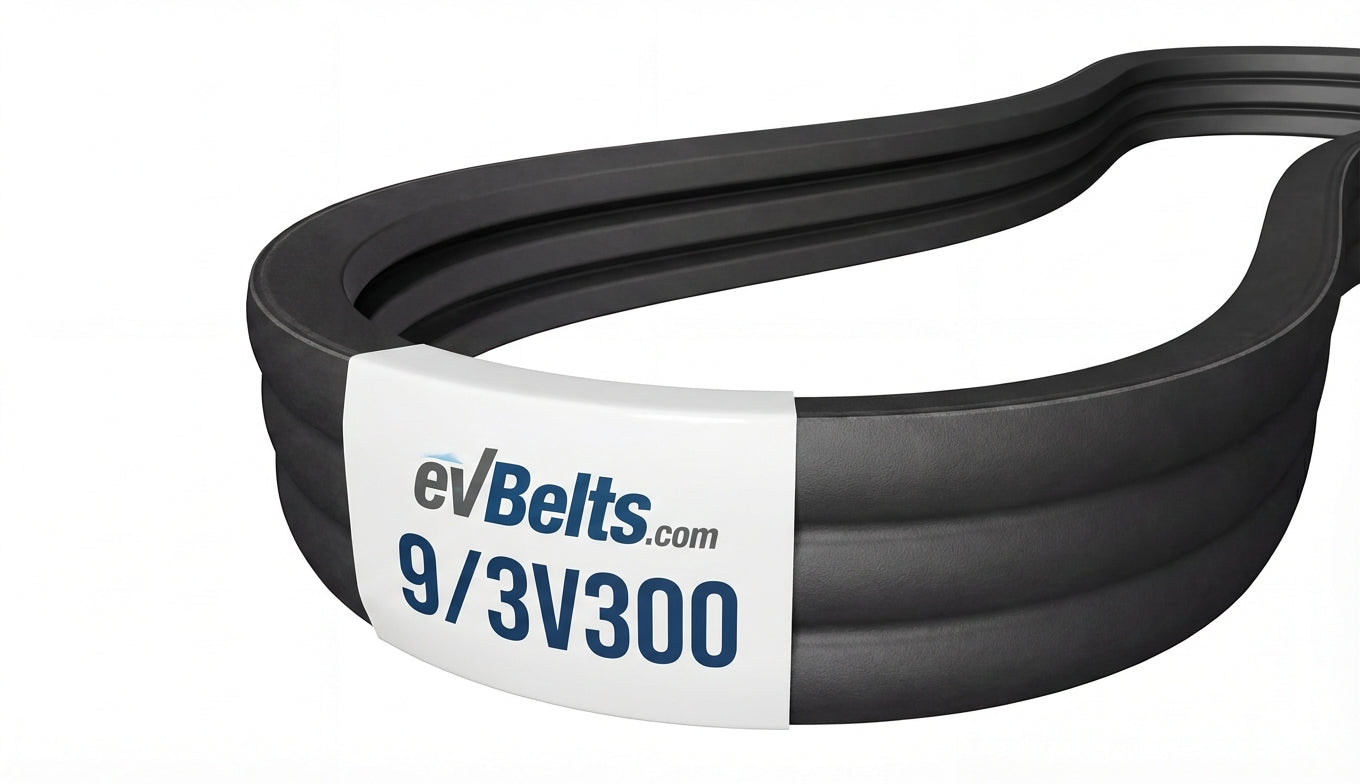

The 9/3V300 is a factory-joined 9-band 3V banded belt assembly measuring 3.615" wide x 30.3" long, featuring oil and heat resistant rubber construction.

SKU: 1224150

$66.80

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	9/3V300
Top Width	3.615 in / 91.82 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	29.5 in / 749.3 mm
Outside Length	30.3 in / 769.6 mm
Effective Length	30.0 in
Min Sheave Diameter	2.65 in / 67.3 mm
Ribs	9
