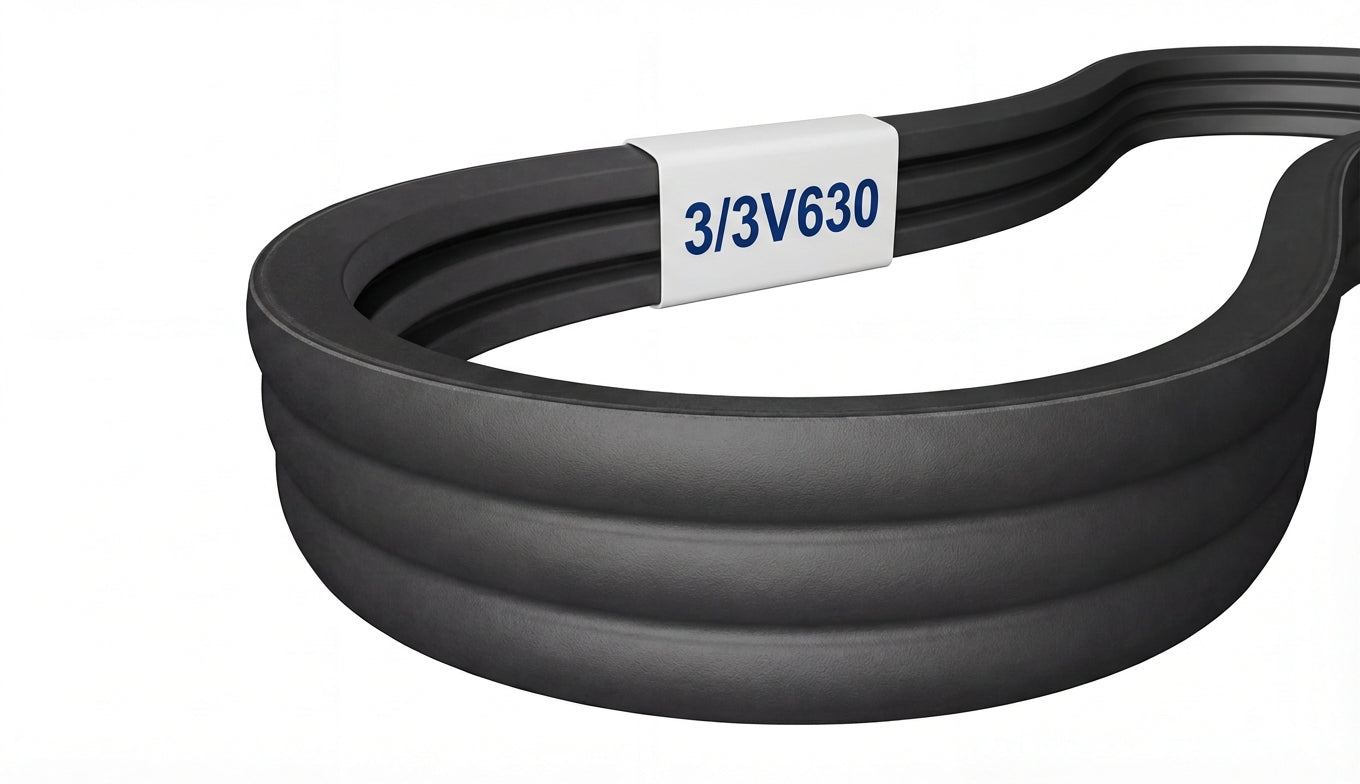

3/3V630

Top Width: 1.185" (30.1mm)
Outside Length: 63.3" (1607.8mm)
Inside Length: 62.5" (1587.5mm)
Min Pulley Diameter: 2.65"
Configuration: 3-Band Set

The 3/3V630 is a factory-joined 3-band 3V banded belt assembly measuring 1.185" wide x 63.3" long, featuring oil and heat resistant rubber construction.

SKU: 1223995

$28.16

45 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	3/3V630
Top Width	1.185 in / 30.1 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	62.5 in / 1587.5 mm
Outside Length	63.3 in / 1607.8 mm
Effective Length	63.0 in
Min Sheave Diameter	2.65 in / 67.3 mm
Ribs	3
