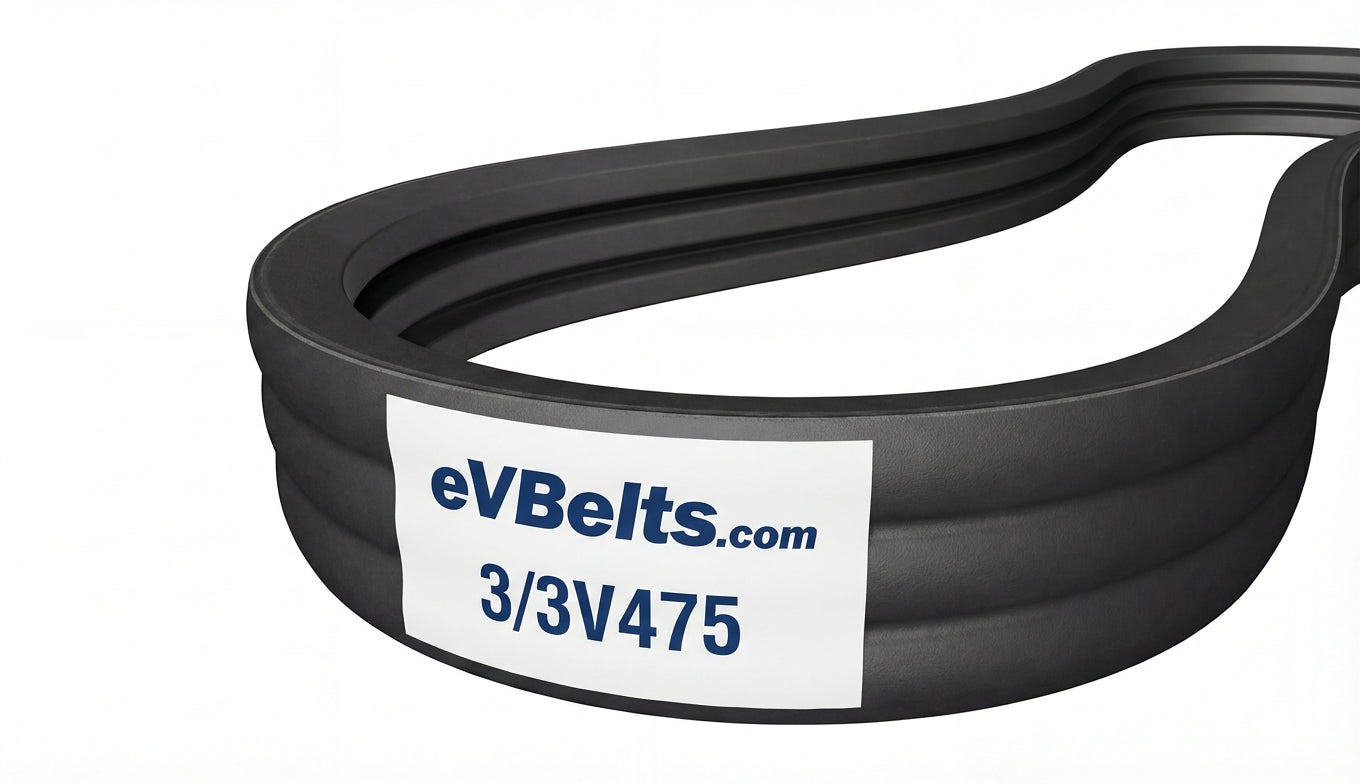

3/3V475

Top Width: 1.185" (30.1mm)
Outside Length: 47.8" (1214.1mm)
Inside Length: 47" (1193.8mm)
Min Pulley Diameter: 2.65"
Configuration: 3-Band Set

The 3/3V475 is a factory-joined 3-band 3V banded belt assembly measuring 1.185" wide x 47.8" long, featuring oil and heat resistant rubber construction.

SKU: 1223990

$22.97

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	3/3V475
Top Width	1.185 in / 30.1 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	47.0 in / 1193.8 mm
Outside Length	47.8 in / 1214.1 mm
Effective Length	47.5 in
Min Sheave Diameter	2.65 in / 67.3 mm
Ribs	3
