3/3V1000

Top Width: 1.185" (30.1mm)
Outside Length: 100.3" (2547.6mm)
Inside Length: 99.5" (2527.3mm)
Min Pulley Diameter: 2.65"
Configuration: 3-Band Set

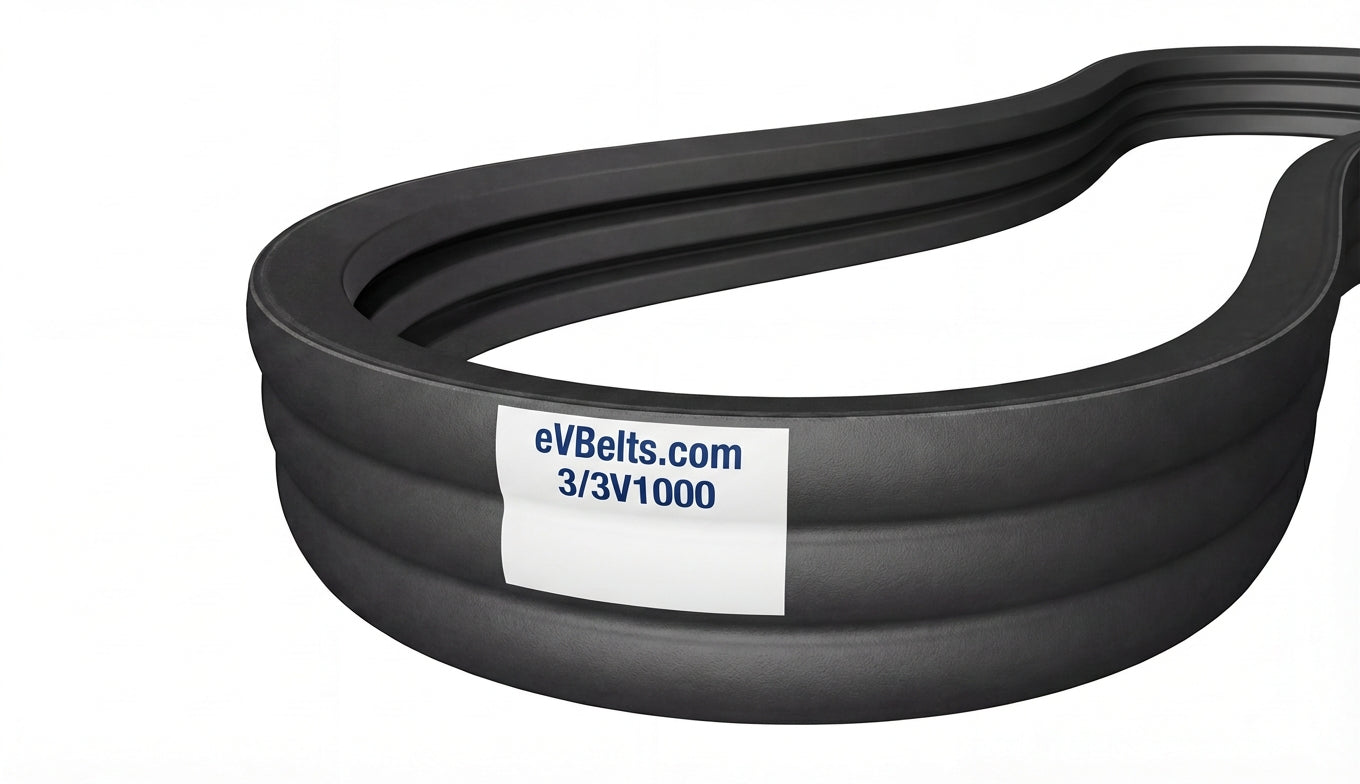

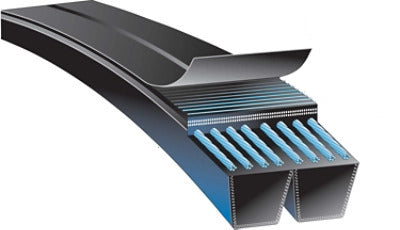

The 3/3V1000 is a factory-joined 3-band 3V banded belt assembly measuring 1.185" wide x 100.3" long, featuring oil and heat resistant rubber construction.

SKU: 1224003

$38.32

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	3/3V1000
Top Width	1.185 in / 30.1 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	99.5 in / 2527.3 mm
Outside Length	100.3 in / 2547.6 mm
Effective Length	100.0 in
Min Sheave Diameter	2.65 in / 67.3 mm
Ribs	3
