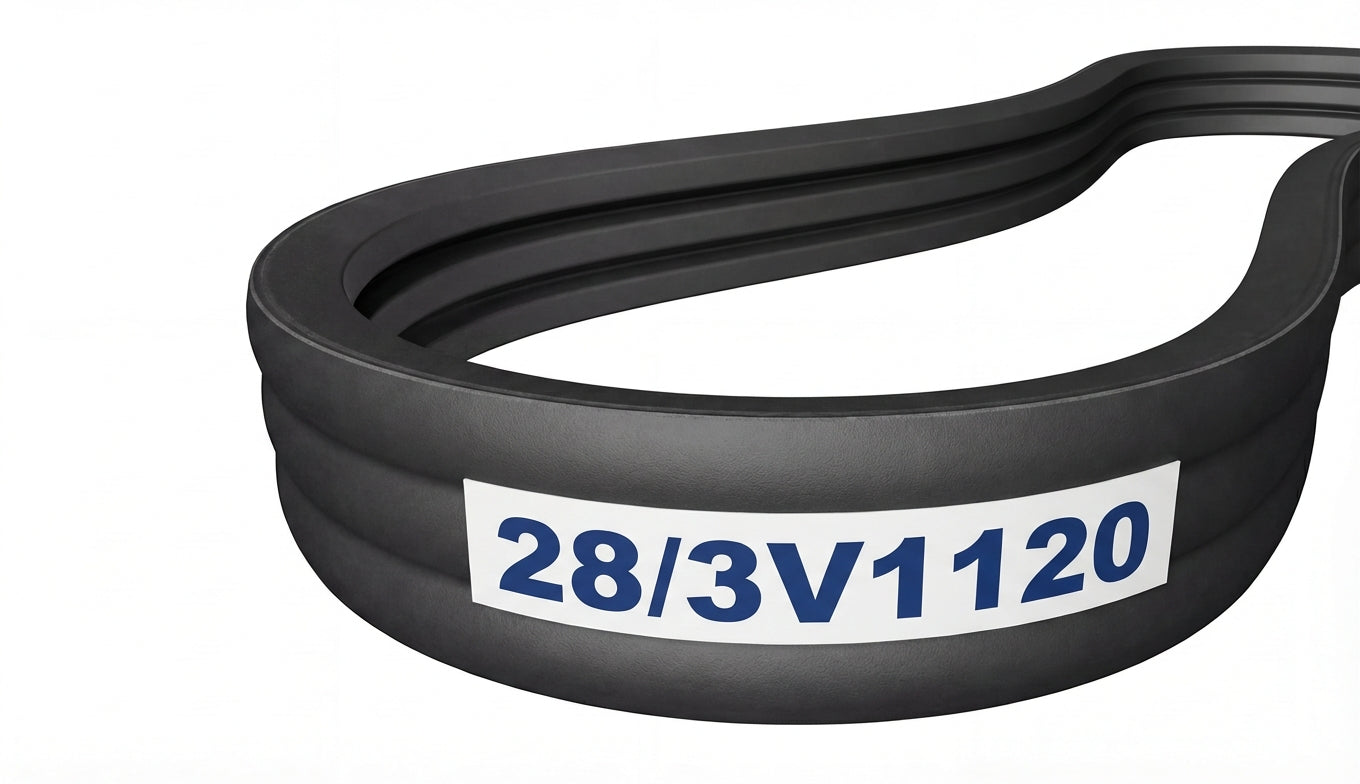

28/3V1120

Top Width: 11.31" (287.27mm)
Outside Length: 112.3" (2852.4mm)
Inside Length: 111.5" (2832.1mm)
Min Pulley Diameter: 2.65"
Configuration: 28-Band Set

The 28/3V1120 is a factory-joined 28-band 3V banded belt assembly measuring 11.31" wide x 112.3" long, featuring oil and heat resistant rubber construction.

SKU: 1223950

$602.27

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	28/3V1120
Top Width	11.31 in / 287.27 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	111.5 in / 2832.1 mm
Outside Length	112.3 in / 2852.4 mm
Effective Length	112.0 in
Min Sheave Diameter	2.65 in / 67.3 mm
Ribs	28
