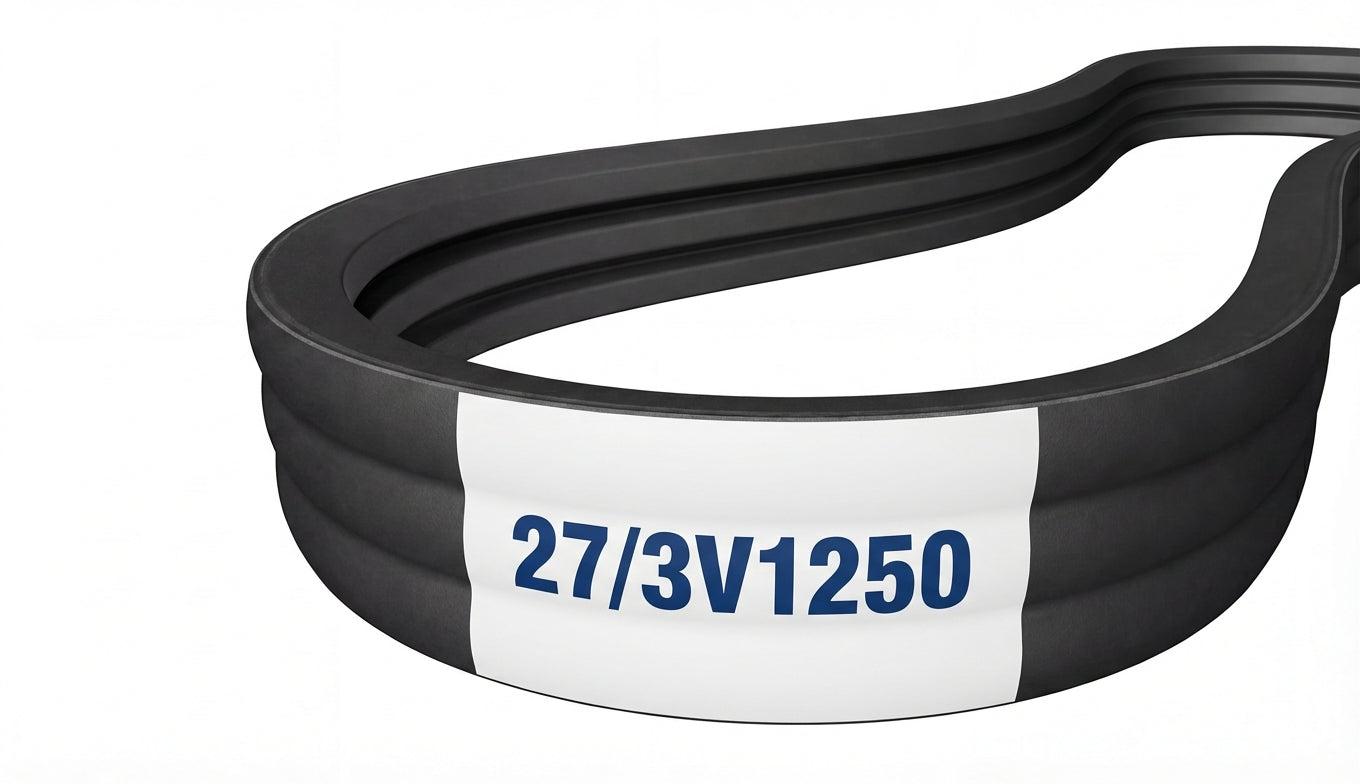

27/3V1250

Top Width: 10.905" (276.99mm)
Outside Length: 125.3" (3182.6mm)
Inside Length: 124.5" (3162.3mm)
Min Pulley Diameter: 2.65"
Configuration: 27-Band Set

The 27/3V1250 is a factory-joined 27-band 3V banded belt assembly measuring 10.905" wide x 125.3" long, featuring oil and heat resistant rubber construction.

SKU: 1223942

$661.12

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	27/3V1250
Top Width	10.905 in / 276.99 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	124.5 in / 3162.3 mm
Outside Length	125.3 in / 3182.6 mm
Effective Length	125.0 in
Min Sheave Diameter	2.65 in / 67.3 mm
Ribs	27
