25/3V900

Top Width: 10.095" (256.41mm)
Outside Length: 90.3" (2293.6mm)
Inside Length: 89.5" (2273.3mm)
Min Pulley Diameter: 2.65"
Configuration: 25-Band Set

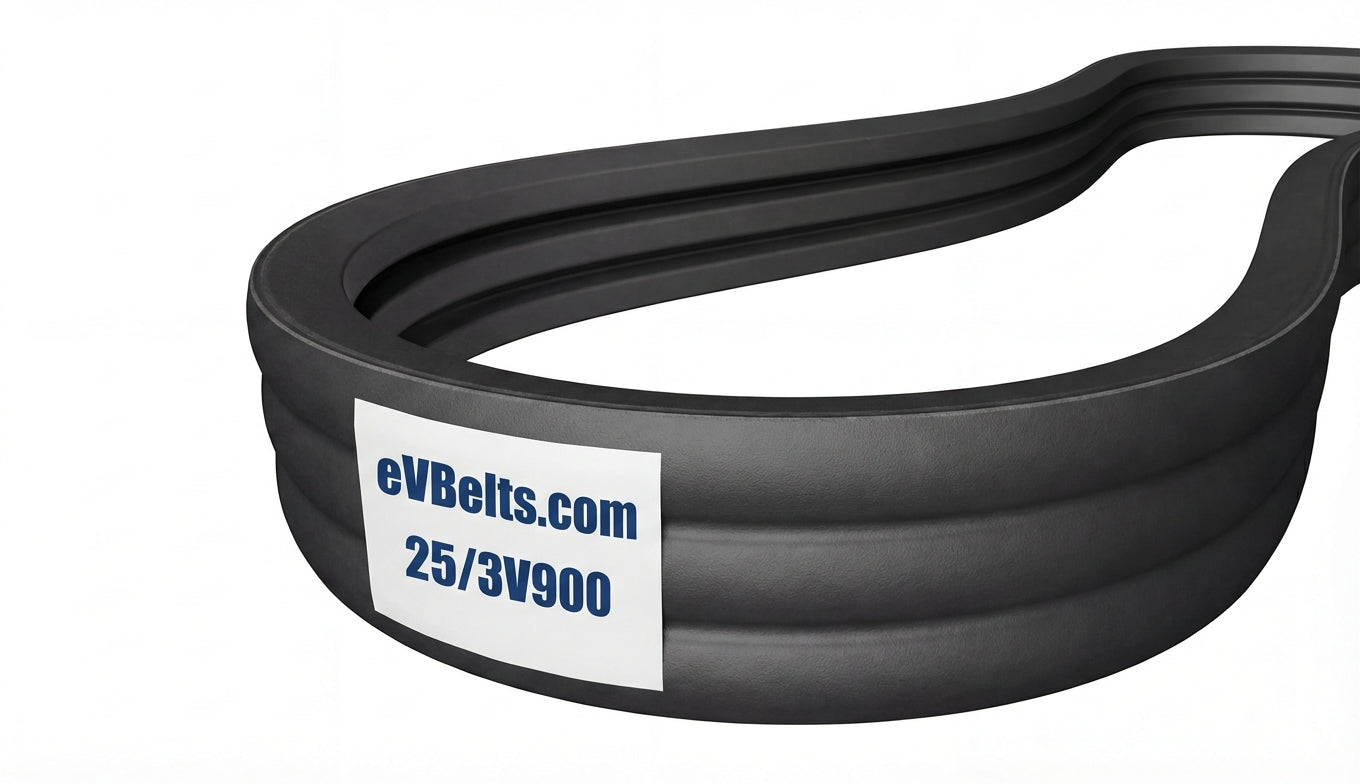

The 25/3V900 is a factory-joined 25-band 3V banded belt assembly measuring 10.095" wide x 90.3" long, featuring oil and heat resistant rubber construction.

SKU: 1223914

$433.46

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	25/3V900
Top Width	10.095 in / 256.41 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	89.5 in / 2273.3 mm
Outside Length	90.3 in / 2293.6 mm
Effective Length	90.0 in
Min Sheave Diameter	2.65 in / 67.3 mm
Ribs	25
