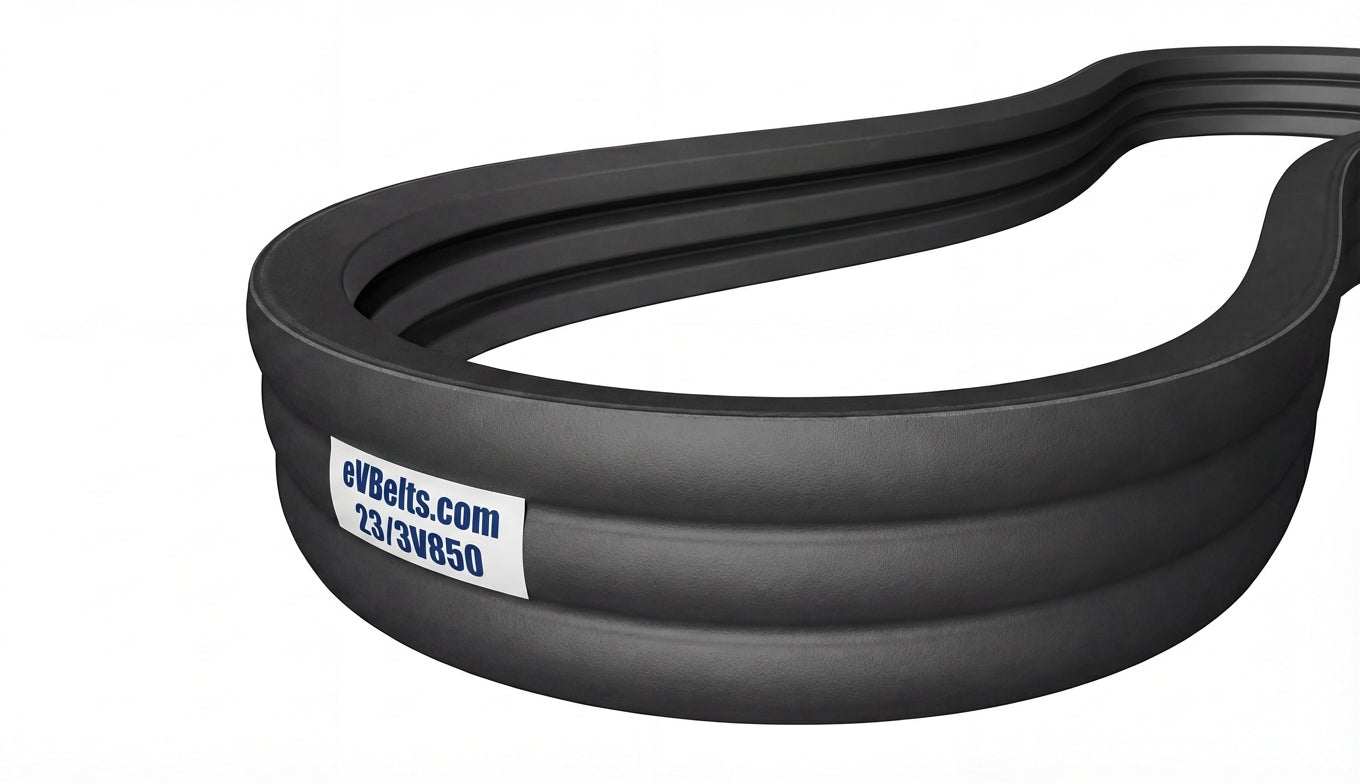

23/3V850

Top Width: 9.285" (235.84mm)
Outside Length: 85.3" (2166.6mm)
Inside Length: 84.5" (2146.3mm)
Min Pulley Diameter: 2.65"
Configuration: 23-Band Set

The 23/3V850 is a factory-joined 23-band 3V banded belt assembly measuring 9.285" wide x 85.3" long, featuring oil and heat resistant rubber construction.

SKU: 1223892

$358.04

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	23/3V850
Top Width	9.285 in / 235.84 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	84.5 in / 2146.3 mm
Outside Length	85.3 in / 2166.6 mm
Effective Length	85.0 in
Min Sheave Diameter	2.65 in / 67.3 mm
Ribs	23
