23/3V1180

Top Width: 9.285" (235.84mm)
Outside Length: 118.3" (3004.8mm)
Inside Length: 117.5" (2984.5mm)
Min Pulley Diameter: 2.65"
Configuration: 23-Band Set

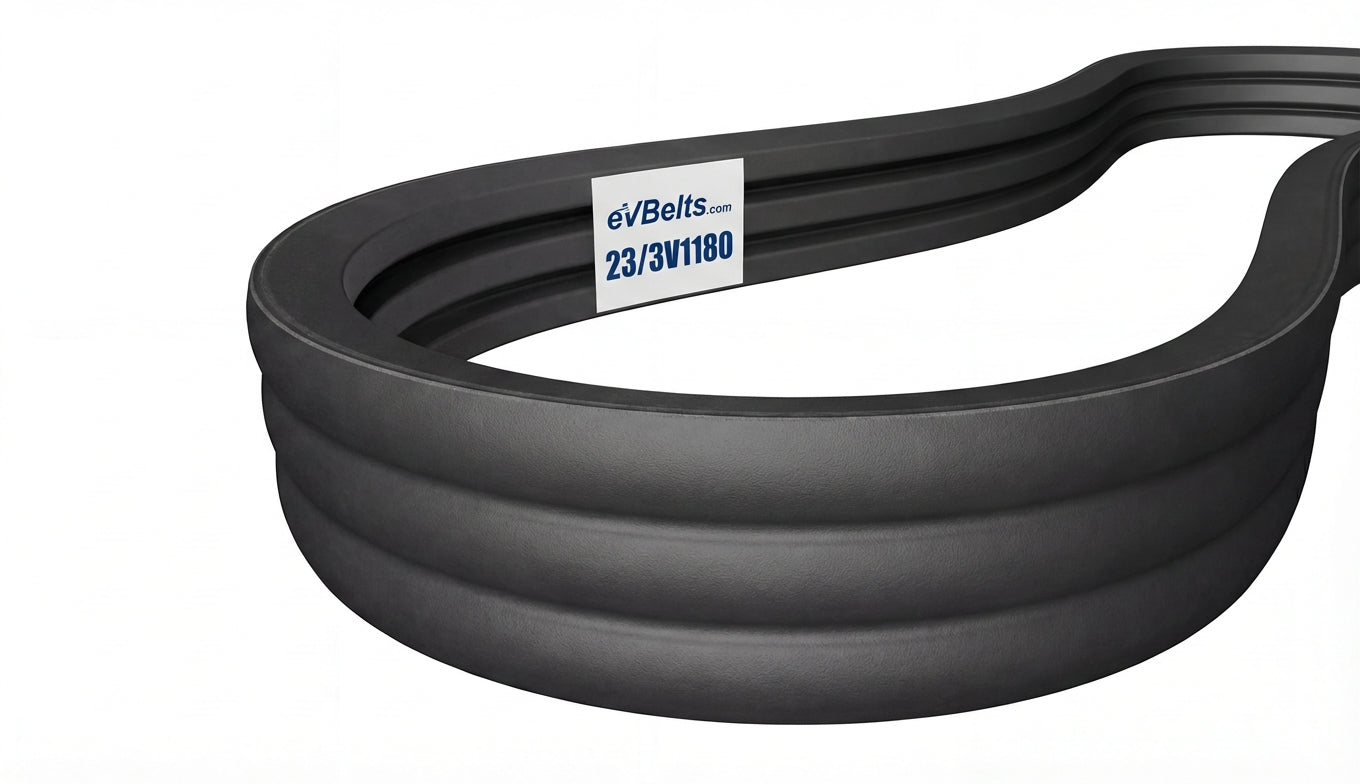

The 23/3V1180 is a factory-joined 23-band 3V banded belt assembly measuring 9.285" wide x 118.3" long, featuring oil and heat resistant rubber construction.

SKU: 1223898

$526.92

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	23/3V1180
Top Width	9.285 in / 235.84 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	117.5 in / 2984.5 mm
Outside Length	118.3 in / 3004.8 mm
Effective Length	118.0 in
Min Sheave Diameter	2.65 in / 67.3 mm
Ribs	23
