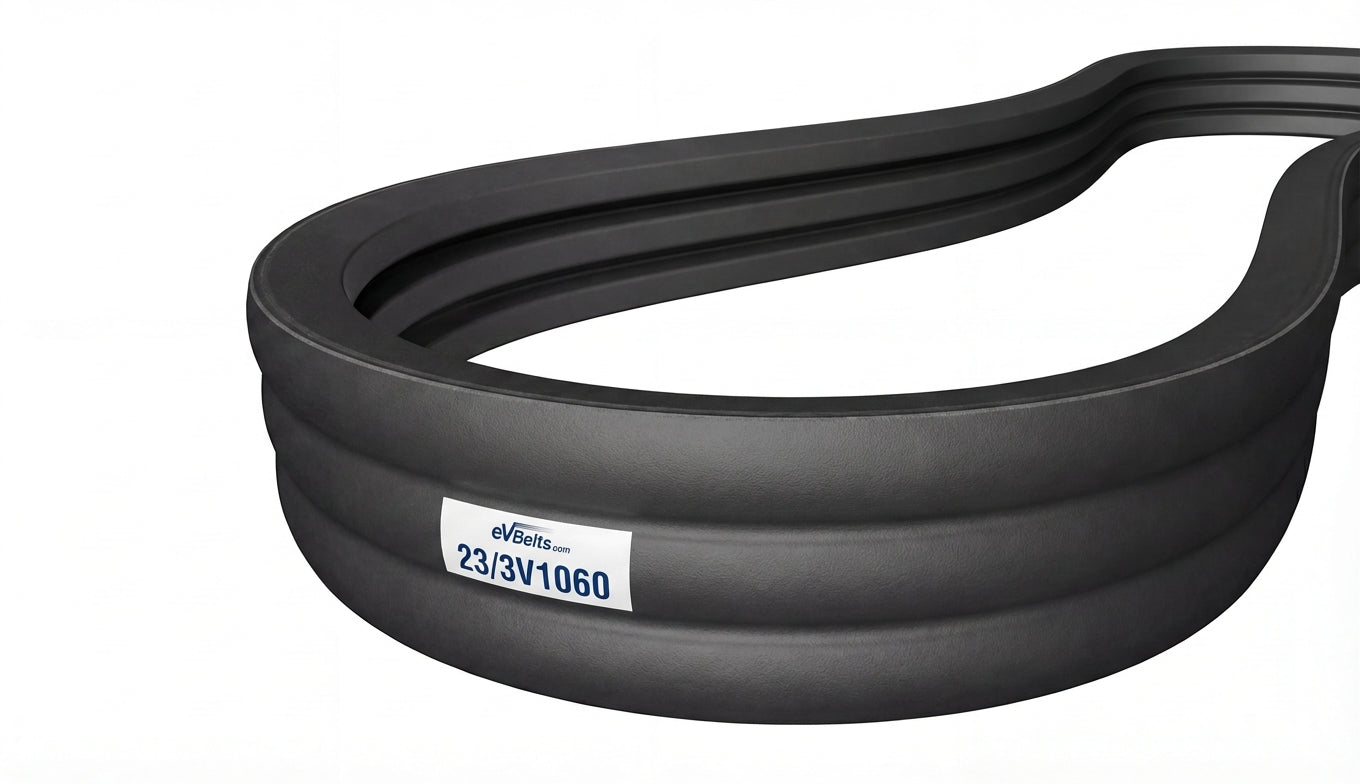

23/3V1060

Top Width: 9.285" (235.84mm)
Outside Length: 106.3" (2700mm)
Inside Length: 105.5" (2679.7mm)
Min Pulley Diameter: 2.65"
Configuration: 23-Band Set

The 23/3V1060 is a factory-joined 23-band 3V banded belt assembly measuring 9.285" wide x 106.3" long, featuring oil and heat resistant rubber construction.

SKU: 1223896

$454.59

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	23/3V1060
Top Width	9.285 in / 235.84 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	105.5 in / 2679.7 mm
Outside Length	106.3 in / 2700.0 mm
Effective Length	106.0 in
Min Sheave Diameter	2.65 in / 67.3 mm
Ribs	23
