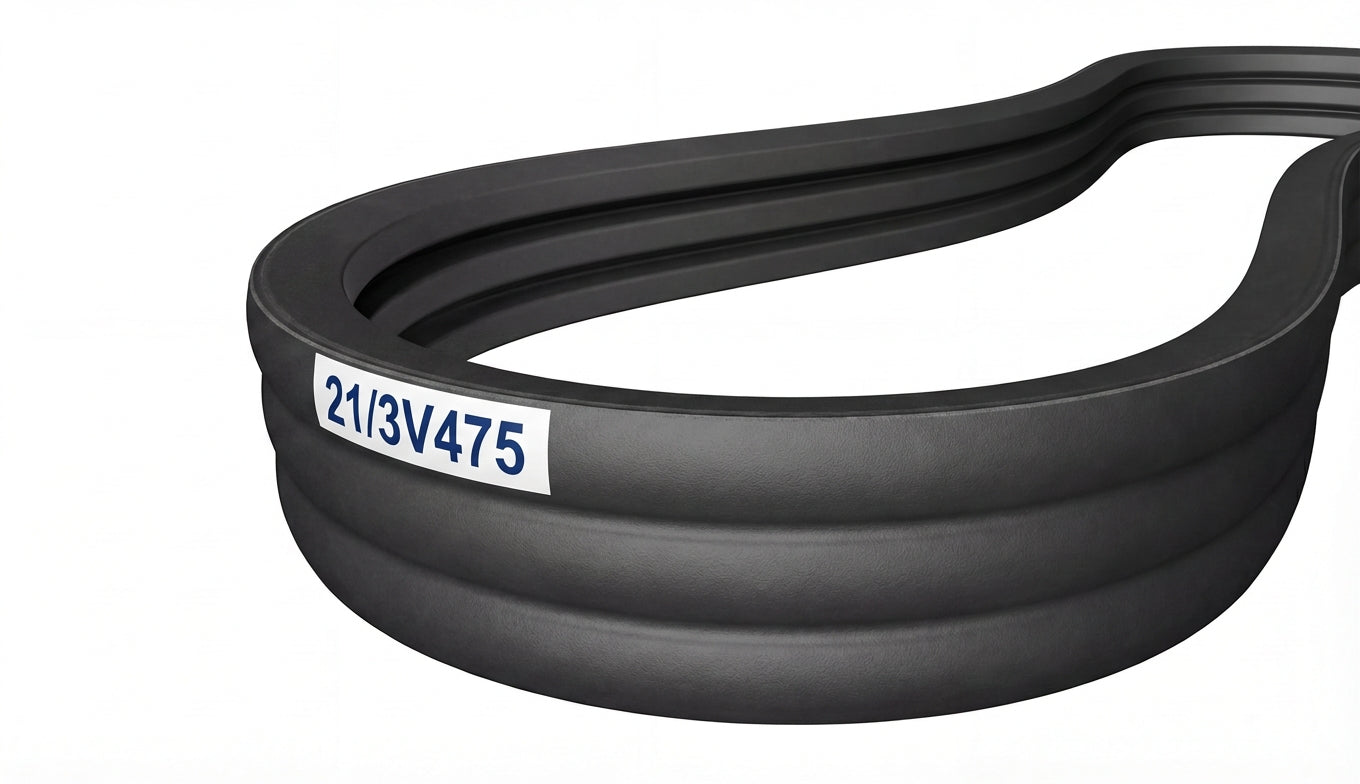

21/3V475
The 21/3V475 is a factory-joined 21-band 3V banded belt assembly measuring 8.475" wide x 47.8" long, featuring oil and heat resistant rubber construction.
SKU: 1223837
$209.35
20935
0 In Stock
Estimated delivery between June 23 and June 25.
Technical Specifications
| Part Number | 21/3V475 |
| Top Width | 8.475 in / 215.26 mm |
| Belt Depth | 0.3125 in / 7.94 mm |
| Inside Length | 47.0 in / 1193.8 mm |
| Outside Length | 47.8 in / 1214.1 mm |
| Effective Length | 47.5 in |
| Min Sheave Diameter | 2.65 in / 67.3 mm |
| Ribs | 21 |
