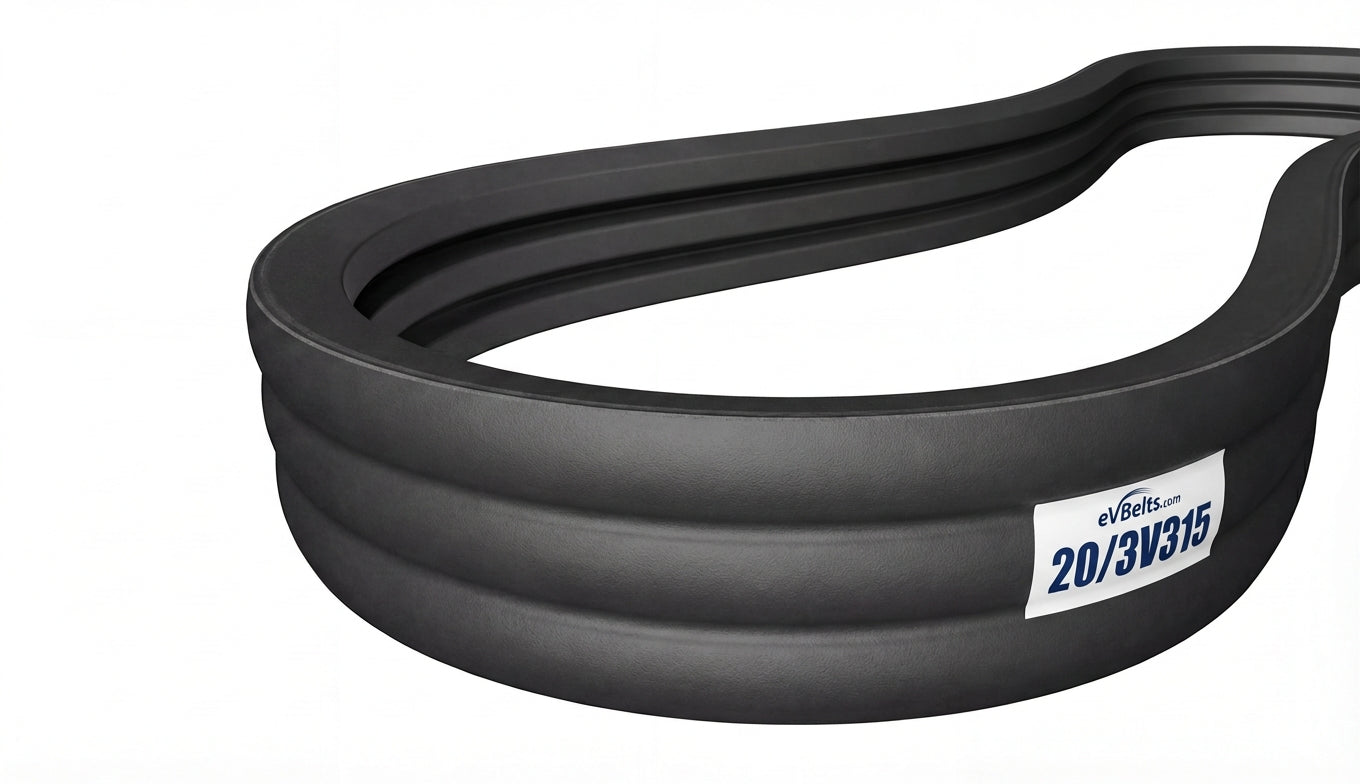

20/3V315

Top Width: 8.07" (204.98mm)
Outside Length: 31.8" (807.7mm)
Inside Length: 31" (787.4mm)
Min Pulley Diameter: 2.65"
Configuration: 20-Band Set

The 20/3V315 is a factory-joined 20-band 3V banded belt assembly measuring 8.07" wide x 31.8" long, featuring oil and heat resistant rubber construction.

SKU: 1223780

$153.94

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	20/3V315
Top Width	8.07 in / 204.98 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	31.0 in / 787.4 mm
Outside Length	31.8 in / 807.7 mm
Effective Length	31.5 in
Min Sheave Diameter	2.65 in / 67.3 mm
Ribs	20
