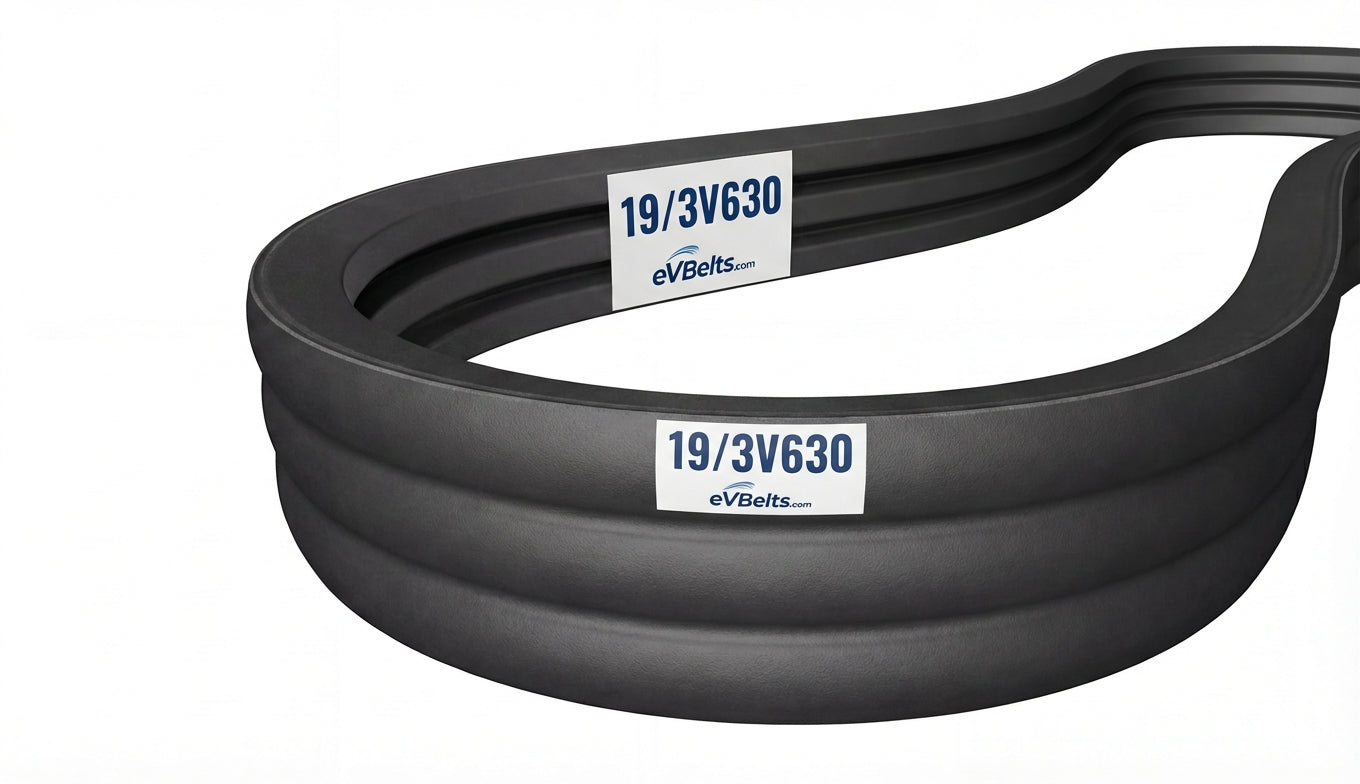

19/3V630

Top Width: 7.665" (194.69mm)
Outside Length: 63.3" (1607.8mm)
Inside Length: 62.5" (1587.5mm)
Min Pulley Diameter: 2.65"
Configuration: 19-Band Set

The 19/3V630 is a factory-joined 19-band 3V banded belt assembly measuring 7.665" wide x 63.3" long, featuring oil and heat resistant rubber construction.

SKU: 1223764

$222.64

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	19/3V630
Top Width	7.665 in / 194.69 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	62.5 in / 1587.5 mm
Outside Length	63.3 in / 1607.8 mm
Effective Length	63.0 in
Min Sheave Diameter	2.65 in / 67.3 mm
Ribs	19
