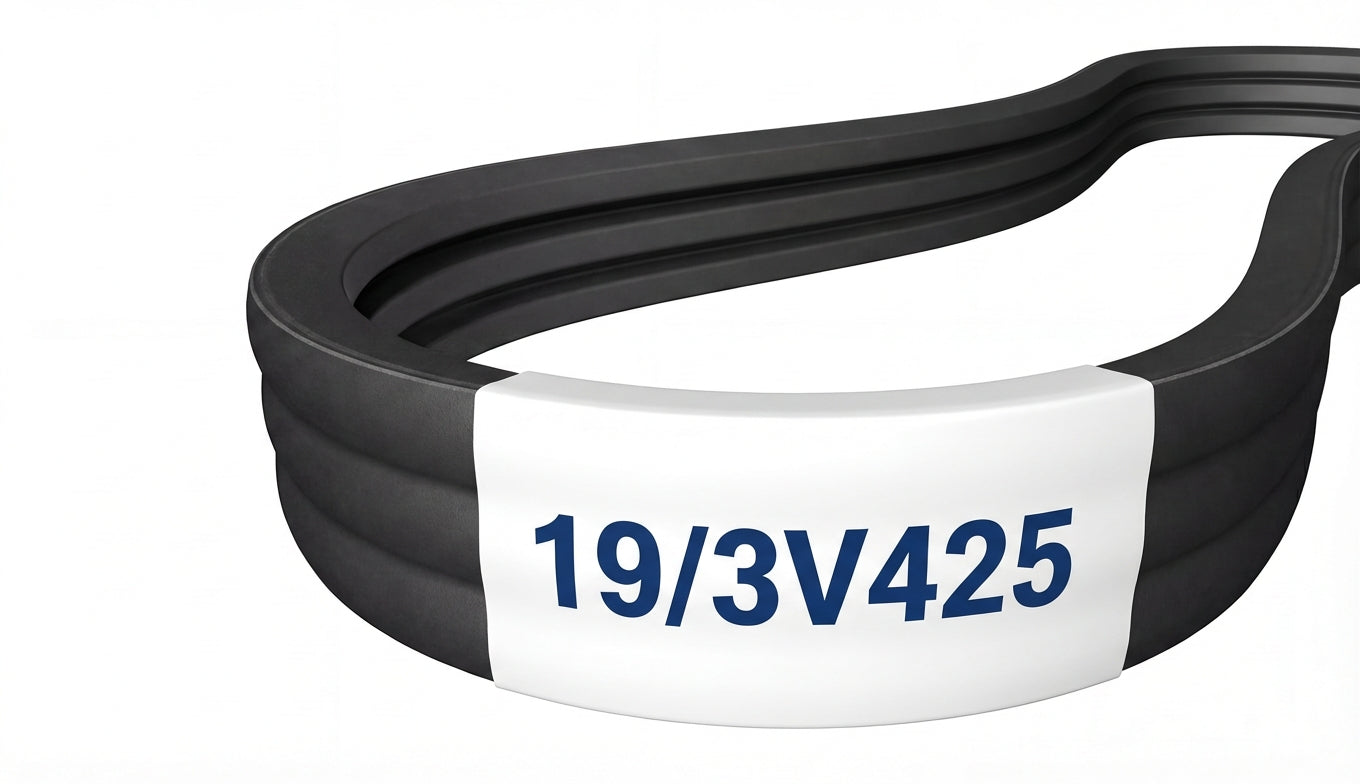

19/3V425

Top Width: 7.665" (194.69mm)
Outside Length: 42.8" (1087.1mm)
Inside Length: 42" (1066.8mm)
Min Pulley Diameter: 2.65"
Configuration: 19-Band Set

The 19/3V425 is a factory-joined 19-band 3V banded belt assembly measuring 7.665" wide x 42.8" long, featuring oil and heat resistant rubber construction.

SKU: 1223756

$87.31

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	19/3V425
Top Width	7.665 in / 194.69 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	42.0 in / 1066.8 mm
Outside Length	42.8 in / 1087.1 mm
Effective Length	42.5 in
Min Sheave Diameter	2.65 in / 67.3 mm
Ribs	19
