16/3V800

Top Width: 6.45" (163.83mm)
Outside Length: 80.3" (2039.6mm)
Inside Length: 79.5" (2019.3mm)
Min Pulley Diameter: 2.65"
Configuration: 16-Band Set

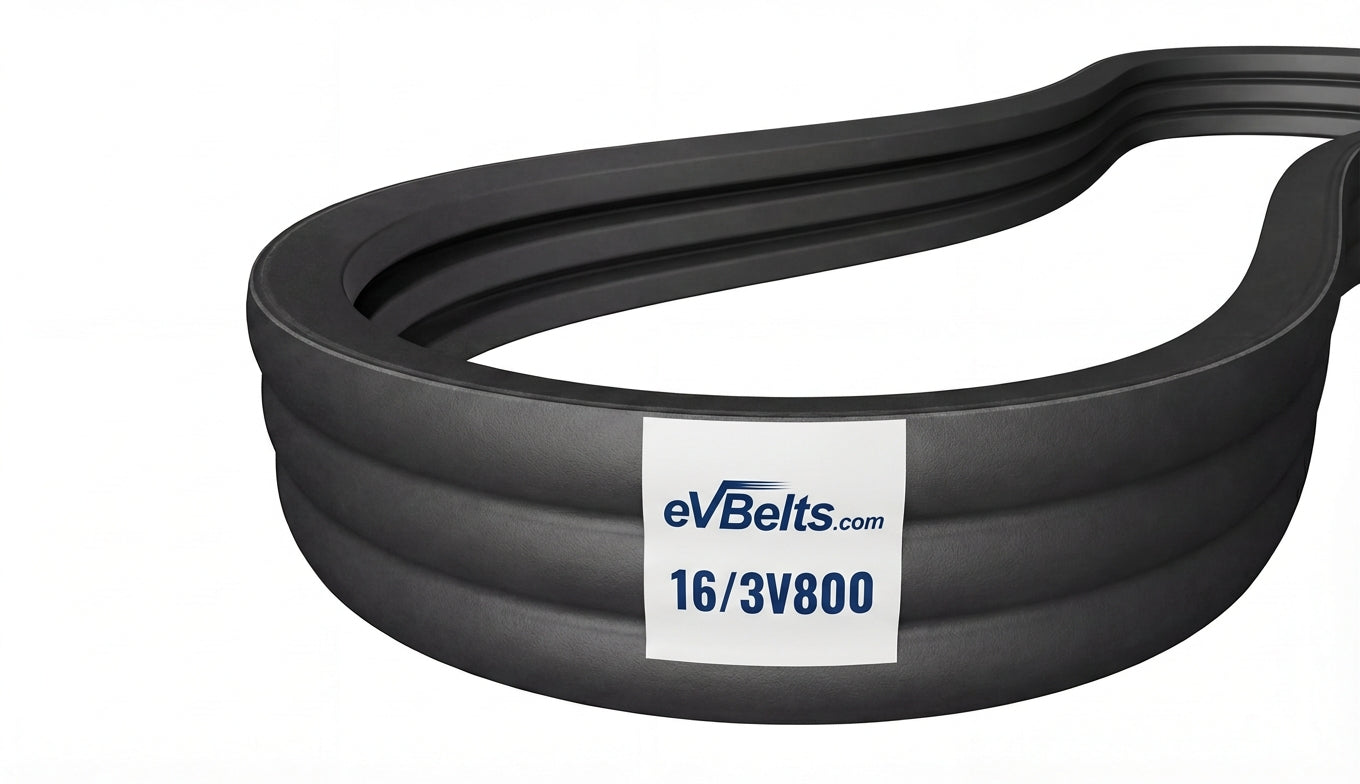

The 16/3V800 is a factory-joined 16-band 3V banded belt assembly measuring 6.45" wide x 80.3" long, featuring oil and heat resistant rubber construction.

SKU: 1223684

$232.28

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	16/3V800
Top Width	6.45 in / 163.83 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	79.5 in / 2019.3 mm
Outside Length	80.3 in / 2039.6 mm
Effective Length	80.0 in
Min Sheave Diameter	2.65 in / 67.3 mm
Ribs	16
