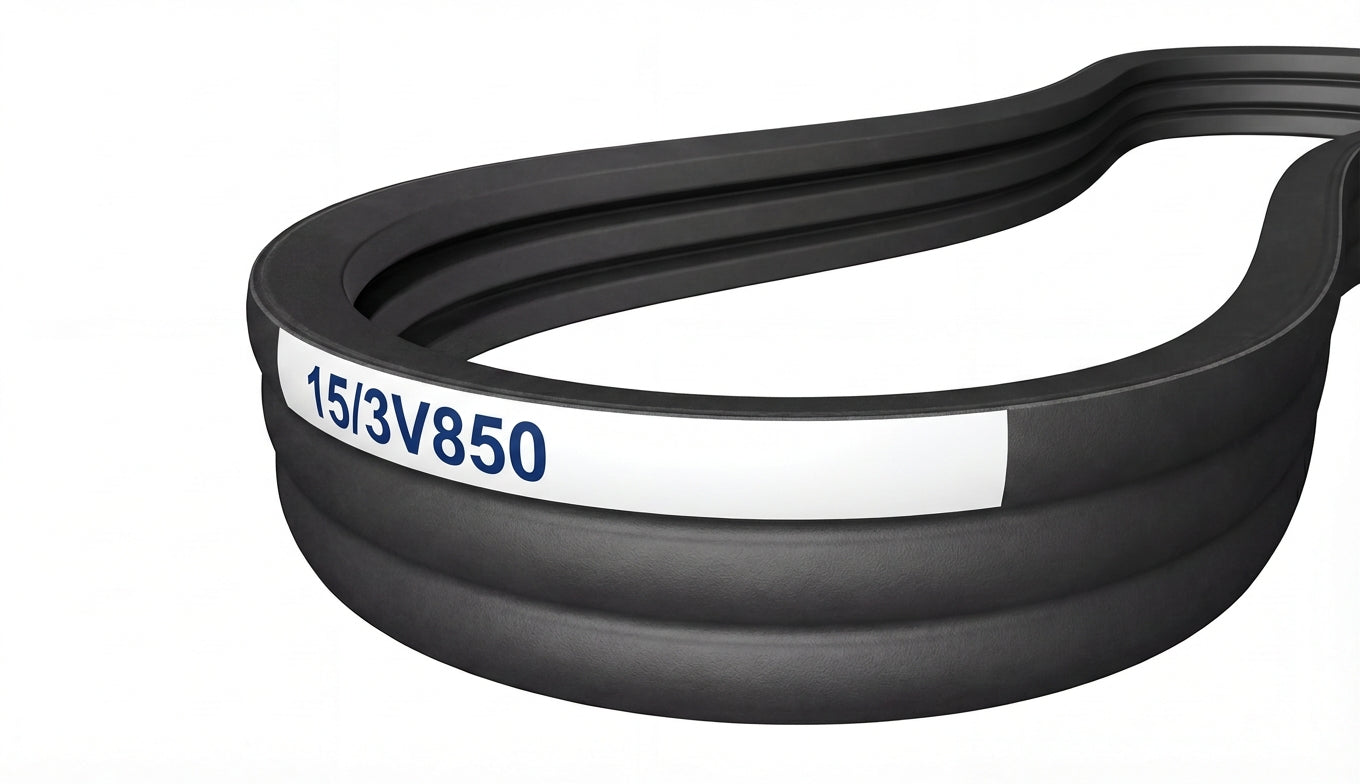

15/3V850
The 15/3V850 is a factory-joined 15-band 3V banded belt assembly measuring 6.045" wide x 85.3" long, featuring oil and heat resistant rubber construction.
SKU: 1223657
$233.50
23350
0 In Stock
Estimated delivery between June 22 and June 24.
Technical Specifications
| Part Number | 15/3V850 |
| Top Width | 6.045 in / 153.54 mm |
| Belt Depth | 0.3125 in / 7.94 mm |
| Inside Length | 84.5 in / 2146.3 mm |
| Outside Length | 85.3 in / 2166.6 mm |
| Effective Length | 85.0 in |
| Min Sheave Diameter | 2.65 in / 67.3 mm |
| Ribs | 15 |
