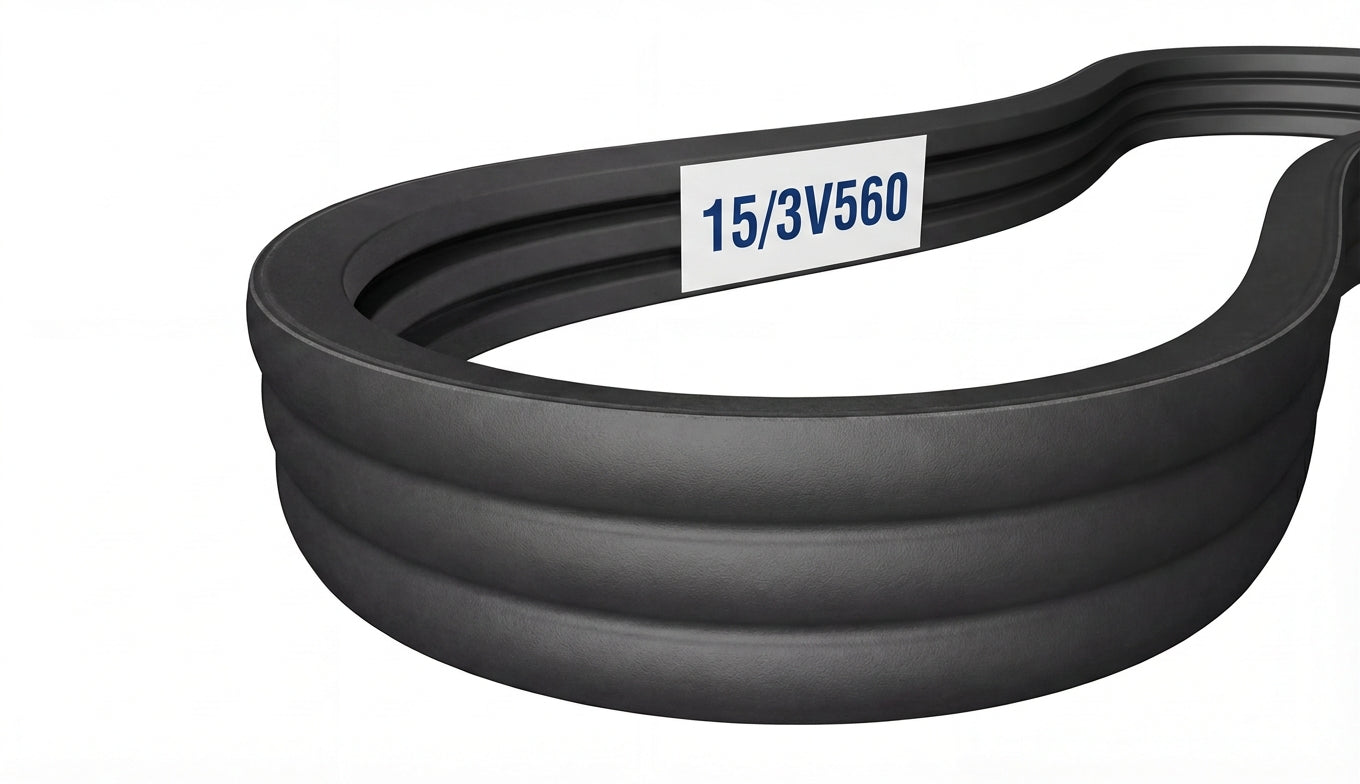

15/3V560

Top Width: 6.045" (153.54mm)
Outside Length: 56.3" (1430mm)
Inside Length: 55.5" (1409.7mm)
Min Pulley Diameter: 2.65"
Configuration: 15-Band Set

The 15/3V560 is a factory-joined 15-band 3V banded belt assembly measuring 6.045" wide x 56.3" long, featuring oil and heat resistant rubber construction.

SKU: 1223651

$162.62

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	15/3V560
Top Width	6.045 in / 153.54 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	55.5 in / 1409.7 mm
Outside Length	56.3 in / 1430.0 mm
Effective Length	56.0 in
Min Sheave Diameter	2.65 in / 67.3 mm
Ribs	15
