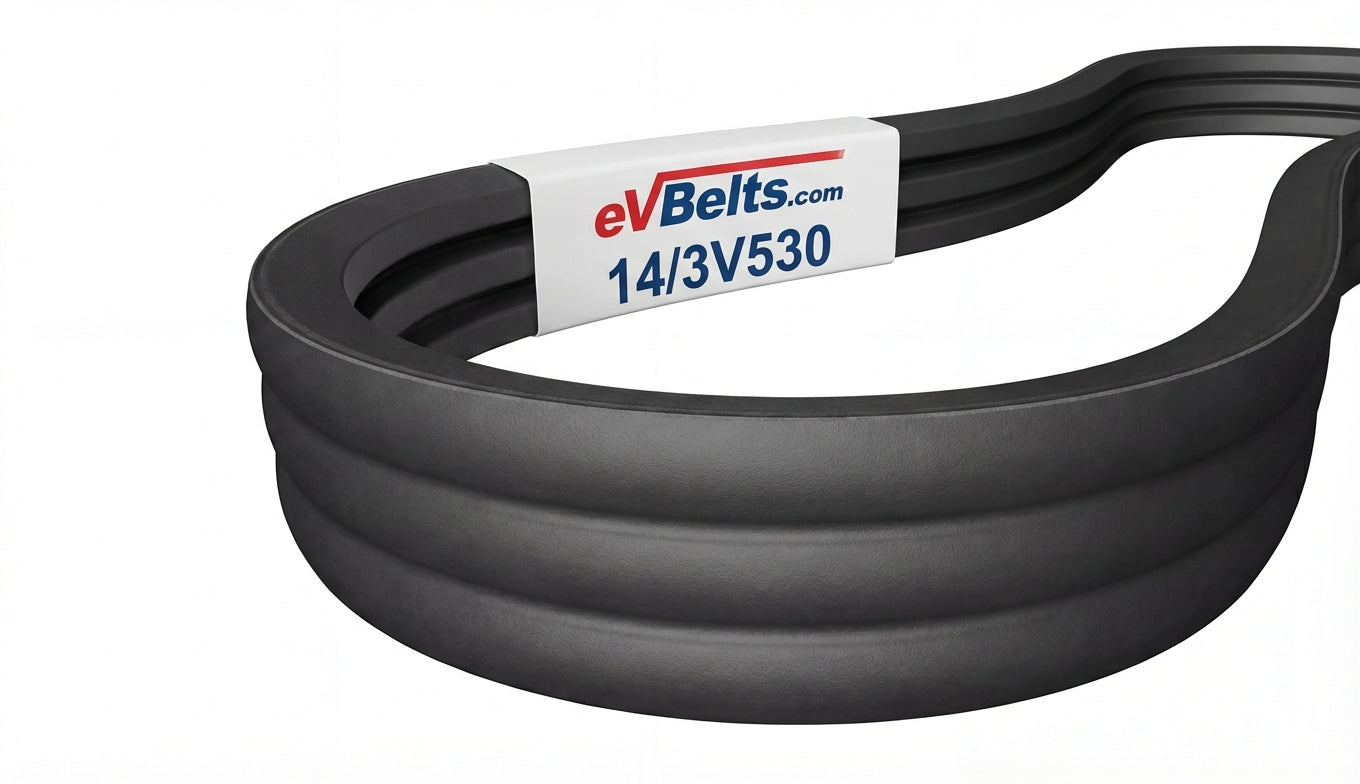

14/3V530

Top Width: 5.64" (143.26mm)
Outside Length: 53.3" (1353.8mm)
Inside Length: 52.5" (1333.5mm)
Min Pulley Diameter: 2.65"
Configuration: 14-Band Set

The 14/3V530 is a factory-joined 14-band 3V banded belt assembly measuring 5.64" wide x 53.3" long, featuring oil and heat resistant rubber construction.

SKU: 1223621

$146.82

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	14/3V530
Top Width	5.64 in / 143.26 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	52.5 in / 1333.5 mm
Outside Length	53.3 in / 1353.8 mm
Effective Length	53.0 in
Min Sheave Diameter	2.65 in / 67.3 mm
Ribs	14
