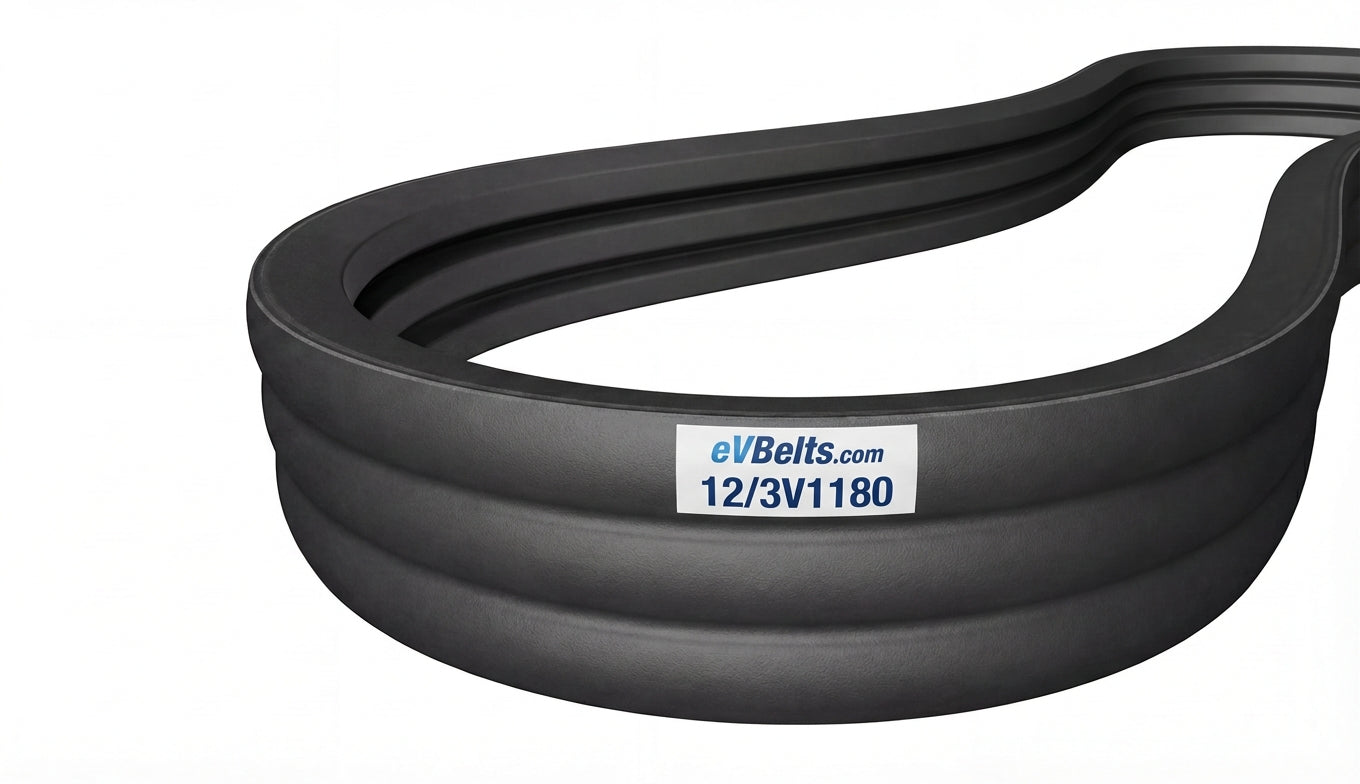

12/3V1180

Top Width: 4.83" (122.68mm)
Outside Length: 118.3" (3004.8mm)
Inside Length: 117.5" (2984.5mm)
Min Pulley Diameter: 2.65"
Configuration: 12-Band Set

The 12/3V1180 is a factory-joined 12-band 3V banded belt assembly measuring 4.83" wide x 118.3" long, featuring oil and heat resistant rubber construction.

SKU: 1223579

$277.68

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	12/3V1180
Top Width	4.83 in / 122.68 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	117.5 in / 2984.5 mm
Outside Length	118.3 in / 3004.8 mm
Effective Length	118.0 in
Min Sheave Diameter	2.65 in / 67.3 mm
Ribs	12
