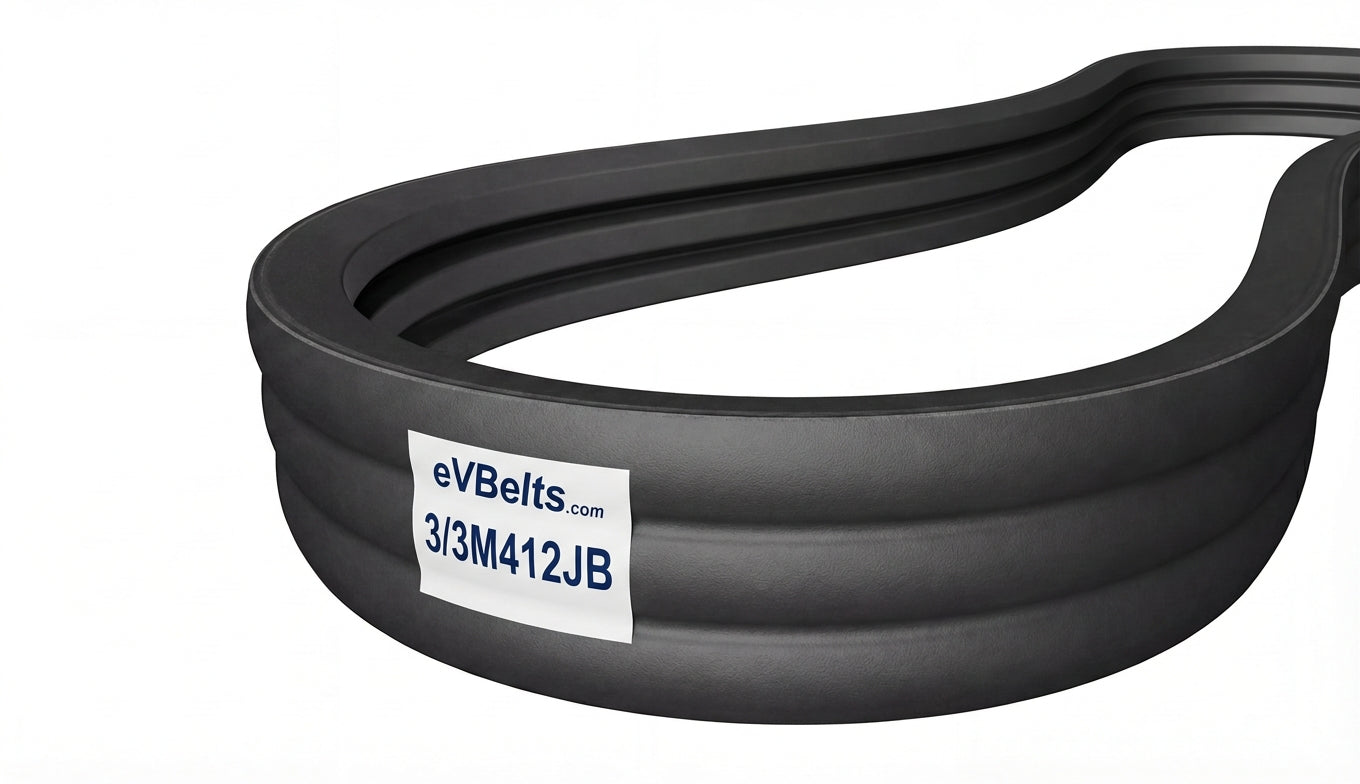

3/3M412JB

Top Width: 0.276" (7.02mm)
Outside Length: 16.22" (412mm)
Inside Length: 16.02" (407mm)
Min Pulley Diameter: 0.98"
Configuration: 3-Band Set

The 3/3M412JB is a factory-joined 3-band 3M banded belt assembly measuring 0.276" wide x 16.22" long, featuring oil and heat resistant rubber construction.

SKU: 1212310

$54.81

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	3/3M412JB
Top Width	0.276 in / 7.02 mm
Belt Depth	0.0984 in / 2.5 mm
Inside Length	16.02 in / 407.0 mm
Outside Length	16.22 in / 412.0 mm
Effective Length	16.22 in
Min Sheave Diameter	0.98 in / 25.0 mm
Ribs	3
