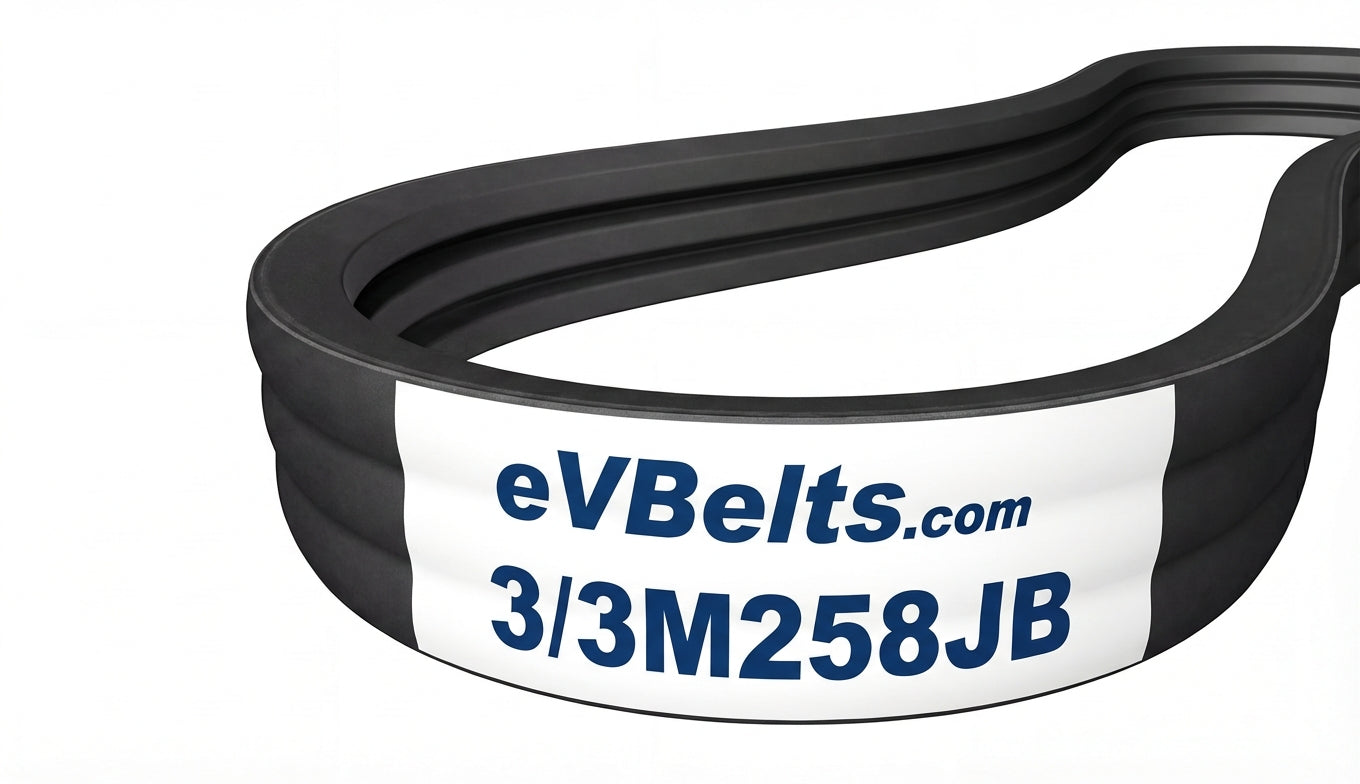

3/3M258JB

Top Width: 0.276" (7.02mm)
Outside Length: 10.16" (258mm)
Inside Length: 9.96" (253mm)
Min Pulley Diameter: 0.98"
Configuration: 3-Band Set

The 3/3M258JB is a factory-joined 3-band 3M banded belt assembly measuring 0.276" wide x 10.16" long, featuring oil and heat resistant rubber construction.

SKU: 1212294

$55.81

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	3/3M258JB
Top Width	0.276 in / 7.02 mm
Belt Depth	0.0984 in / 2.5 mm
Inside Length	9.96 in / 253.0 mm
Outside Length	10.16 in / 258.0 mm
Effective Length	10.16 in
Min Sheave Diameter	0.98 in / 25.0 mm
Ribs	3
