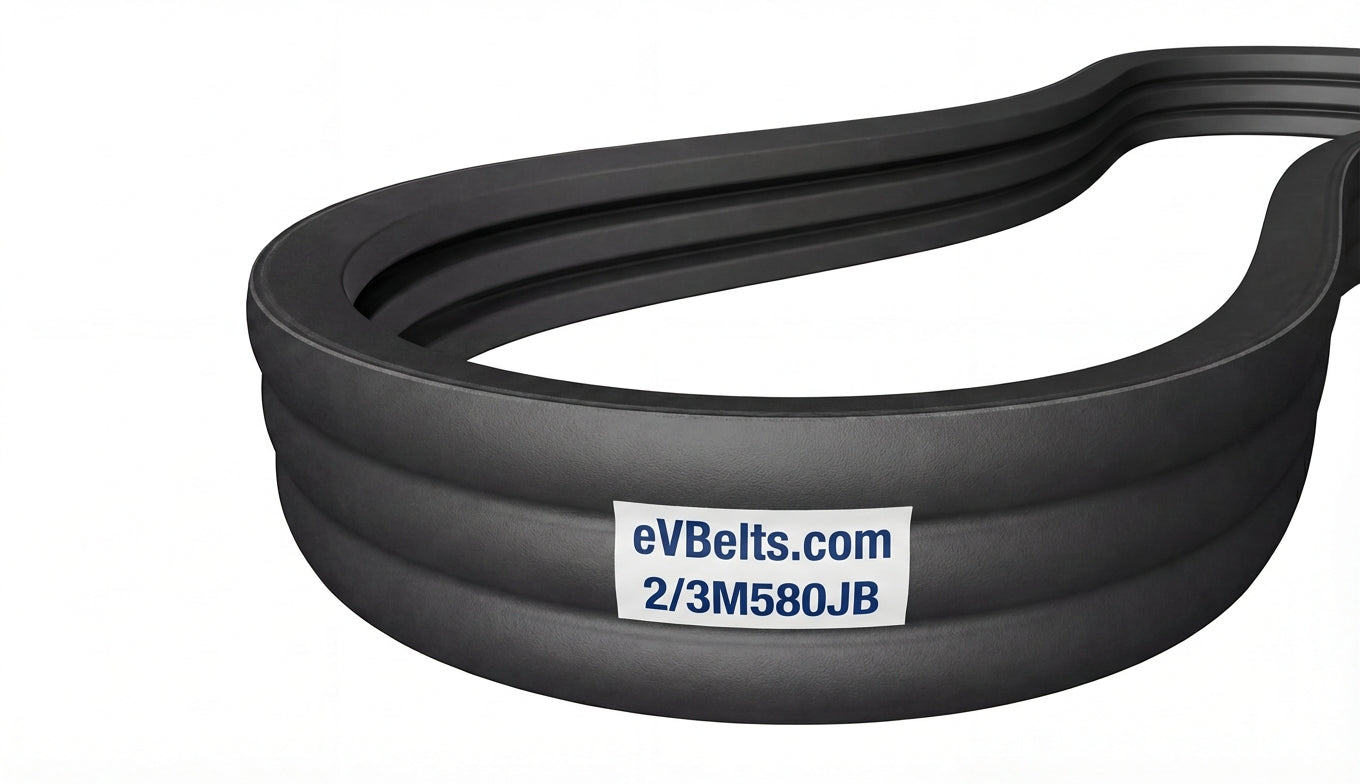

2/3M580JB

Top Width: 0.184" (4.68mm)
Outside Length: 22.83" (580mm)
Inside Length: 22.64" (575mm)
Min Pulley Diameter: 0.98"
Configuration: 2-Band Set

The 2/3M580JB is a factory-joined 2-band 3M banded belt assembly measuring 0.184" wide x 22.83" long, featuring oil and heat resistant rubber construction.

SKU: 1212269

$41.96

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	2/3M580JB
Top Width	0.184 in / 4.68 mm
Belt Depth	0.0984 in / 2.5 mm
Inside Length	22.64 in / 575.0 mm
Outside Length	22.83 in / 580.0 mm
Effective Length	22.83 in
Min Sheave Diameter	0.98 in / 25.0 mm
Ribs	2
