2/3M236JB

Top Width: 0.184" (4.68mm)
Outside Length: 9.29" (236mm)
Inside Length: 9.09" (231mm)
Min Pulley Diameter: 0.98"
Configuration: 2-Band Set

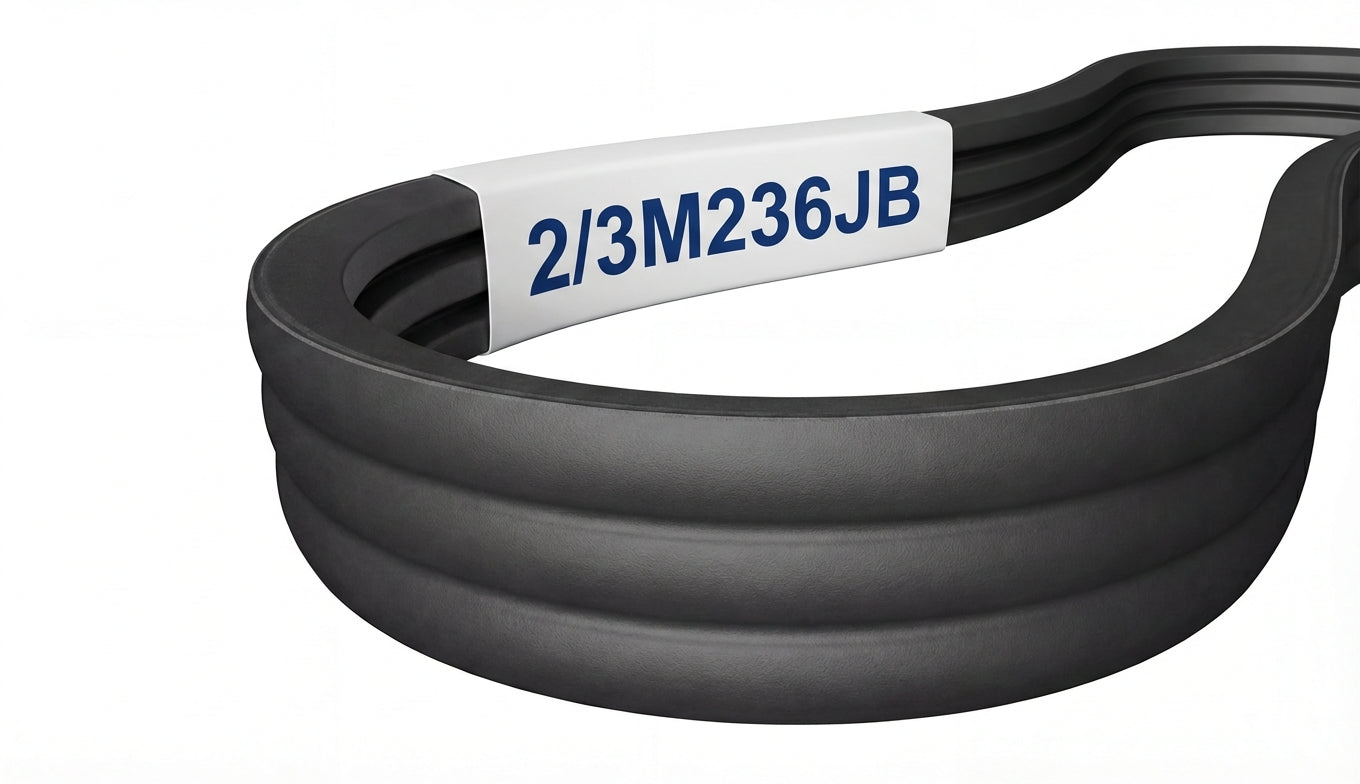

The 2/3M236JB is a factory-joined 2-band 3M banded belt assembly measuring 0.184" wide x 9.29" long, featuring oil and heat resistant rubber construction.

SKU: 1212236

$31.04

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	2/3M236JB
Top Width	0.184 in / 4.68 mm
Belt Depth	0.0984 in / 2.5 mm
Inside Length	9.09 in / 231.0 mm
Outside Length	9.29 in / 236.0 mm
Effective Length	9.29 in
Min Sheave Diameter	0.98 in / 25.0 mm
Ribs	2
