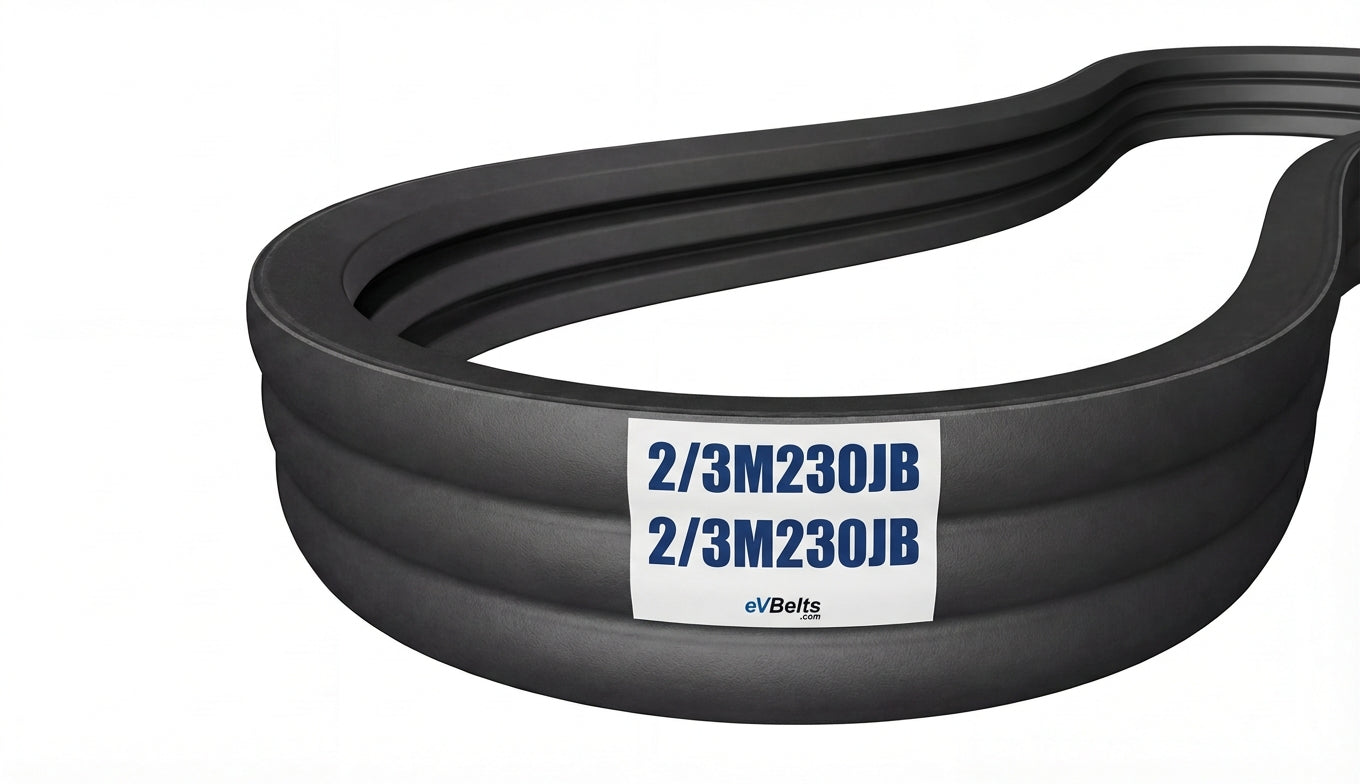

2/3M230JB

Top Width: 0.184" (4.68mm)
Outside Length: 9.06" (230mm)
Inside Length: 8.86" (225mm)
Min Pulley Diameter: 0.98"
Configuration: 2-Band Set

The 2/3M230JB is a factory-joined 2-band 3M banded belt assembly measuring 0.184" wide x 9.06" long, featuring oil and heat resistant rubber construction.

SKU: 1212237

$35.72

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	2/3M230JB
Top Width	0.184 in / 4.68 mm
Belt Depth	0.0984 in / 2.5 mm
Inside Length	8.86 in / 225.0 mm
Outside Length	9.06 in / 230.0 mm
Effective Length	9.06 in
Min Sheave Diameter	0.98 in / 25.0 mm
Ribs	2
