2/3M224JB

Top Width: 0.184" (4.68mm)
Outside Length: 8.82" (224mm)
Inside Length: 8.62" (219mm)
Min Pulley Diameter: 0.98"
Configuration: 2-Band Set

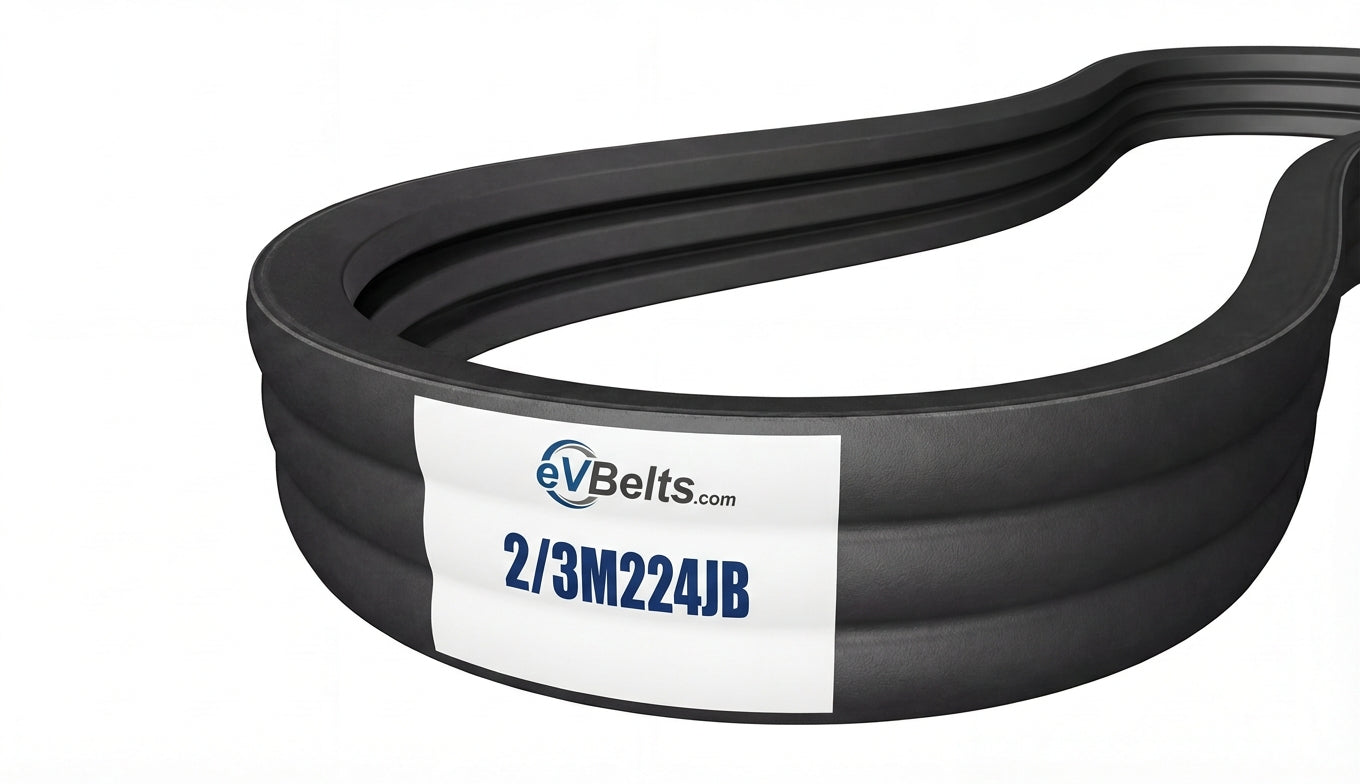

The 2/3M224JB is a factory-joined 2-band 3M banded belt assembly measuring 0.184" wide x 8.82" long, featuring oil and heat resistant rubber construction.

SKU: 1212235

$35.72

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	2/3M224JB
Top Width	0.184 in / 4.68 mm
Belt Depth	0.0984 in / 2.5 mm
Inside Length	8.62 in / 219.0 mm
Outside Length	8.82 in / 224.0 mm
Effective Length	8.82 in
Min Sheave Diameter	0.98 in / 25.0 mm
Ribs	2
