The 3L390 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 39" long, featuring oil and heat resistant rubber construction.

3L390 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 39" (990.6mm)
• Inside Length: 37.5" (952.5mm)
• Min Pulley Diameter: 1"

The 3L390 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L420 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 42" long, featuring oil and heat resistant rubber construction.

3L420 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 42" (1066.8mm)
• Inside Length: 40.5" (1028.7mm)
• Min Pulley Diameter: 1"

The 3L420 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

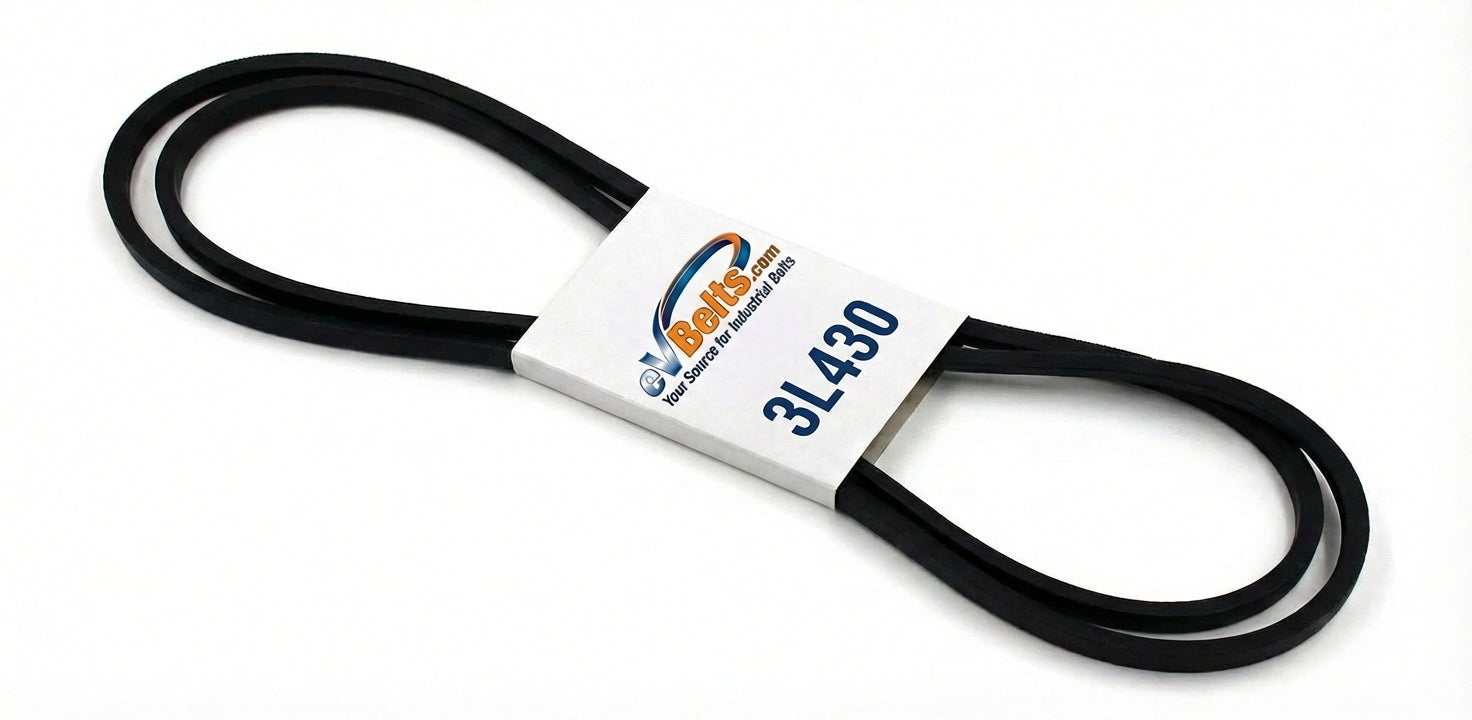

The 3L430 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 43" long, featuring oil and heat resistant rubber construction.

3L430 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 43" (1092.2mm)
• Inside Length: 41.5" (1054.1mm)
• Min Pulley Diameter: 1"

The 3L430 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L440 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 44" long, featuring oil and heat resistant rubber construction.

3L440 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 44" (1117.6mm)
• Inside Length: 42.5" (1079.5mm)
• Min Pulley Diameter: 1"

The 3L440 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L460 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 46" long, featuring oil and heat resistant rubber construction.

3L460 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 46" (1168.4mm)
• Inside Length: 44.5" (1130.3mm)
• Min Pulley Diameter: 1"

OEM Part Numbers Replaced by 3L460

• CANADA 200555
• CUB CADET 9540429
• FORD 200555
• FORD 240684

The 3L460 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L480 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 48" long, featuring oil and heat resistant rubber construction.

3L480 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 48" (1219.2mm)
• Inside Length: 46.5" (1181.1mm)
• Min Pulley Diameter: 1"

The 3L480 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L470 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 47" long, featuring oil and heat resistant rubber construction.

3L470 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 47" (1193.8mm)
• Inside Length: 45.5" (1155.7mm)
• Min Pulley Diameter: 1"

The 3L470 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L490 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 49" long, featuring oil and heat resistant rubber construction.

3L490 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 49" (1244.6mm)
• Inside Length: 47.5" (1206.5mm)
• Min Pulley Diameter: 1"

The 3L490 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L500 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 50" long, featuring oil and heat resistant rubber construction.

3L500 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 50" (1270mm)
• Inside Length: 48.5" (1231.9mm)
• Min Pulley Diameter: 1"

The 3L500 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L560 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 56" long, featuring oil and heat resistant rubber construction.

3L560 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 56" (1422.4mm)
• Inside Length: 54.5" (1384.3mm)
• Min Pulley Diameter: 1"

The 3L560 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L520 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 52" long, featuring oil and heat resistant rubber construction.

3L520 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 52" (1320.8mm)
• Inside Length: 50.5" (1282.7mm)
• Min Pulley Diameter: 1"

The 3L520 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

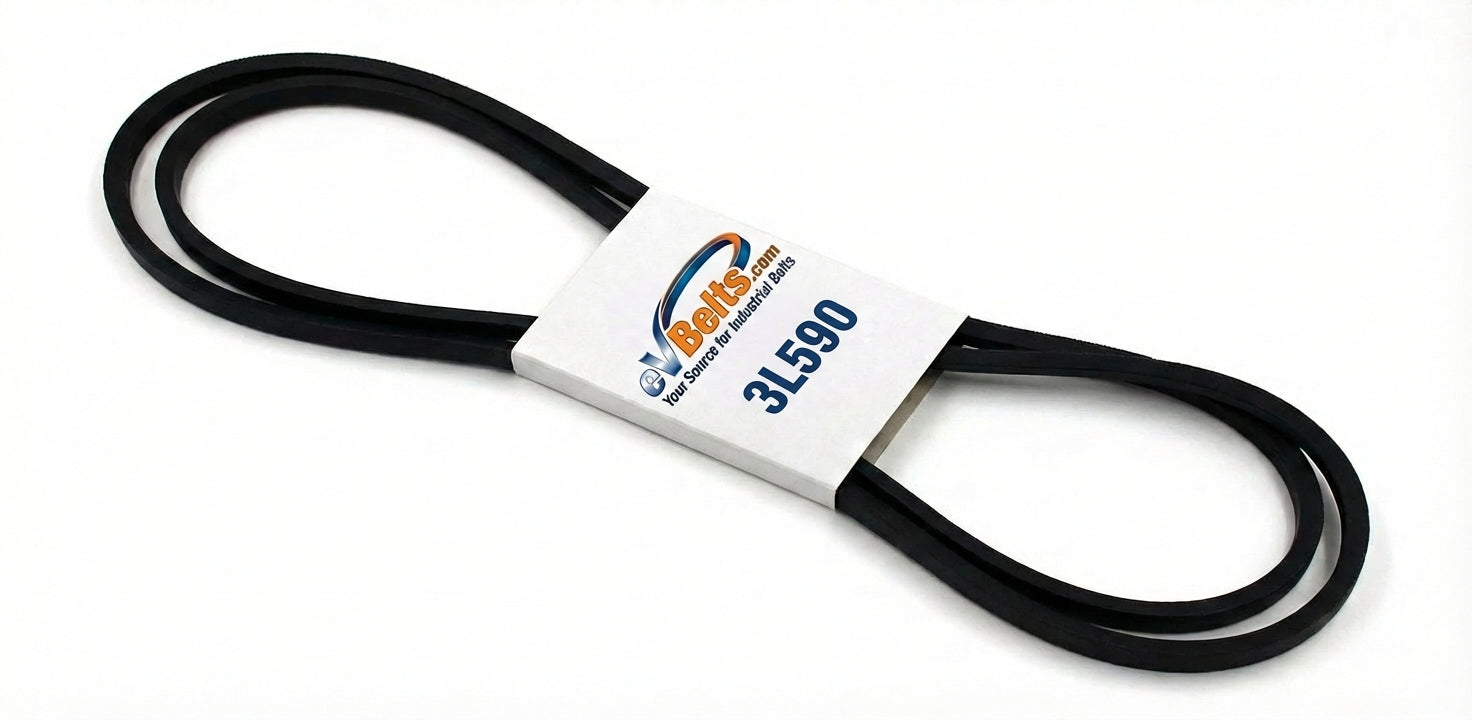

The 3L590 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 59" long, featuring oil and heat resistant rubber construction.

3L590 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 59" (1498.6mm)
• Inside Length: 57.5" (1460.5mm)
• Min Pulley Diameter: 1"

The 3L590 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.
