The 3L110 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 11" long, featuring oil and heat resistant rubber construction.

3L110 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 11" (279.4mm)
• Inside Length: 9.5" (241.3mm)
• Min Pulley Diameter: 1"

The 3L110 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L140 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 14" long, featuring oil and heat resistant rubber construction.

3L140 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 14" (355.6mm)
• Inside Length: 12.5" (317.5mm)
• Min Pulley Diameter: 1"

The 3L140 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L245 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 24.5" long, featuring oil and heat resistant rubber construction.

3L245 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 24.5" (622.3mm)
• Inside Length: 23" (584.2mm)
• Min Pulley Diameter: 1"

The 3L245 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L255 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 25.5" long, featuring oil and heat resistant rubber construction.

3L255 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 25.5" (647.7mm)
• Inside Length: 24" (609.6mm)
• Min Pulley Diameter: 1"

The 3L255 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L275 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 27.5" long, featuring oil and heat resistant rubber construction.

3L275 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 27.5" (698.5mm)
• Inside Length: 26" (660.4mm)
• Min Pulley Diameter: 1"

The 3L275 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L265 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 26.5" long, featuring oil and heat resistant rubber construction.

3L265 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 26.5" (673.1mm)
• Inside Length: 25" (635mm)
• Min Pulley Diameter: 1"

The 3L265 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L285 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 28.5" long, featuring oil and heat resistant rubber construction.

3L285 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 28.5" (723.9mm)
• Inside Length: 27" (685.8mm)
• Min Pulley Diameter: 1"

OEM Part Numbers Replaced by 3L285

• 1008838

The 3L285 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L293 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 29.3" long, featuring oil and heat resistant rubber construction.

3L293 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 29.3" (744.2mm)
• Inside Length: 27.8" (706.1mm)
• Min Pulley Diameter: 1"

OEM Part Numbers Replaced by 3L293

• WHEEL HORSE 104290

The 3L293 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L415 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 41.5" long, featuring oil and heat resistant rubber construction.

3L415 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 41.5" (1054.1mm)
• Inside Length: 40" (1016mm)
• Min Pulley Diameter: 1"

The 3L415 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L345 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 34.5" long, featuring oil and heat resistant rubber construction.

3L345 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 34.5" (876.3mm)
• Inside Length: 33" (838.2mm)
• Min Pulley Diameter: 1"

The 3L345 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

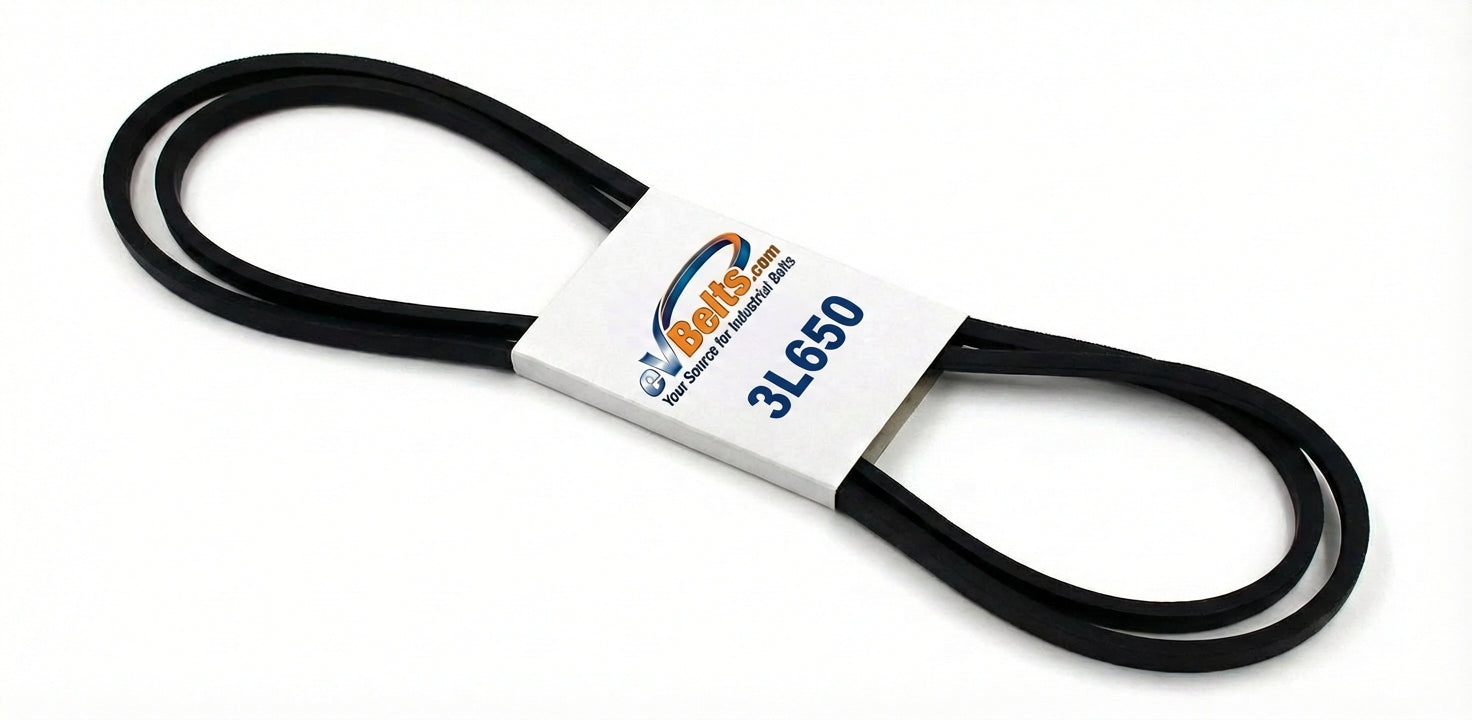

The 3L650 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 65" long, featuring oil and heat resistant rubber construction.

3L650 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 65" (1651mm)
• Inside Length: 63.5" (1612.9mm)
• Min Pulley Diameter: 1"

The 3L650 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L640 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 64" long, featuring oil and heat resistant rubber construction.

3L640 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 64" (1625.6mm)
• Inside Length: 62.5" (1587.5mm)
• Min Pulley Diameter: 1"

The 3L640 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L660 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 66" long, featuring oil and heat resistant rubber construction.

3L660 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 66" (1676.4mm)
• Inside Length: 64.5" (1638.3mm)
• Min Pulley Diameter: 1"

The 3L660 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

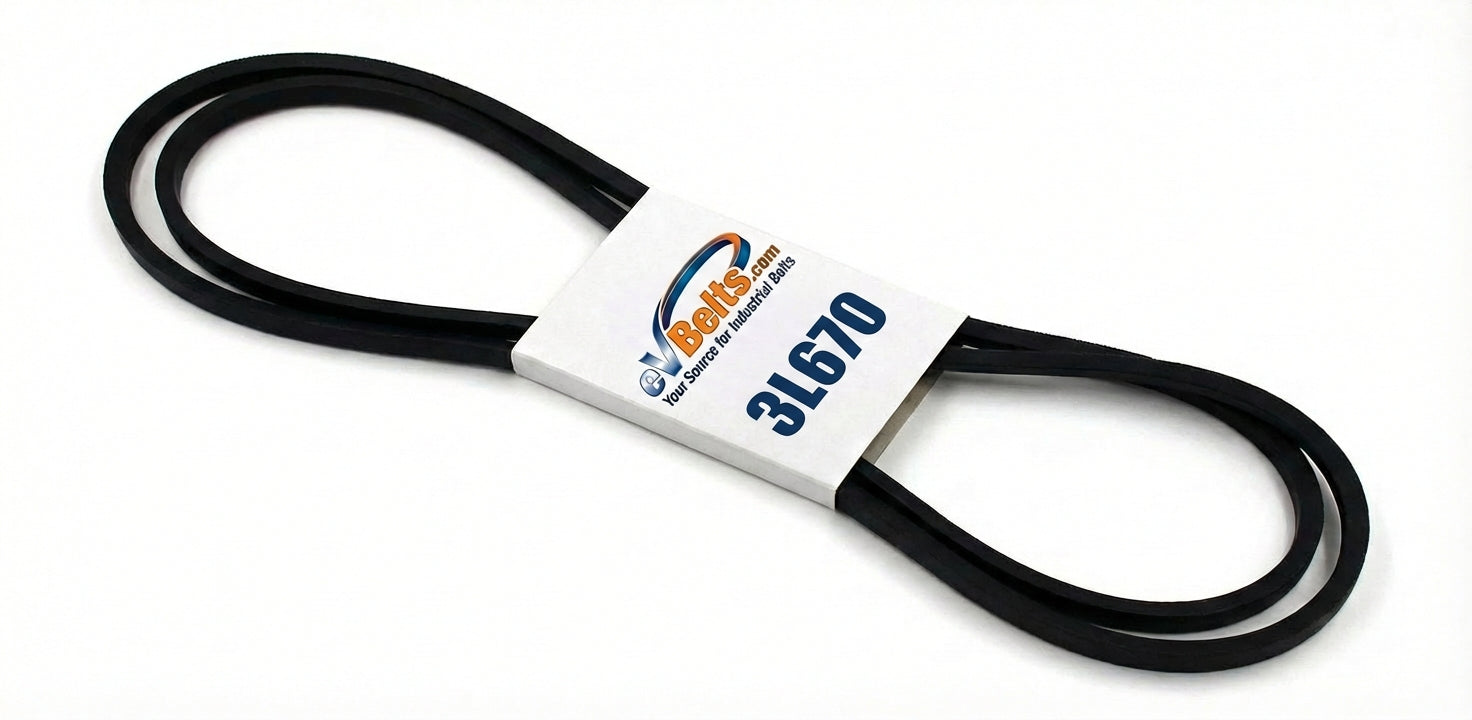

The 3L670 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 67" long, featuring oil and heat resistant rubber construction.

3L670 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 67" (1701.8mm)
• Inside Length: 65.5" (1663.7mm)
• Min Pulley Diameter: 1"

The 3L670 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L675 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 67.5" long, featuring oil and heat resistant rubber construction.

3L675 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 67.5" (1714.5mm)
• Inside Length: 66" (1676.4mm)
• Min Pulley Diameter: 1"

The 3L675 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L680 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 68" long, featuring oil and heat resistant rubber construction.

3L680 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 68" (1727.2mm)
• Inside Length: 66.5" (1689.1mm)
• Min Pulley Diameter: 1"

The 3L680 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L700 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 70" long, featuring oil and heat resistant rubber construction.

3L700 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 70" (1778mm)
• Inside Length: 68.5" (1739.9mm)
• Min Pulley Diameter: 1"

The 3L700 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

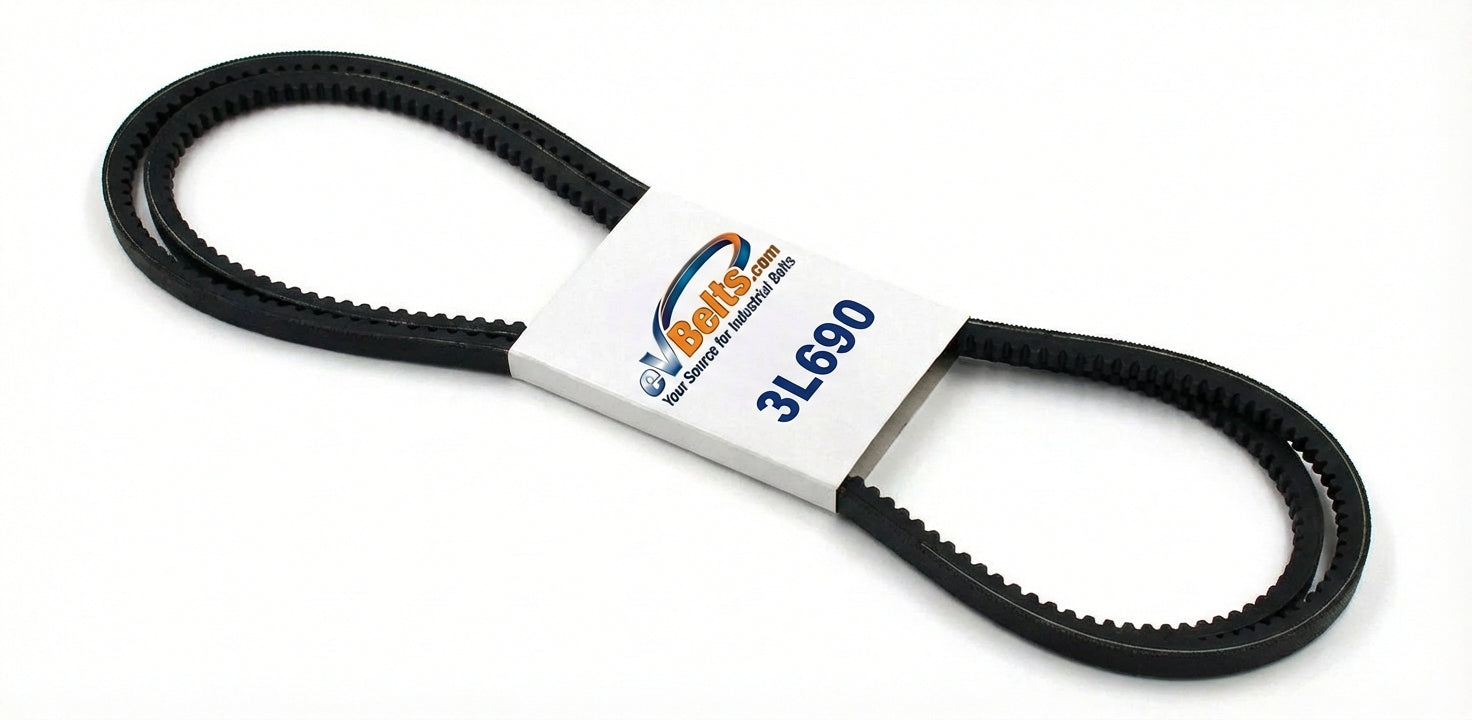

The 3L690 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 69" long, featuring oil and heat resistant rubber construction.

3L690 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 69" (1752.6mm)
• Inside Length: 67.5" (1714.5mm)
• Min Pulley Diameter: 1"

The 3L690 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L730 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 73" long, featuring oil and heat resistant rubber construction.

3L730 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 73" (1854.2mm)
• Inside Length: 71.5" (1816.1mm)
• Min Pulley Diameter: 1"

The 3L730 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L710 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 71" long, featuring oil and heat resistant rubber construction.

3L710 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 71" (1803.4mm)
• Inside Length: 69.5" (1765.3mm)
• Min Pulley Diameter: 1"

The 3L710 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L740 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 74" long, featuring oil and heat resistant rubber construction.

3L740 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 74" (1879.6mm)
• Inside Length: 72.5" (1841.5mm)
• Min Pulley Diameter: 1"

The 3L740 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L120 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 12" long, featuring oil and heat resistant rubber construction.

3L120 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 12" (304.8mm)
• Inside Length: 10.5" (266.7mm)
• Min Pulley Diameter: 1"

The 3L120 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L130 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 13" long, featuring oil and heat resistant rubber construction.

3L130 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 13" (330.2mm)
• Inside Length: 11.5" (292.1mm)
• Min Pulley Diameter: 1"

The 3L130 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L170 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 17" long, featuring oil and heat resistant rubber construction.

3L170 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 17" (431.8mm)
• Inside Length: 15.5" (393.7mm)
• Min Pulley Diameter: 1"

The 3L170 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L270 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 27" long, featuring oil and heat resistant rubber construction.

3L270 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 27" (685.8mm)
• Inside Length: 25.5" (647.7mm)
• Min Pulley Diameter: 1"

OEM Part Numbers Replaced by 3L270

• 1020699
• CANADA 208626
• CANADA 33622

The 3L270 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L360 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 36" long, featuring oil and heat resistant rubber construction.

3L360 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 36" (914.4mm)
• Inside Length: 34.5" (876.3mm)
• Min Pulley Diameter: 1"

OEM Part Numbers Replaced by 3L360

• 10026
• 7540223
• G1277

The 3L360 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L370 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 37" long, featuring oil and heat resistant rubber construction.

3L370 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 37" (939.8mm)
• Inside Length: 35.5" (901.7mm)
• Min Pulley Diameter: 1"

OEM Part Numbers Replaced by 3L370

• 1008304
• BOLENS 1185434
• COTTER & CO. 6163
• DURITE 2350
• FORD 6163
• WHEEL HORSE 1589

The 3L370 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L380 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 38" long, featuring oil and heat resistant rubber construction.

3L380 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 38" (965.2mm)
• Inside Length: 36.5" (927.1mm)
• Min Pulley Diameter: 1"

OEM Part Numbers Replaced by 3L380

• BURNS 208526

The 3L380 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3L410 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 41" long, featuring oil and heat resistant rubber construction.

3L410 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 41" (1041.4mm)
• Inside Length: 39.5" (1003.3mm)
• Min Pulley Diameter: 1"

OEM Part Numbers Replaced by 3L410

• 22846
• 513857

The 3L410 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

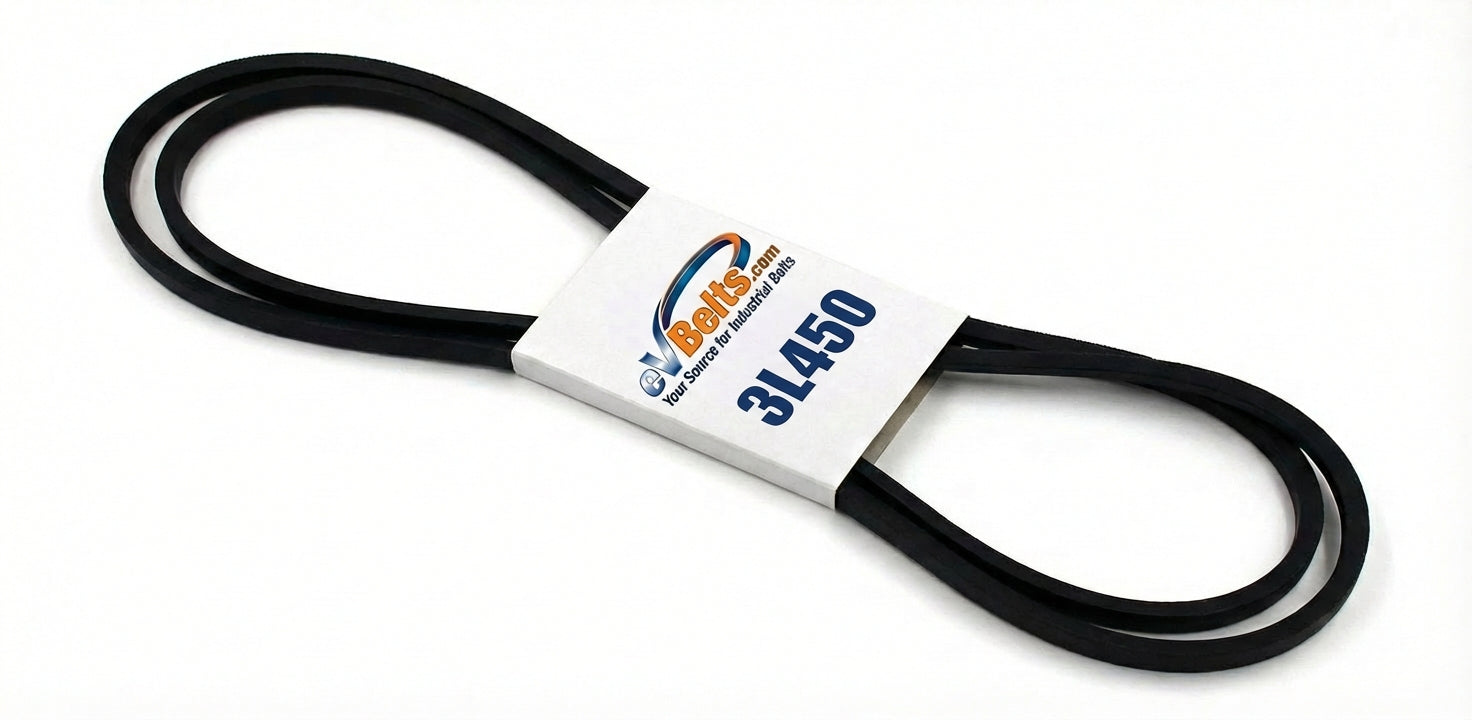

The 3L450 is a premium Fractional Horsepower V-belt measuring 0.375" wide x 45" long, featuring oil and heat resistant rubber construction.

3L450 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 45" (1143mm)
• Inside Length: 43.5" (1104.9mm)
• Min Pulley Diameter: 1"

The 3L450 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.
