3/11M775JB

Top Width: 1.299" (33mm)
Outside Length: 30.51" (775mm)
Inside Length: 30.31" (770mm)
Min Pulley Diameter: 3.94"
Configuration: 3-Band Set

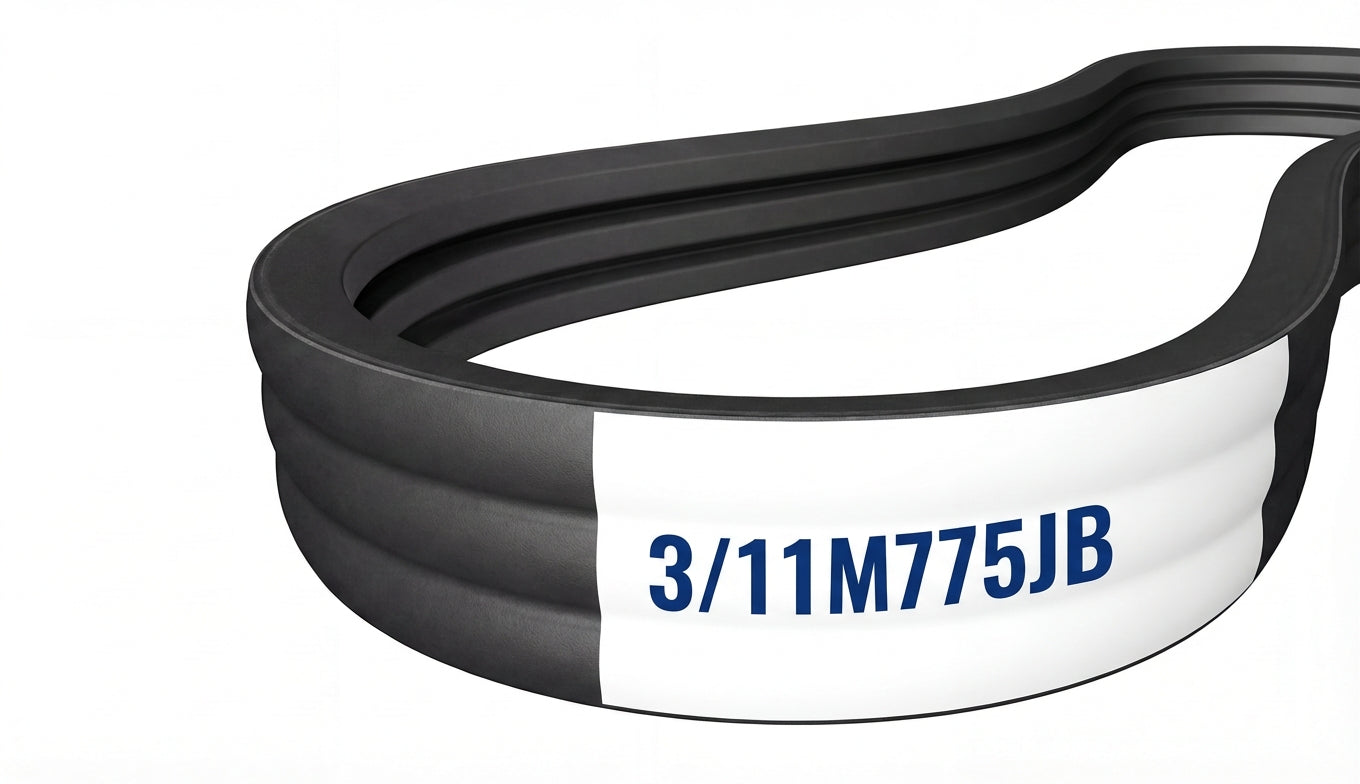

The 3/11M775JB is a factory-joined 3-band 11M banded belt assembly measuring 1.299" wide x 30.51" long, featuring oil and heat resistant rubber construction.

SKU: 1212859

$244.35

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	3/11M775JB
Top Width	1.299 in / 33.0 mm
Belt Depth	0.3543 in / 9.0 mm
Inside Length	30.31 in / 770.0 mm
Outside Length	30.51 in / 775.0 mm
Effective Length	30.51 in
Min Sheave Diameter	3.94 in / 100.0 mm
Ribs	3
