3/11M1000JB

Top Width: 1.299" (33mm)
Outside Length: 39.37" (1000mm)
Inside Length: 39.17" (995mm)
Min Pulley Diameter: 3.94"
Configuration: 3-Band Set

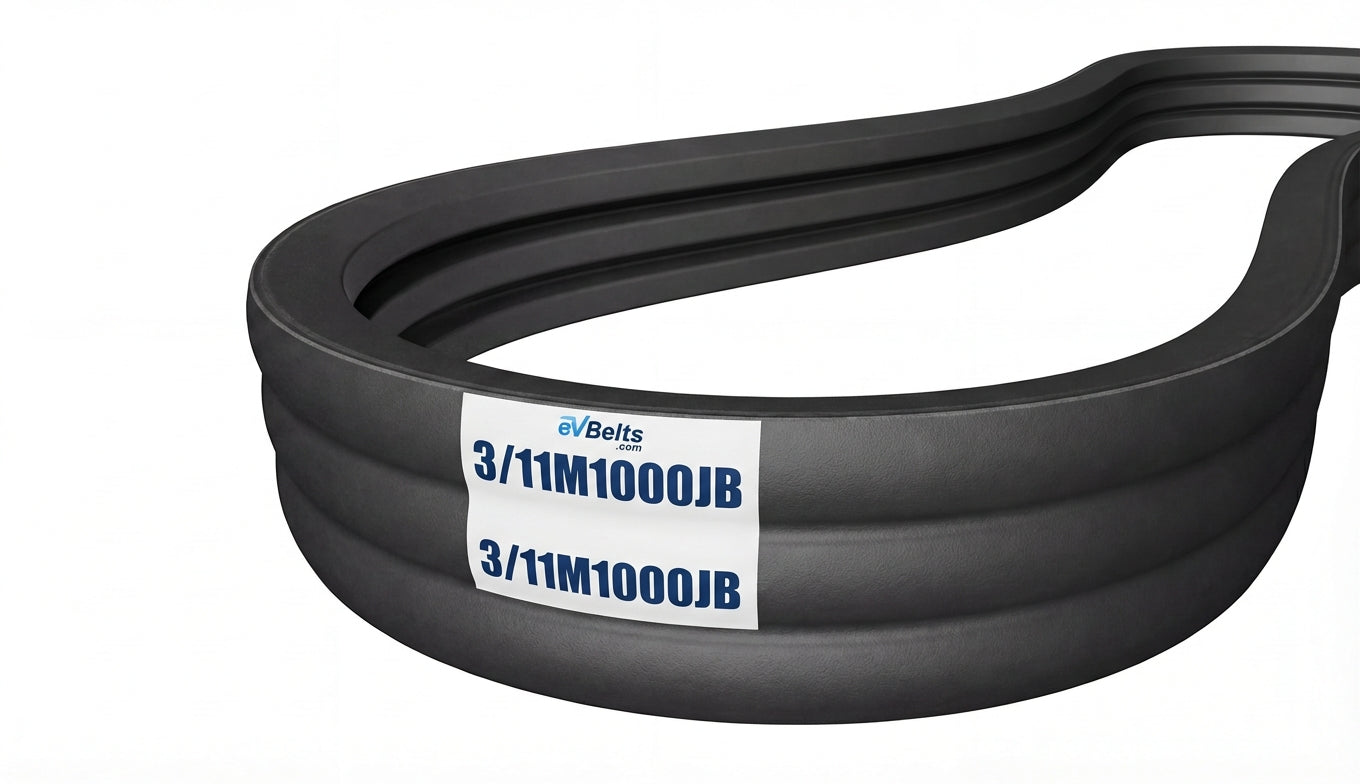

The 3/11M1000JB is a factory-joined 3-band 11M banded belt assembly measuring 1.299" wide x 39.37" long, featuring oil and heat resistant rubber construction.

SKU: 1212826

$278.28

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	3/11M1000JB
Top Width	1.299 in / 33.0 mm
Belt Depth	0.3543 in / 9.0 mm
Inside Length	39.17 in / 995.0 mm
Outside Length	39.37 in / 1000.0 mm
Effective Length	39.37 in
Min Sheave Diameter	3.94 in / 100.0 mm
Ribs	3
