2/11M2300JB

Top Width: 0.866" (22mm)
Outside Length: 90.55" (2300mm)
Inside Length: 90.35" (2295mm)
Min Pulley Diameter: 3.94"
Configuration: 2-Band Set

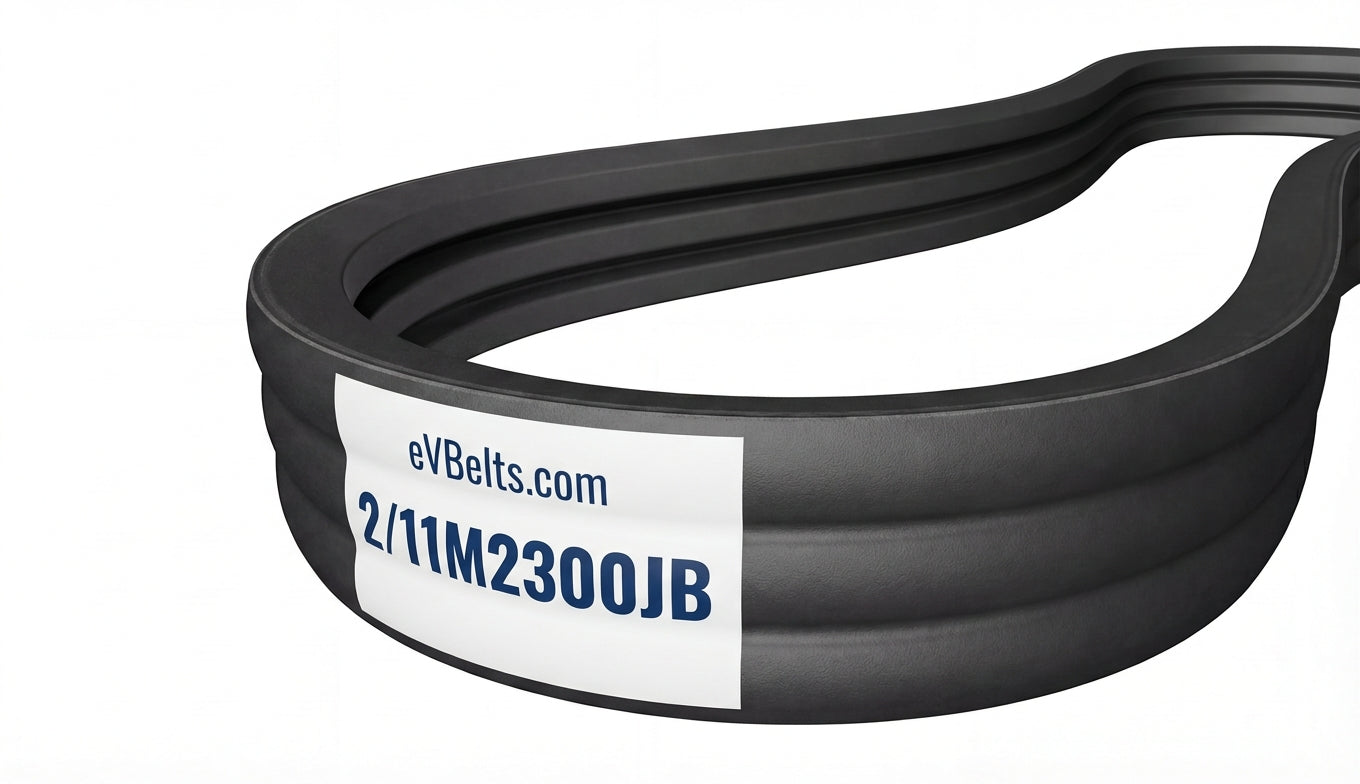

The 2/11M2300JB is a factory-joined 2-band 11M banded belt assembly measuring 0.866" wide x 90.55" long, featuring oil and heat resistant rubber construction.

SKU: 1212813

$342.60

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	2/11M2300JB
Top Width	0.866 in / 22.0 mm
Belt Depth	0.3543 in / 9.0 mm
Inside Length	90.35 in / 2295.0 mm
Outside Length	90.55 in / 2300.0 mm
Effective Length	90.55 in
Min Sheave Diameter	3.94 in / 100.0 mm
Ribs	2
