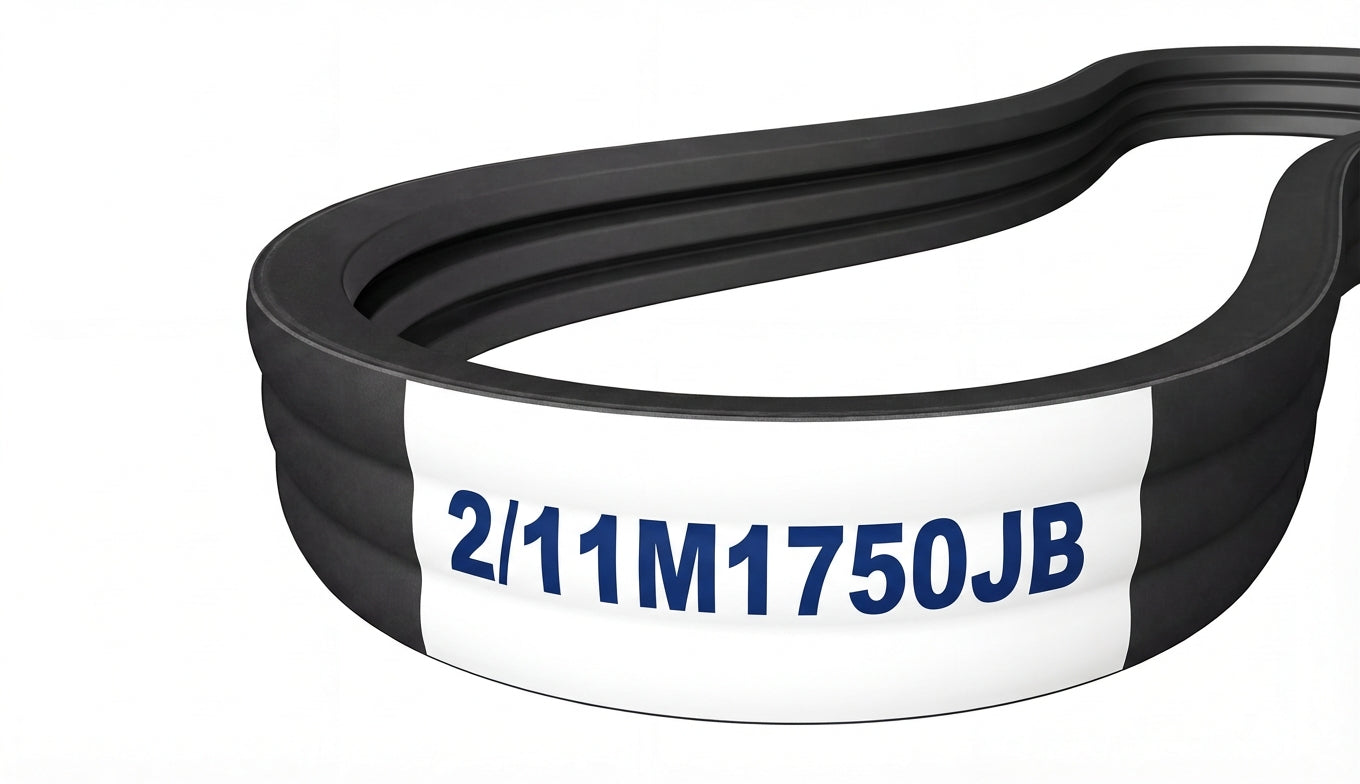

2/11M1750JB

Top Width: 0.866" (22mm)
Outside Length: 68.9" (1750mm)
Inside Length: 68.7" (1745mm)
Min Pulley Diameter: 3.94"
Configuration: 2-Band Set

The 2/11M1750JB is a factory-joined 2-band 11M banded belt assembly measuring 0.866" wide x 68.9" long, featuring oil and heat resistant rubber construction.

SKU: 1212803

$223.58

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	2/11M1750JB
Top Width	0.866 in / 22.0 mm
Belt Depth	0.3543 in / 9.0 mm
Inside Length	68.7 in / 1745.0 mm
Outside Length	68.9 in / 1750.0 mm
Effective Length	68.9 in
Min Sheave Diameter	3.94 in / 100.0 mm
Ribs	2
