9/3VP1180
9/3VP1180
/
/

9/3VP1180

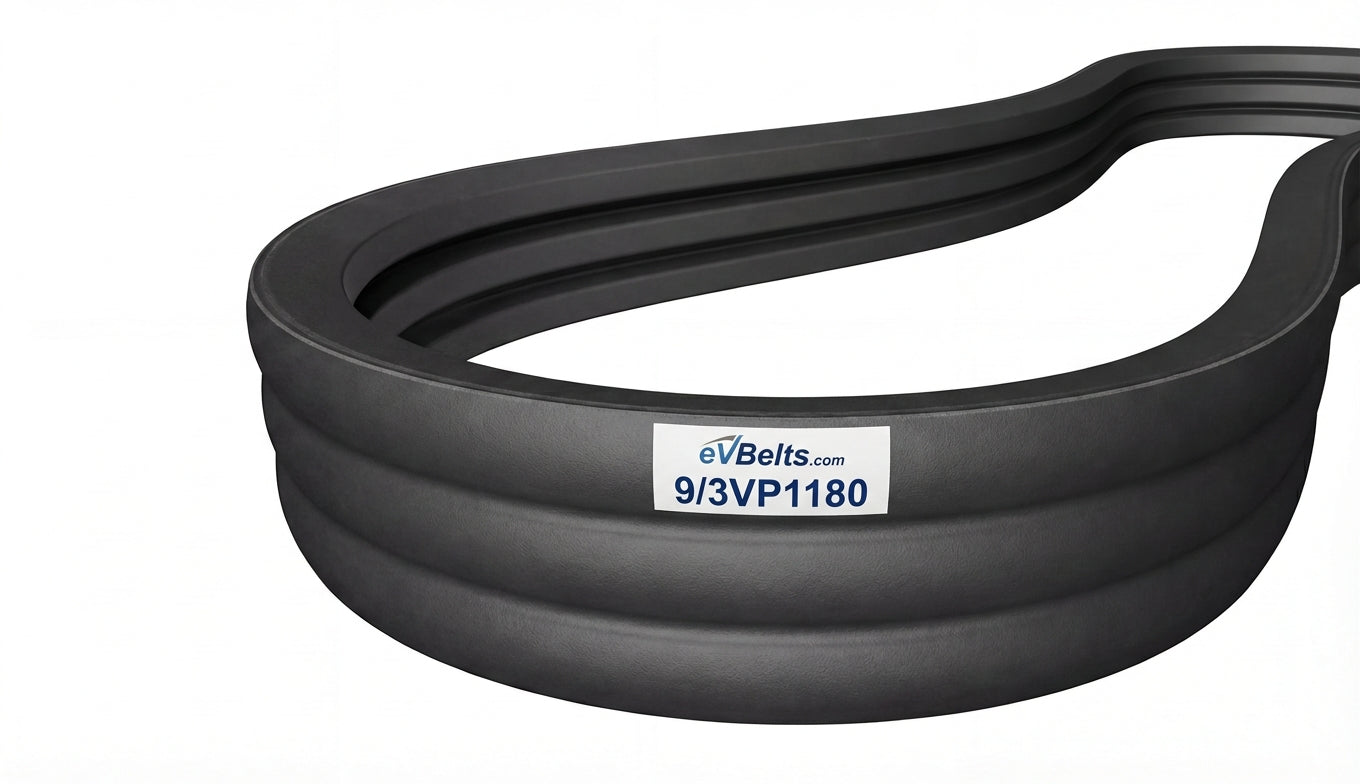

The 9/3VP1180 is a factory-joined 9-band 3V banded belt assembly measuring 3.615" wide x 118.3" long, featuring oil and heat resistant rubber construction.

SKU: 1217765

$392.43

0 In Stock

In stock and ready to ship

Estimated delivery between July 14 and July 16.

Technical Specifications
Part Number 9/3VP1180
Top Width 3.615 in / 91.82 mm
Belt Depth 0.3125 in / 7.94 mm
Inside Length 117.5 in / 2984.5 mm
Outside Length 118.3 in / 3004.8 mm
Effective Length 118.0 in
Min Sheave Diameter 2.65 in / 67.3 mm
Ribs 9
