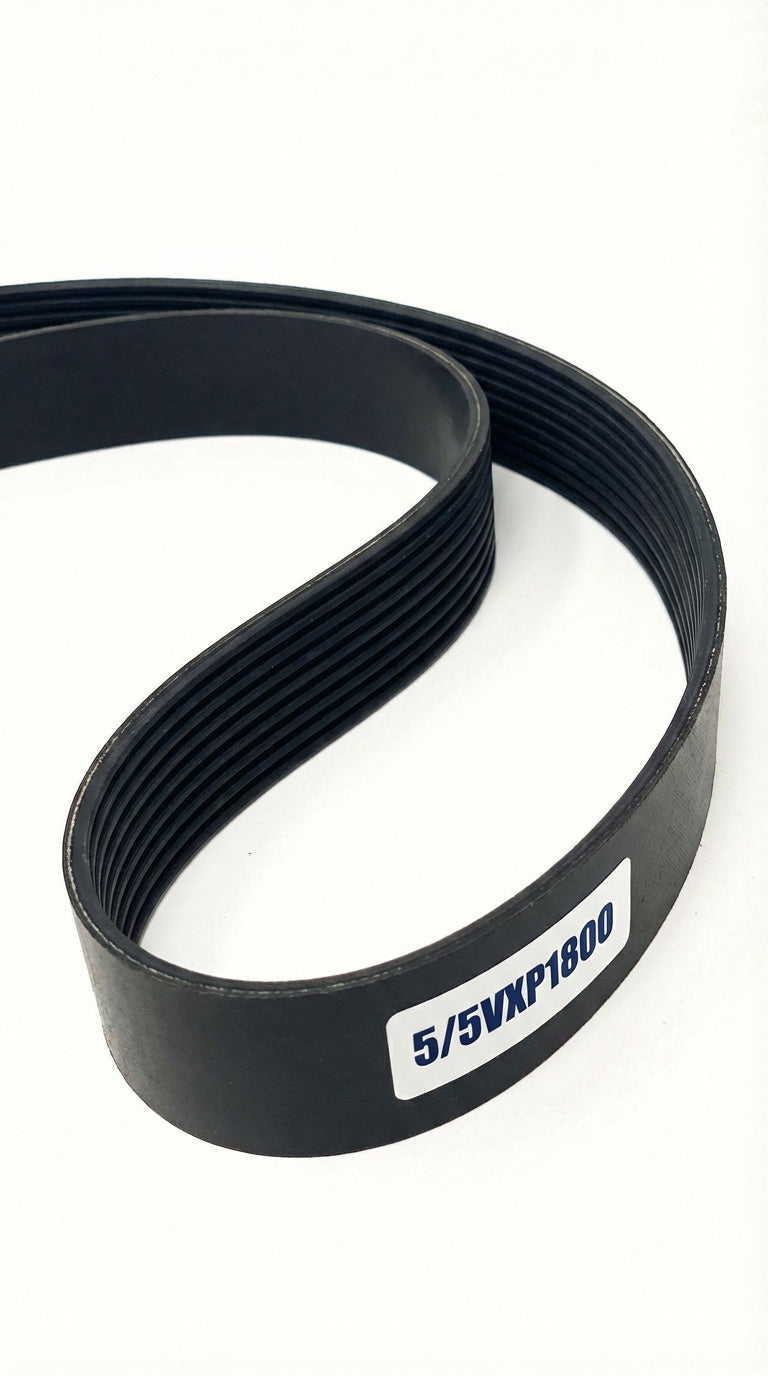

The 5/5VXP1800 is a factory-joined 5-band 5VX banded belt assembly measuring 3.245" wide x 180.6" long, offering improved flexibility around smaller pulleys.

SKU: 1228414

$656.61

0 In Stock

In stock and ready to ship

Estimated delivery between July 08 and July 10.

Technical Specifications
Part Number 5/5VXP1800
Top Width 3.245 in / 82.42 mm
Belt Depth 0.5313 in / 13.5 mm
Inside Length 179.0 in / 4546.6 mm
Outside Length 180.6 in / 4587.2 mm
Effective Length 180.0 in
Min Sheave Diameter 4.4 in / 111.8 mm
Ribs 5
Cogged Yes
