9/C185

Top Width: 8.115" (206.12mm)
Outside Length: 187.9" (4772.7mm)
Inside Length: 185" (4699mm)
Min Pulley Diameter: 9"
Configuration: 9-Band Set

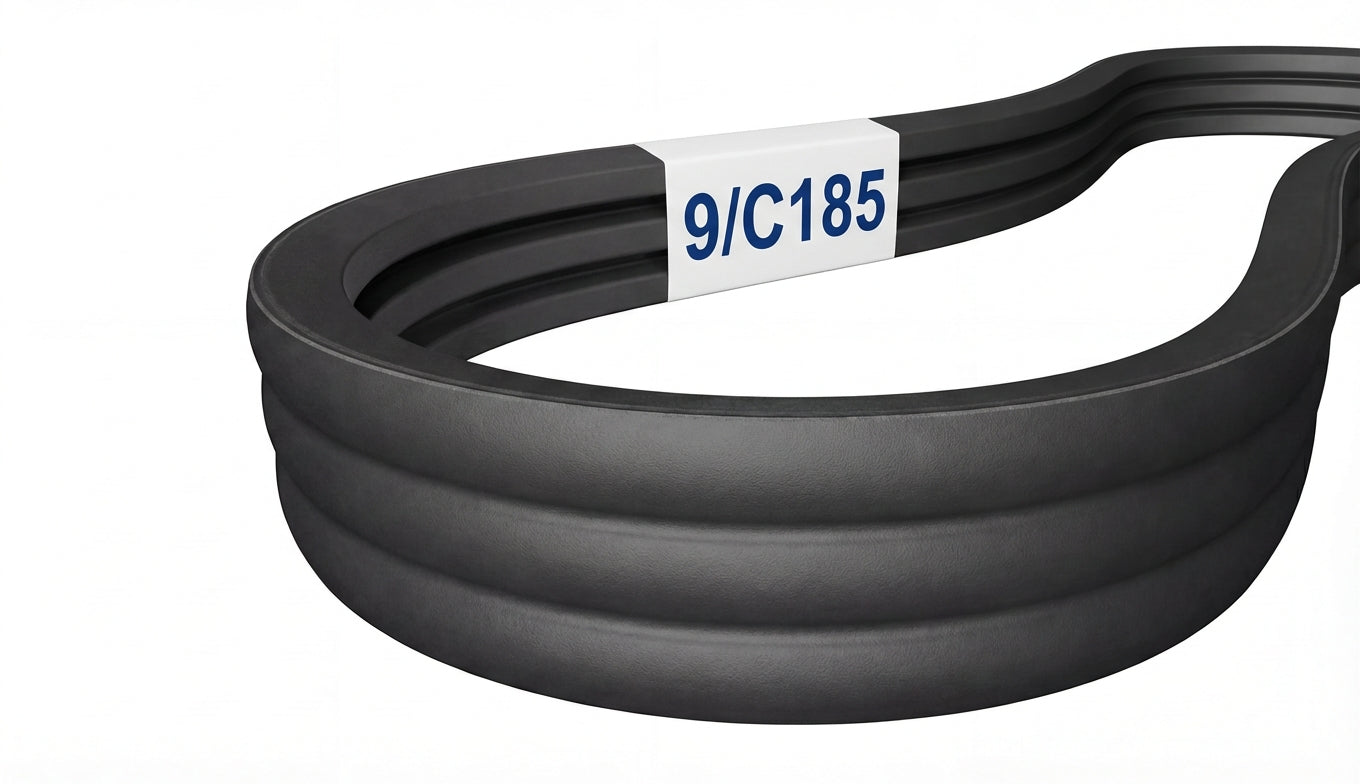

The 9/C185 is a factory-joined 9-band C banded belt assembly measuring 8.115" wide x 187.9" long, featuring oil and heat resistant rubber construction.

SKU: 1216105

$603.92

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	9/C185
Top Width	8.115 in / 206.12 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	185.0 in / 4699.0 mm
Outside Length	187.9 in / 4772.7 mm
Effective Length	187.2 in
Min Sheave Diameter	9.0 in / 228.6 mm
Ribs	9
