8/C144

Top Width: 7.21" (183.13mm)
Outside Length: 146.9" (3731.3mm)
Inside Length: 144" (3657.6mm)
Min Pulley Diameter: 9"
Configuration: 8-Band Set

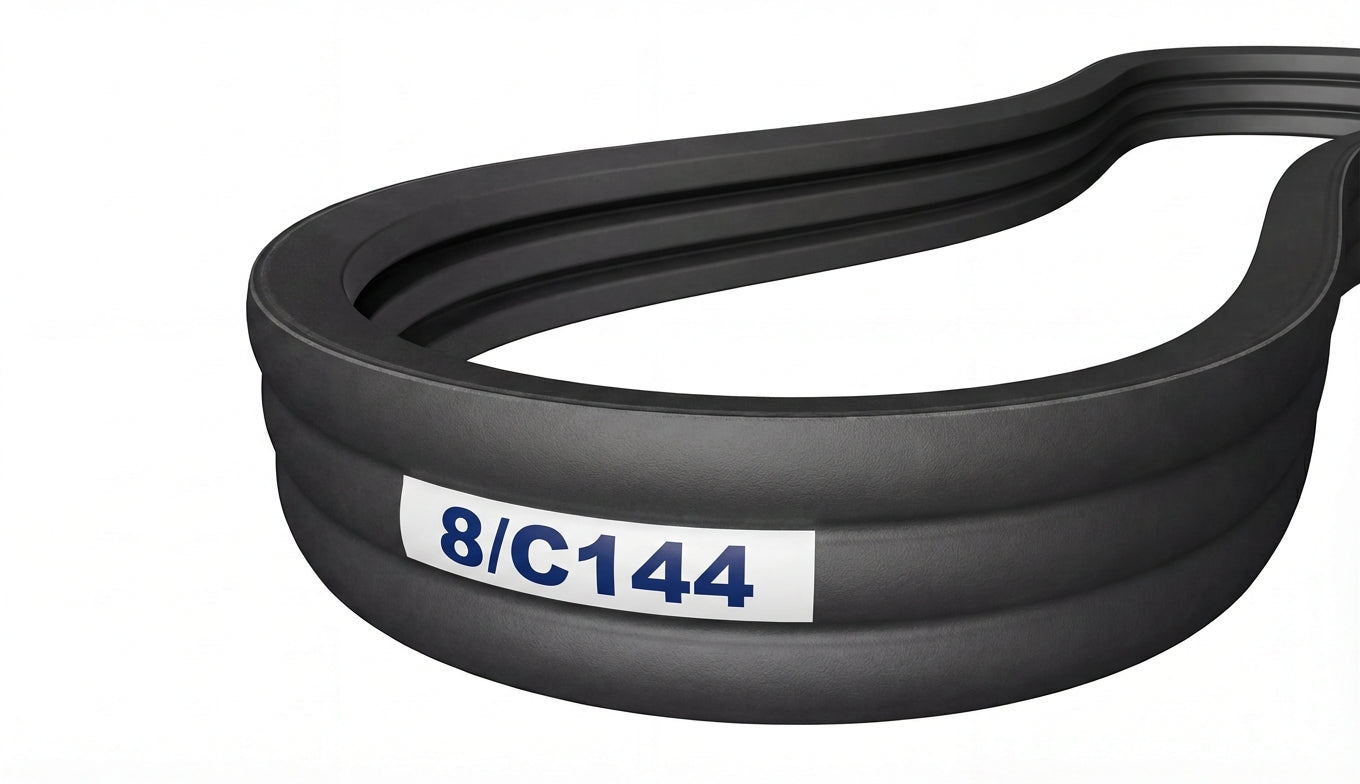

The 8/C144 is a factory-joined 8-band C banded belt assembly measuring 7.21" wide x 146.9" long, featuring oil and heat resistant rubber construction.

SKU: 1216052

$417.74

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	8/C144
Top Width	7.21 in / 183.13 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	144.0 in / 3657.6 mm
Outside Length	146.9 in / 3731.3 mm
Effective Length	146.2 in
Min Sheave Diameter	9.0 in / 228.6 mm
Ribs	8
