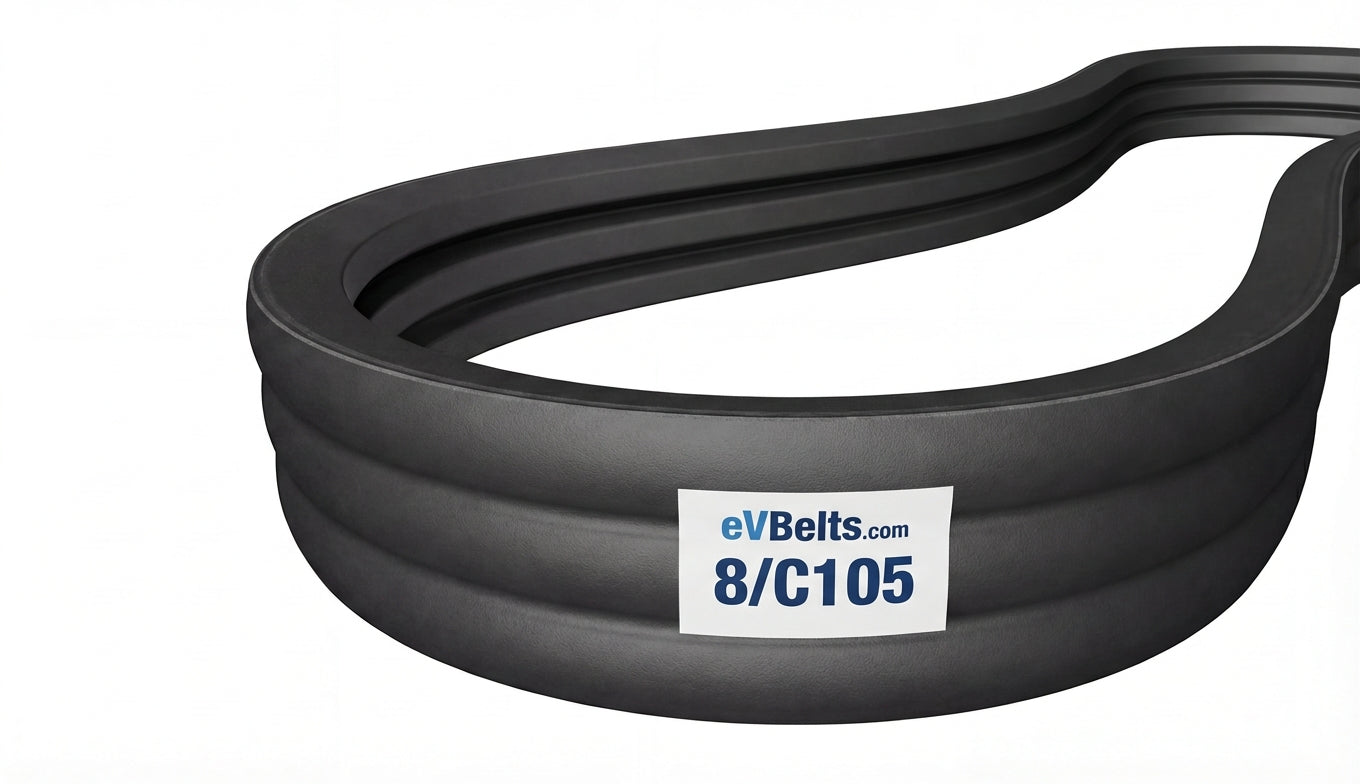

8/C105

Top Width: 7.21" (183.13mm)
Outside Length: 107.9" (2740.7mm)
Inside Length: 105" (2667mm)
Min Pulley Diameter: 9"
Configuration: 8-Band Set

The 8/C105 is a factory-joined 8-band C banded belt assembly measuring 7.21" wide x 107.9" long, featuring oil and heat resistant rubber construction.

SKU: 1216042

$306.91

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	8/C105
Top Width	7.21 in / 183.13 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	105.0 in / 2667.0 mm
Outside Length	107.9 in / 2740.7 mm
Effective Length	107.2 in
Min Sheave Diameter	9.0 in / 228.6 mm
Ribs	8
