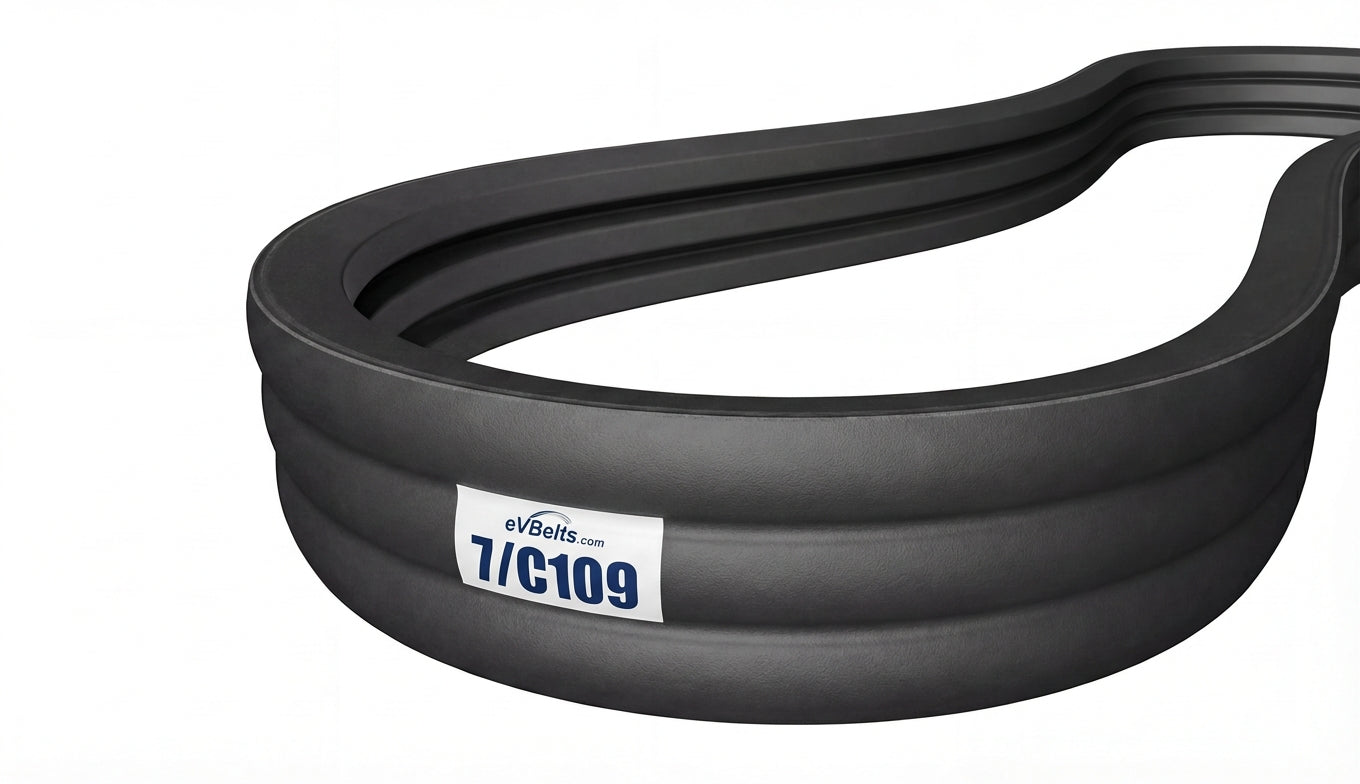

7/C109

Top Width: 6.305" (160.15mm)
Outside Length: 111.9" (2842.3mm)
Inside Length: 109" (2768.6mm)
Min Pulley Diameter: 9"
Configuration: 7-Band Set

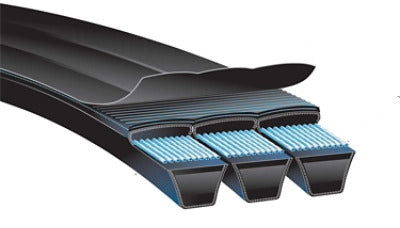

The 7/C109 is a factory-joined 7-band C banded belt assembly measuring 6.305" wide x 111.9" long, featuring oil and heat resistant rubber construction.

SKU: 1215998

$278.18

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	7/C109
Top Width	6.305 in / 160.15 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	109.0 in / 2768.6 mm
Outside Length	111.9 in / 2842.3 mm
Effective Length	111.2 in
Min Sheave Diameter	9.0 in / 228.6 mm
Ribs	7
