7/C103

Top Width: 6.305" (160.15mm)
Outside Length: 105.9" (2689.9mm)
Inside Length: 103" (2616.2mm)
Min Pulley Diameter: 9"
Configuration: 7-Band Set

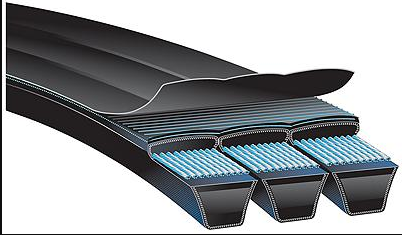

The 7/C103 is a factory-joined 7-band C banded belt assembly measuring 6.305" wide x 105.9" long, featuring oil and heat resistant rubber construction.

SKU: 1215993

$265.42

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	7/C103
Top Width	6.305 in / 160.15 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	103.0 in / 2616.2 mm
Outside Length	105.9 in / 2689.9 mm
Effective Length	105.2 in
Min Sheave Diameter	9.0 in / 228.6 mm
Ribs	7
