6/C315
6/C315
/
/

6/C315

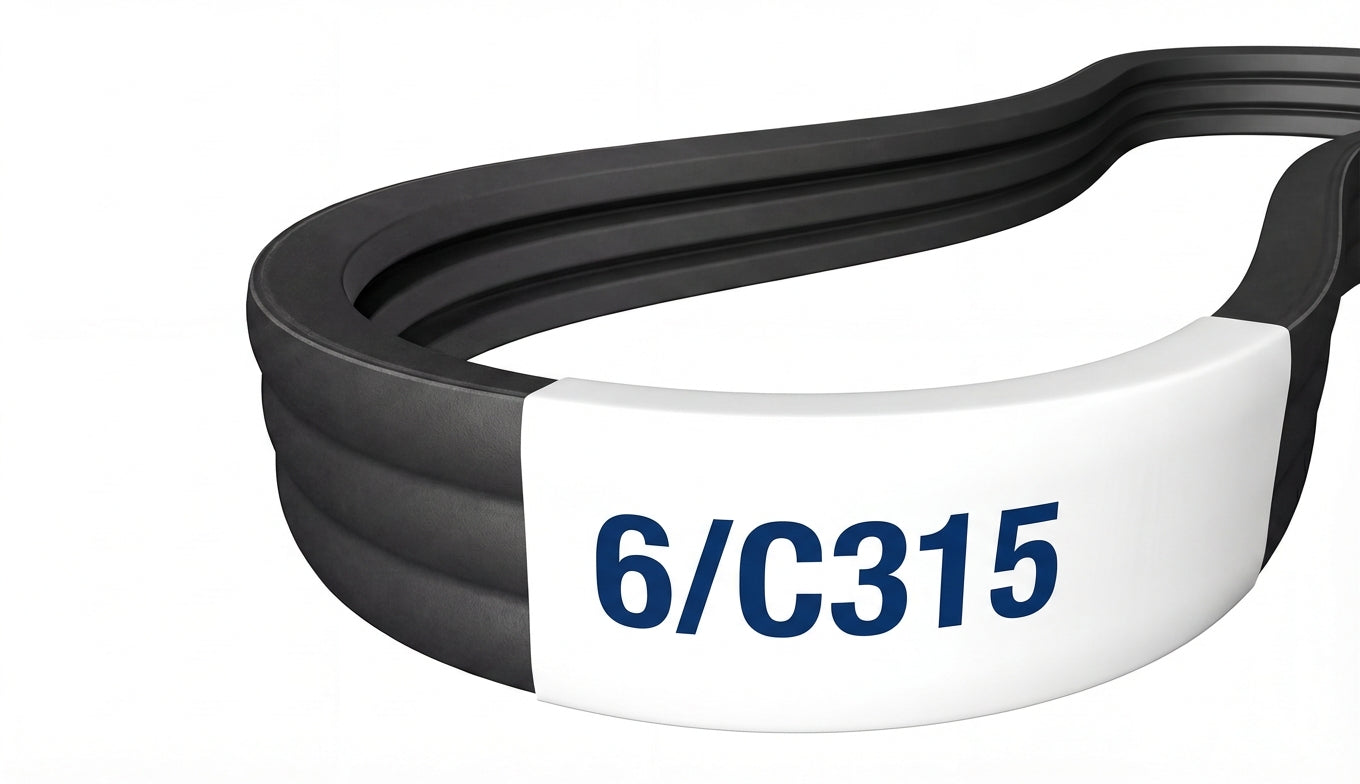

The 6/C315 is a factory-joined 6-band C banded belt assembly measuring 5.4" wide x 317.9" long, featuring oil and heat resistant rubber construction.

SKU: 1215976

$704.73

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications
Part Number 6/C315
Top Width 5.4 in / 137.16 mm
Belt Depth 0.5313 in / 13.5 mm
Inside Length 315.0 in / 8001.0 mm
Outside Length 317.9 in / 8074.7 mm
Effective Length 317.2 in
Min Sheave Diameter 9.0 in / 228.6 mm
Ribs 6
6/C315
