12/C100

Top Width: 10.83" (275.08mm)
Outside Length: 102.9" (2613.7mm)
Inside Length: 100" (2540mm)
Min Pulley Diameter: 9"
Configuration: 12-Band Set

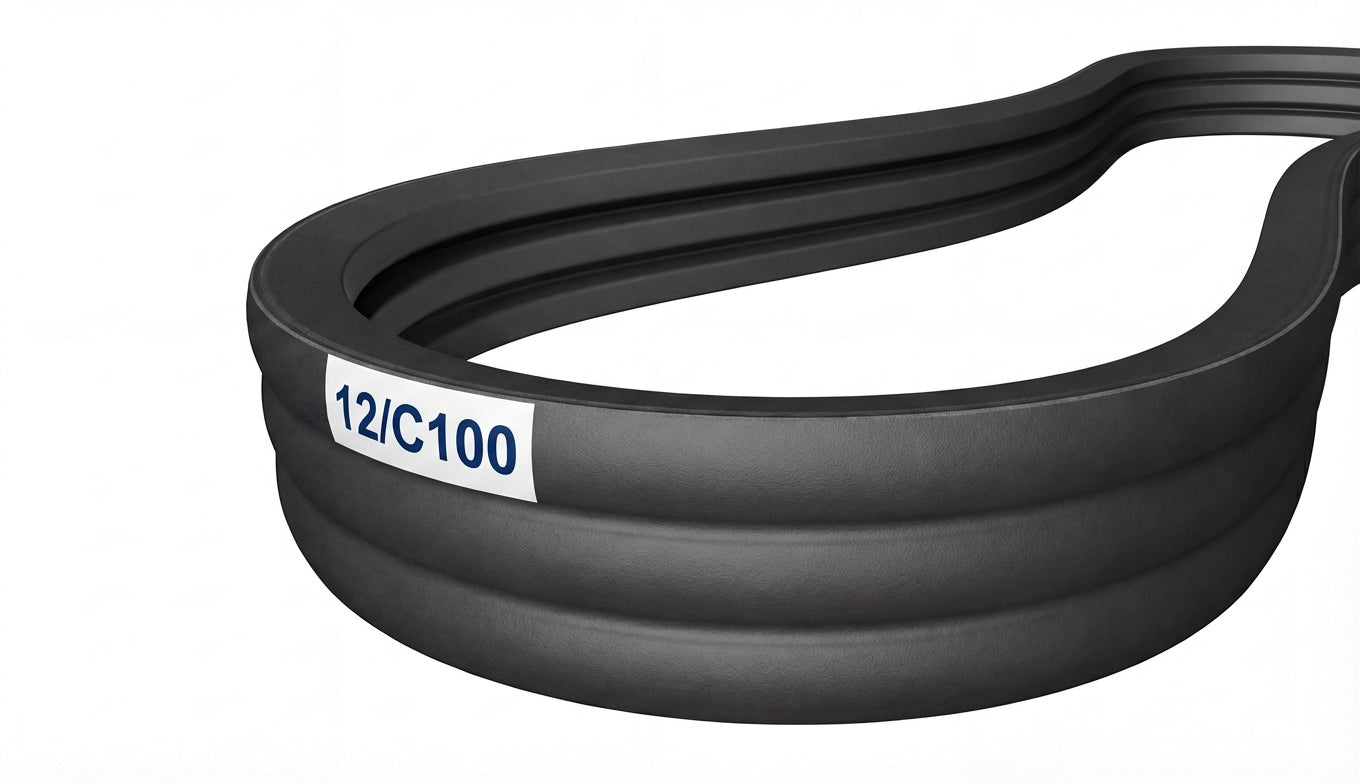

The 12/C100 is a factory-joined 12-band C banded belt assembly measuring 10.83" wide x 102.9" long, featuring oil and heat resistant rubber construction.

SKU: 1215711

$438.66

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	12/C100
Top Width	10.83 in / 275.08 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	100.0 in / 2540.0 mm
Outside Length	102.9 in / 2613.7 mm
Effective Length	102.2 in
Min Sheave Diameter	9.0 in / 228.6 mm
Ribs	12
