The BX47 is a cogged (notched) V-belt measuring 0.656" wide x 48.8" long, offering improved flexibility around smaller pulleys.

BX47 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 48.8" (1239.5mm)
• Inside Length: 47" (1193.8mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by BX47

• 7540221
• LESCO 18353

The BX47 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The BX48 is a cogged (notched) V-belt measuring 0.656" wide x 49.8" long, offering improved flexibility around smaller pulleys.

BX48 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 49.8" (1264.9mm)
• Inside Length: 48" (1219.2mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by BX48

• 36806

The BX48 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The BX49 is a cogged (notched) V-belt measuring 0.656" wide x 50.8" long, offering improved flexibility around smaller pulleys.

BX49 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 50.8" (1290.3mm)
• Inside Length: 49" (1244.6mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by BX49

• JOHN DEERE PT12668

The BX49 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

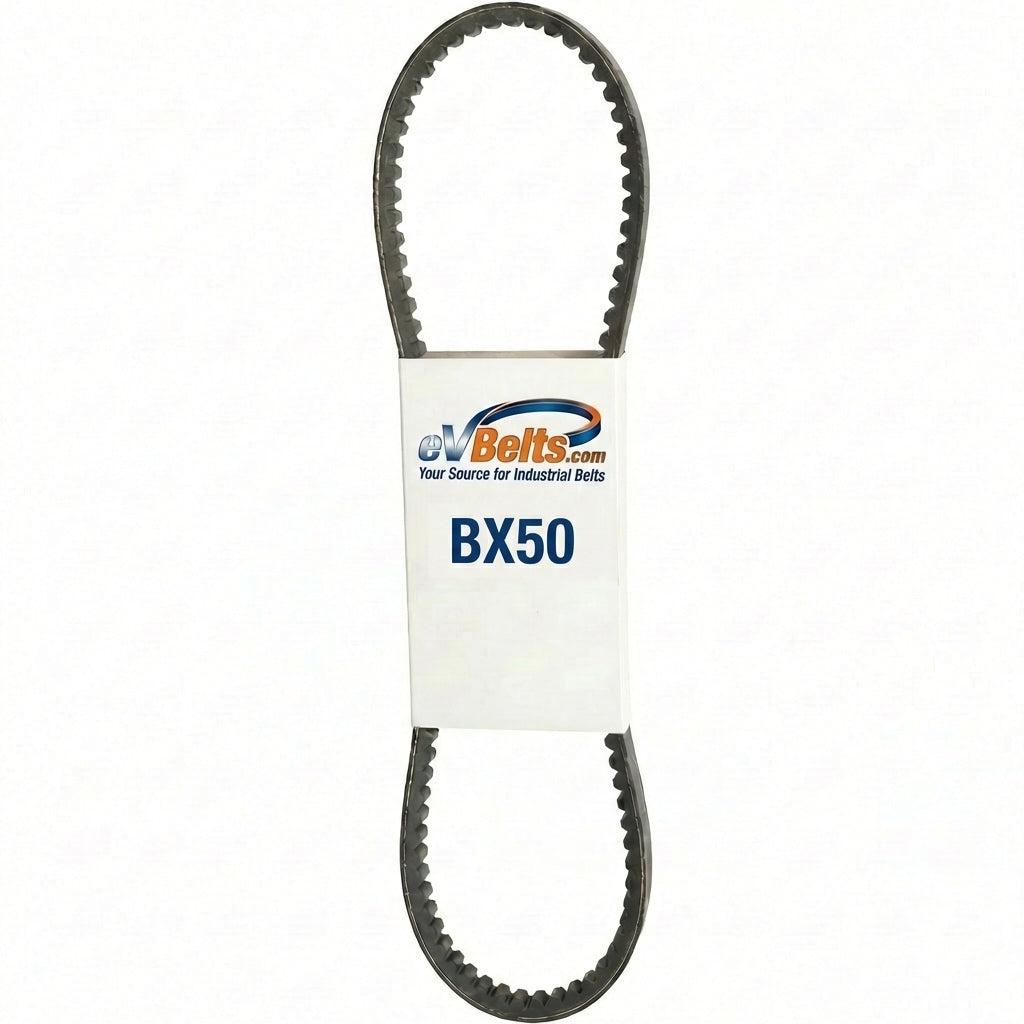

The BX50 is a cogged (notched) V-belt measuring 0.656" wide x 51.8" long, offering improved flexibility around smaller pulleys.

BX50 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 51.8" (1315.7mm)
• Inside Length: 50" (1270mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by BX50

• 7540144

The BX50 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The BX51 is a cogged (notched) V-belt measuring 0.656" wide x 52.8" long, offering improved flexibility around smaller pulleys.

BX51 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 52.8" (1341.1mm)
• Inside Length: 51" (1295.4mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by BX51

• 105122
• 1835R
• 48285

The BX51 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The BX52 is a cogged (notched) V-belt measuring 0.656" wide x 53.8" long, offering improved flexibility around smaller pulleys.

BX52 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 53.8" (1366.5mm)
• Inside Length: 52" (1320.8mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched

The BX52 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3/BX50 is a factory-joined 3-band BX banded belt assembly measuring 2.028" wide x 51.8" long, offering improved flexibility around smaller pulleys.

3/BX50 Specifications

• Top Width: 2.028" (51.51mm)
• Outside Length: 51.8" (1315.7mm)
• Inside Length: 50" (1270mm)
• Min Pulley Diameter: 4"
• Profile: Cogged/Notched
• Configuration: 3-Band Set

The 3/BX50 banded belt assembly ensures synchronized operation and even load distribution across all grooves.
