The 5L500 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 50" long, featuring oil and heat resistant rubber construction.

5L500 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 50" (1270mm)
• Inside Length: 47" (1193.8mm)
• Min Pulley Diameter: 2.5"

OEM Part Numbers Replaced by 5L500

• COLUMBIA PRODUCTS 754138

The 5L500 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L510 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 51" long, featuring oil and heat resistant rubber construction.

5L510 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 51" (1295.4mm)
• Inside Length: 48" (1219.2mm)
• Min Pulley Diameter: 2.5"

OEM Part Numbers Replaced by 5L510

• 7540188

The 5L510 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

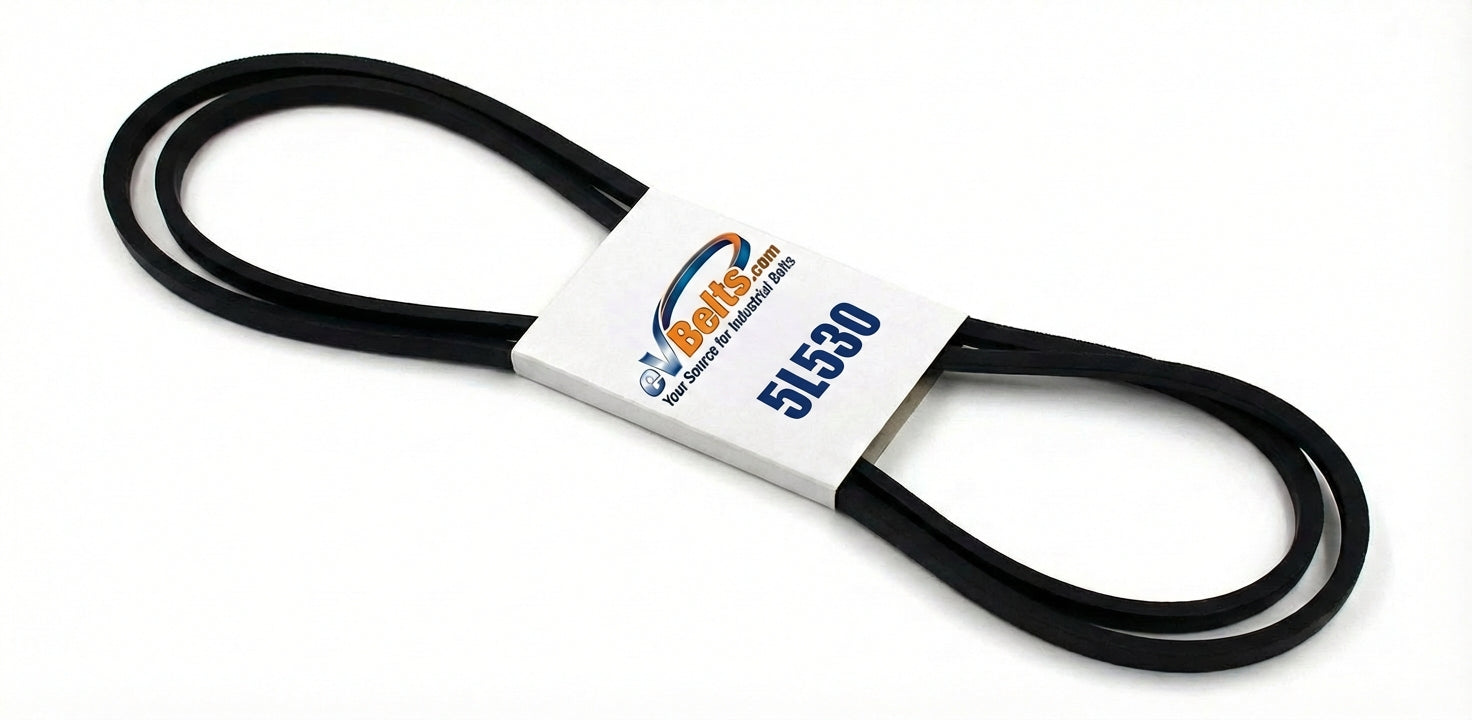

The 5L530 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 53" long, featuring oil and heat resistant rubber construction.

5L530 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 53" (1346.2mm)
• Inside Length: 50" (1270mm)
• Min Pulley Diameter: 2.5"

The 5L530 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L520 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 52" long, featuring oil and heat resistant rubber construction.

5L520 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 52" (1320.8mm)
• Inside Length: 49" (1244.6mm)
• Min Pulley Diameter: 2.5"

The 5L520 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

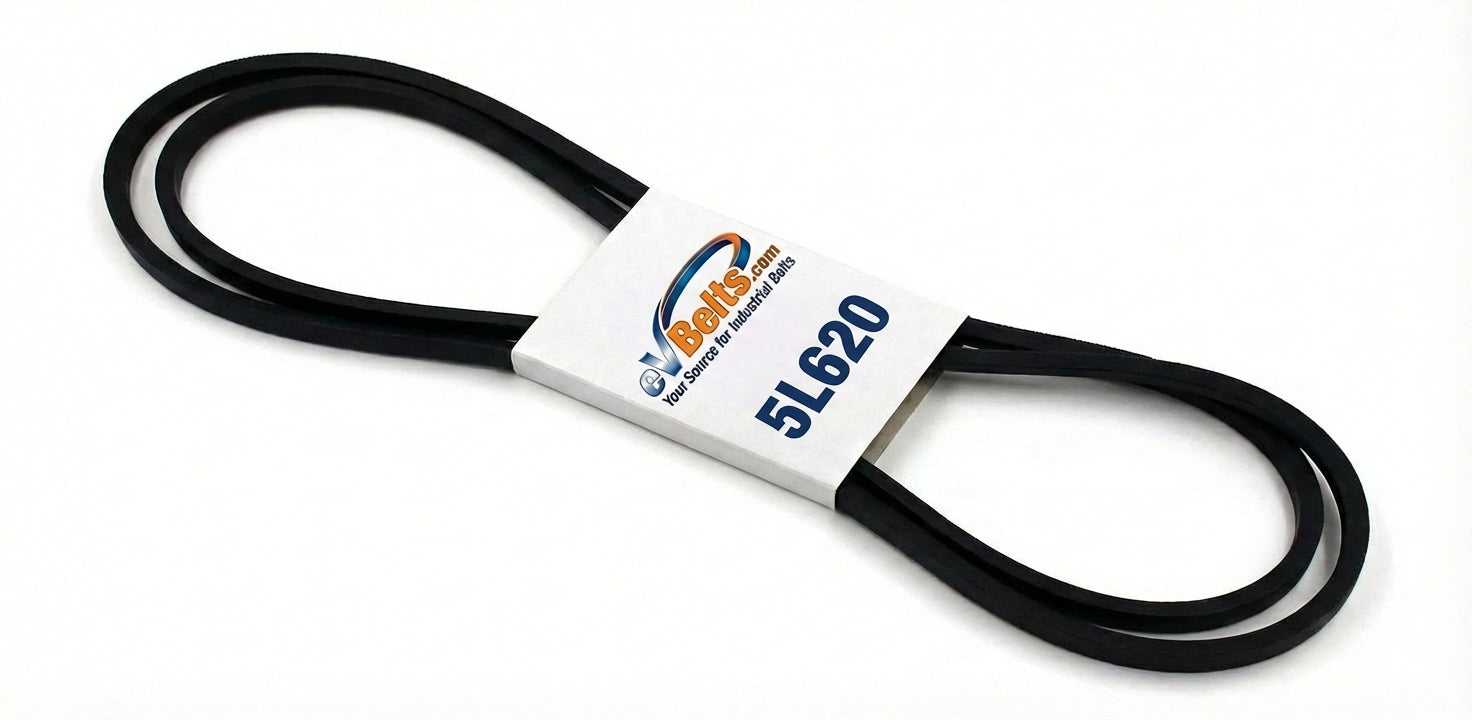

The 5L620 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 62" long, featuring oil and heat resistant rubber construction.

5L620 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 62" (1574.8mm)
• Inside Length: 59" (1498.6mm)
• Min Pulley Diameter: 2.5"

The 5L620 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L580 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 58" long, featuring oil and heat resistant rubber construction.

5L580 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 58" (1473.2mm)
• Inside Length: 55" (1397mm)
• Min Pulley Diameter: 2.5"

The 5L580 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L690 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 69" long, featuring oil and heat resistant rubber construction.

5L690 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 69" (1752.6mm)
• Inside Length: 66" (1676.4mm)
• Min Pulley Diameter: 2.5"

OEM Part Numbers Replaced by 5L690

• DYNAMARK 39456
• GAMBLE SKOGMO 39456
• NOMA 39456

The 5L690 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L700 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 70" long, featuring oil and heat resistant rubber construction.

5L700 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 70" (1778mm)
• Inside Length: 67" (1701.8mm)
• Min Pulley Diameter: 2.5"

The 5L700 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L710 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 71" long, featuring oil and heat resistant rubber construction.

5L710 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 71" (1803.4mm)
• Inside Length: 68" (1727.2mm)
• Min Pulley Diameter: 2.5"

The 5L710 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L750 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 75" long, featuring oil and heat resistant rubber construction.

5L750 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 75" (1905mm)
• Inside Length: 72" (1828.8mm)
• Min Pulley Diameter: 2.5"

The 5L750 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

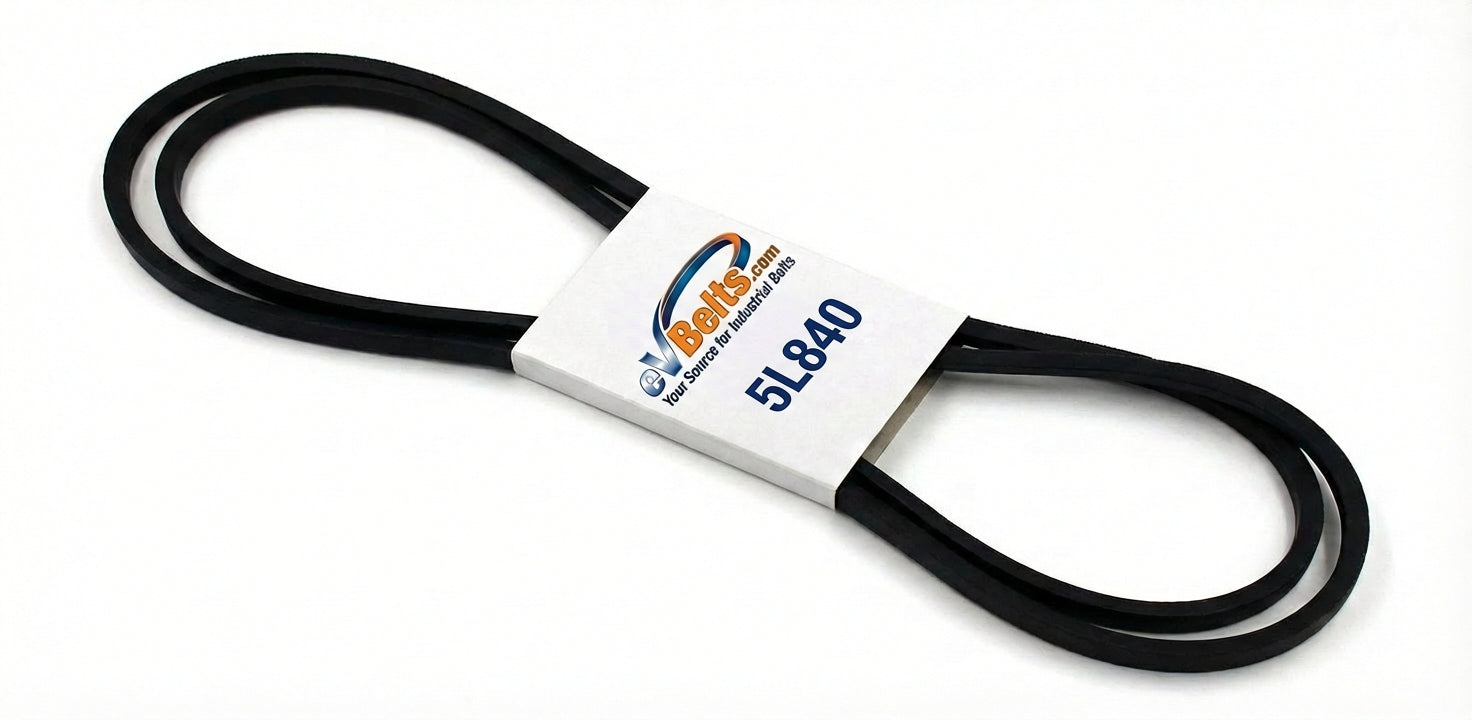

The 5L840 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 84" long, featuring oil and heat resistant rubber construction.

5L840 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 84" (2133.6mm)
• Inside Length: 81" (2057.4mm)
• Min Pulley Diameter: 2.5"

The 5L840 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L860 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 86" long, featuring oil and heat resistant rubber construction.

5L860 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 86" (2184.4mm)
• Inside Length: 83" (2108.2mm)
• Min Pulley Diameter: 2.5"

The 5L860 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The B23 is a premium Classical V-belt measuring 0.656" wide x 24.8" long, featuring oil and heat resistant rubber construction.

B23 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 24.8" (629.9mm)
• Inside Length: 23" (584.2mm)
• Min Pulley Diameter: 5.4"

The B23 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.
