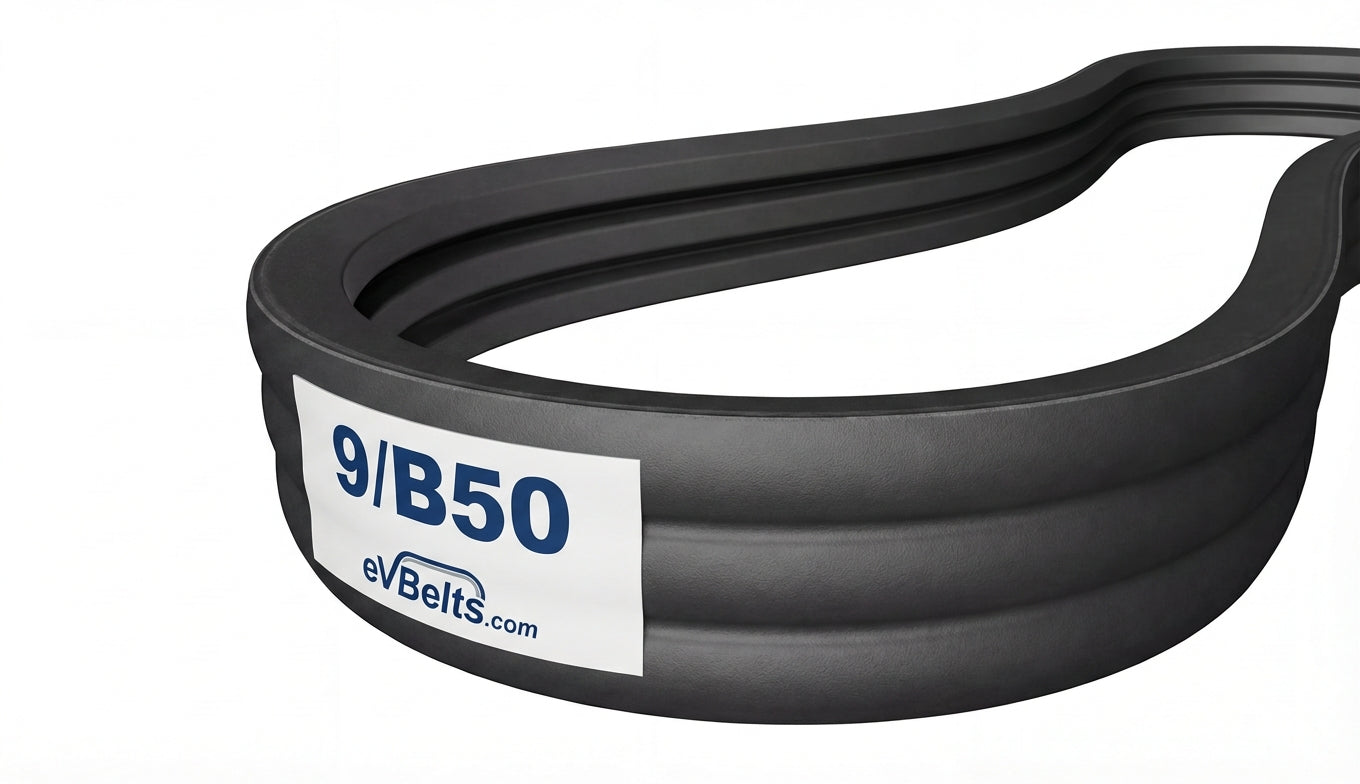

The 9/B50 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 51.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215518

$101.40

0 In Stock

In stock and ready to ship

Estimated delivery between June 25 and June 27.

Technical Specifications
Part Number 9/B50
Top Width 6.144 in / 156.06 mm
Belt Depth 0.4375 in / 11.11 mm
Inside Length 50.0 in / 1270.0 mm
Outside Length 51.8 in / 1315.7 mm
Effective Length 51.4 in
Min Sheave Diameter 5.4 in / 137.2 mm
Ribs 9
