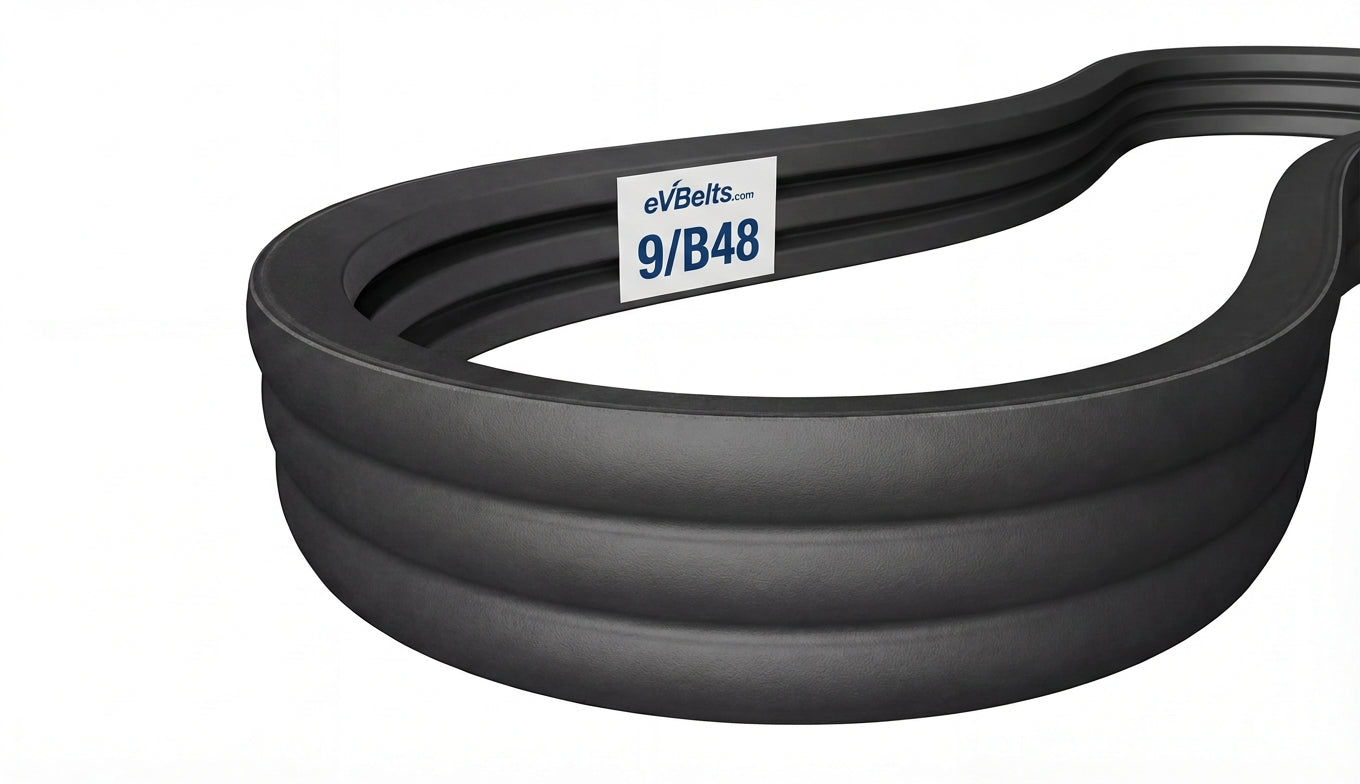

The 9/B48 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 49.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215515

$98.43

0 In Stock

In stock and ready to ship

Estimated delivery between June 25 and June 27.

Technical Specifications
Part Number 9/B48
Top Width 6.144 in / 156.06 mm
Belt Depth 0.4375 in / 11.11 mm
Inside Length 48.0 in / 1219.2 mm
Outside Length 49.8 in / 1264.9 mm
Effective Length 49.4 in
Min Sheave Diameter 5.4 in / 137.2 mm
Ribs 9
