9/B124

Top Width: 6.144" (156.06mm)
Outside Length: 125.8" (3195.3mm)
Inside Length: 124" (3149.6mm)
Min Pulley Diameter: 5.4"
Configuration: 9-Band Set

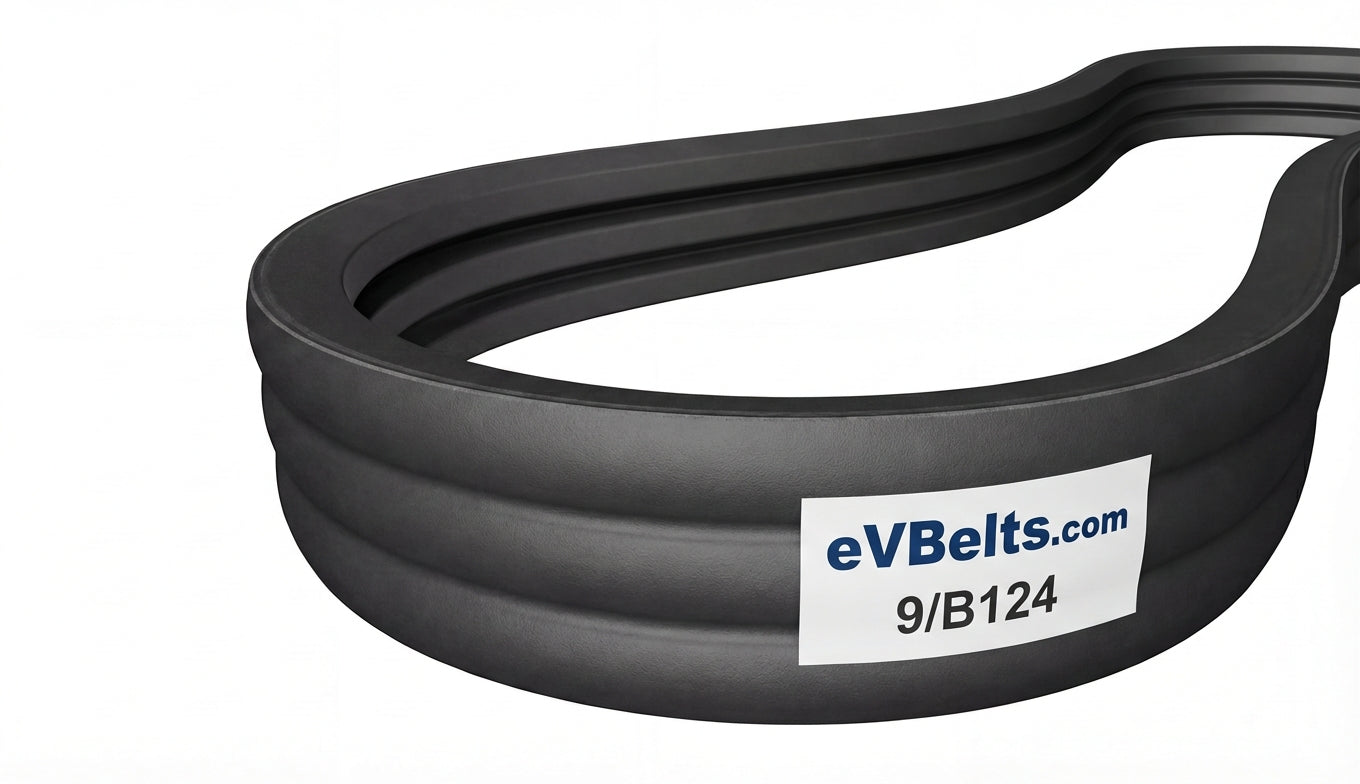

The 9/B124 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 125.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215576

$216.64

0 In Stock

In stock and ready to ship

Estimated delivery between June 25 and June 27.

Technical Specifications

Part Number	9/B124
Top Width	6.144 in / 156.06 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	124.0 in / 3149.6 mm
Outside Length	125.8 in / 3195.3 mm
Effective Length	125.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	9
