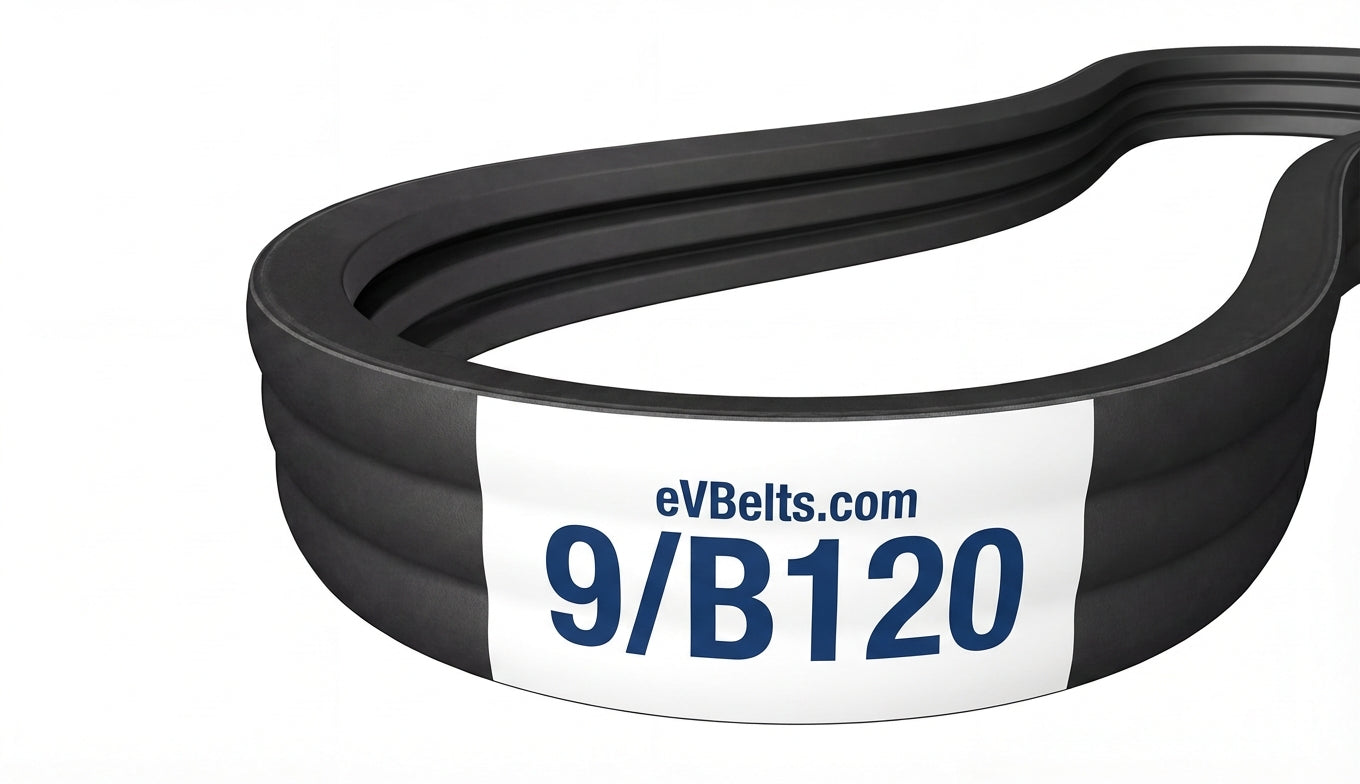

9/B120

Top Width: 6.144" (156.06mm)
Outside Length: 121.8" (3093.7mm)
Inside Length: 120" (3048mm)
Min Pulley Diameter: 5.4"
Configuration: 9-Band Set

The 9/B120 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 121.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215573

$209.31

0 In Stock

In stock and ready to ship

Estimated delivery between June 25 and June 27.

Technical Specifications

Part Number	9/B120
Top Width	6.144 in / 156.06 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	120.0 in / 3048.0 mm
Outside Length	121.8 in / 3093.7 mm
Effective Length	121.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	9
