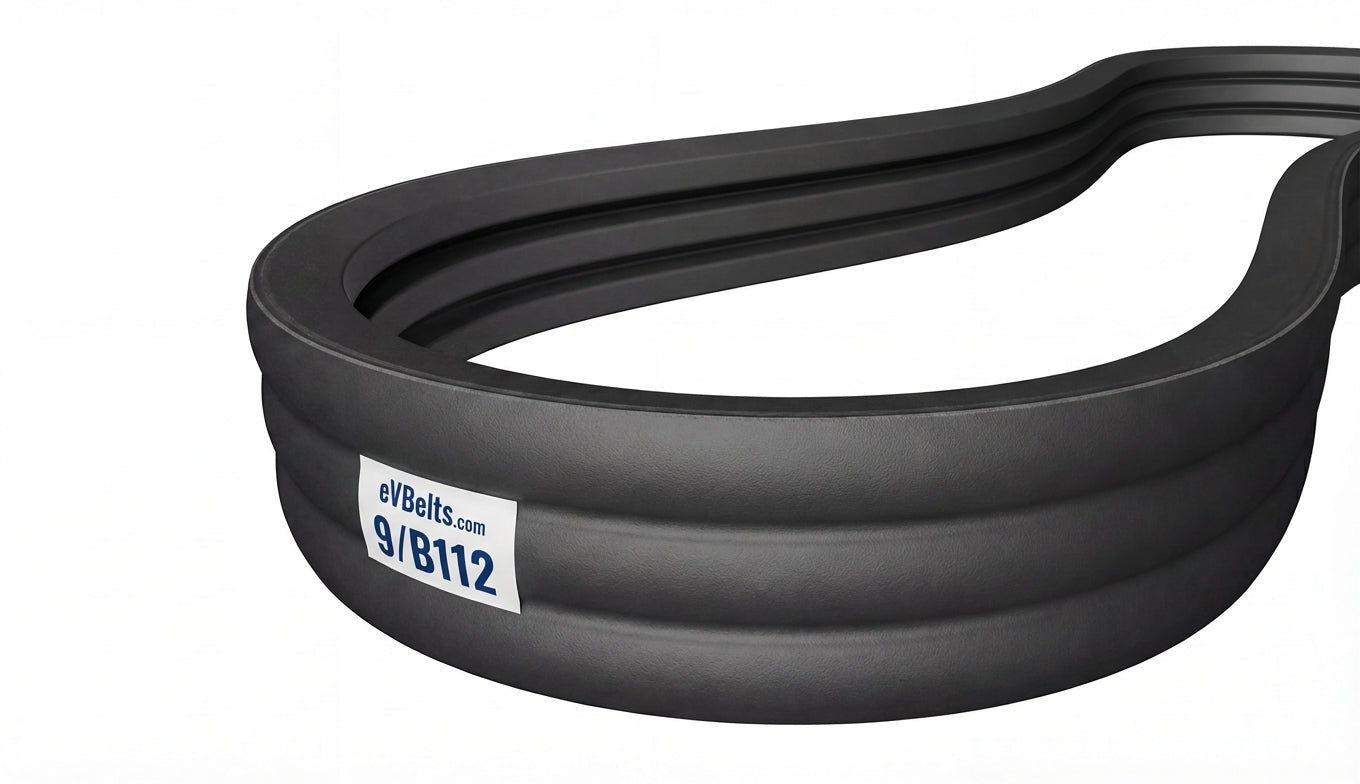

9/B112

Top Width: 6.144" (156.06mm)
Outside Length: 113.8" (2890.5mm)
Inside Length: 112" (2844.8mm)
Min Pulley Diameter: 5.4"
Configuration: 9-Band Set

The 9/B112 is a factory-joined 9-band B banded belt assembly measuring 6.144" wide x 113.8" long, featuring oil and heat resistant rubber construction.

SKU: 1215568

$198.34

0 In Stock

In stock and ready to ship

Estimated delivery between June 25 and June 27.

Technical Specifications

Part Number	9/B112
Top Width	6.144 in / 156.06 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	112.0 in / 2844.8 mm
Outside Length	113.8 in / 2890.5 mm
Effective Length	113.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	9
